Model
KitchenAid KERK201TSS0
30" Free Standing Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KERK201TSS030" Free Standing Electric Range
6 diagrams122 parts
Parts Sections (6)

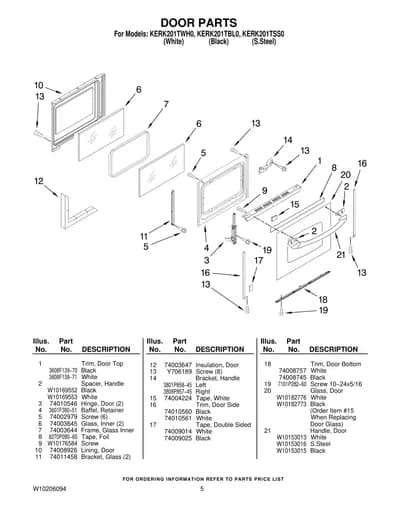

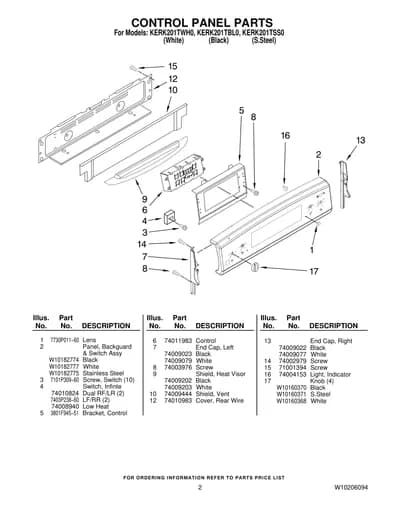

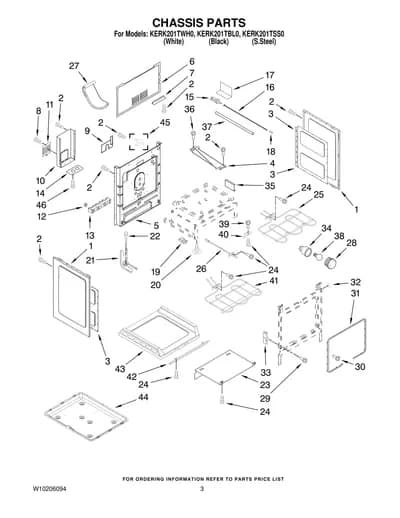

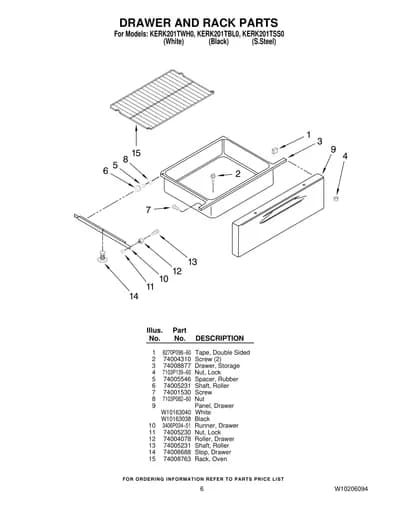

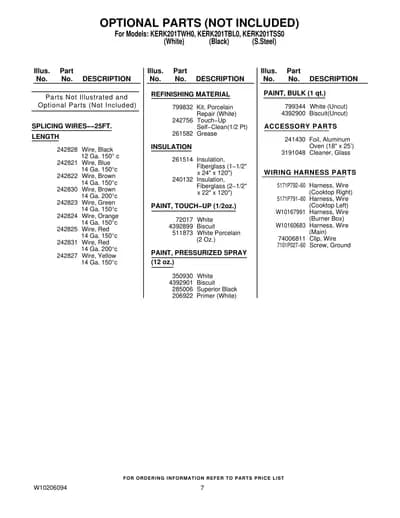

Diagram

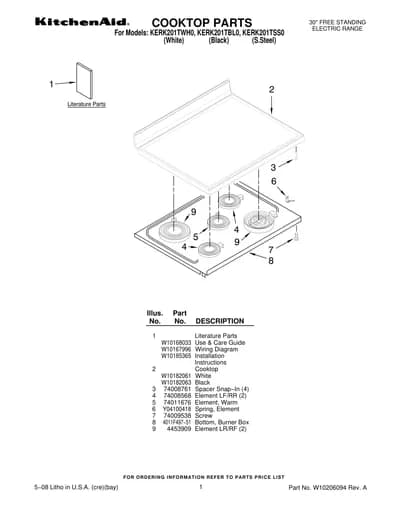

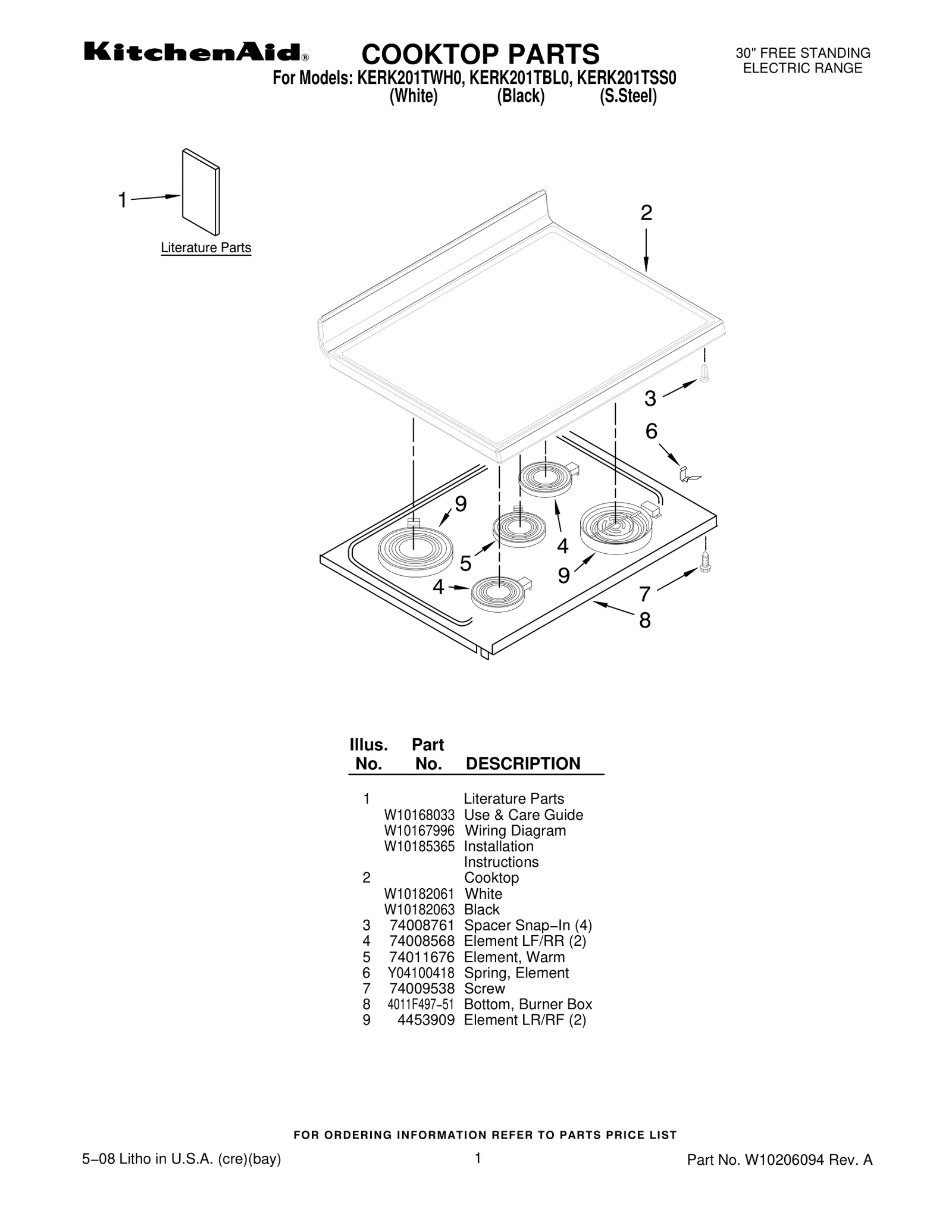

COOKTOP PARTS
Parts in COOKTOP PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10168033 Use & Care Guide | - |
| 1 | – | W10167996 Wiring Diagram | - |
| 1 | – | W10185365 Installation Instructions | - |
| 2 | – | W10182061 Cooktop — White | - |
| 2 | – | W10182063 Cooktop — Black | - |
| 3 |  | Spacer Snap−In (4) | - |
| 4 |  | W10823711replaces 74008568 Element LF/RR (2) | $92.55 Part Advantage |
| 5 |  | Element, Warm | - |
| 6 |  | 74007134replaces Y04100418 Spring, Element | $3.44 RepairClinic |
| 7 | | Screw | $23.61 ApplianceParts Pro |
| 8 | – | N/S 4011F497−51 Bottom, Burner Box | - |
| 9 |  | W10823692replaces 4453909 Element LR/RF (2) | $119.42 Parts Dr |
