KitchenAid KERS205TSS0
30" Free Standing Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KERS205TSS030" Free Standing Electric Range
6 diagrams128 parts
Parts Sections (6)

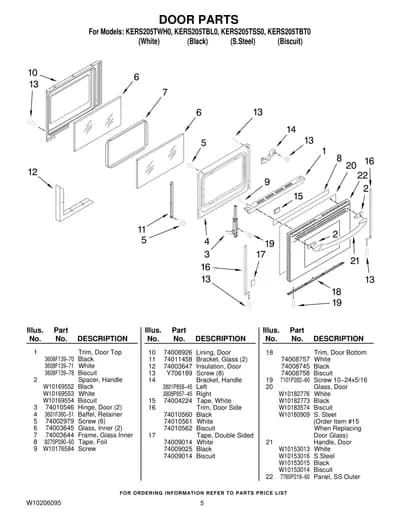

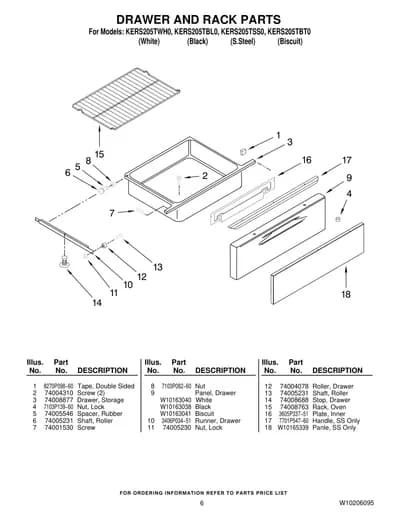

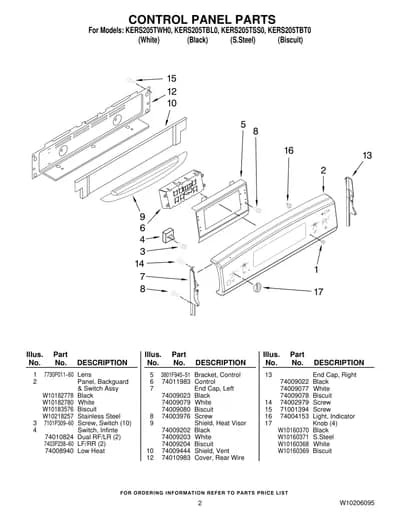

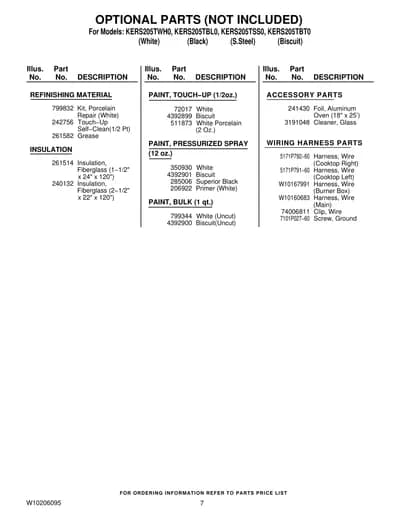

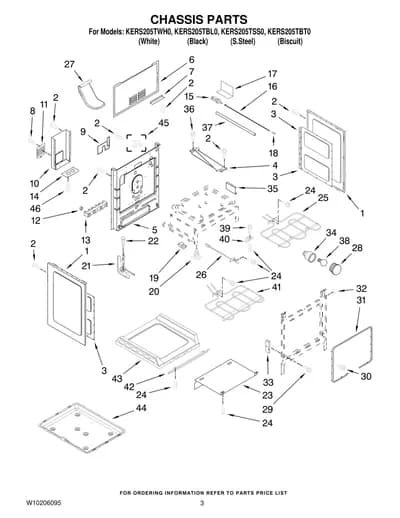

Diagram

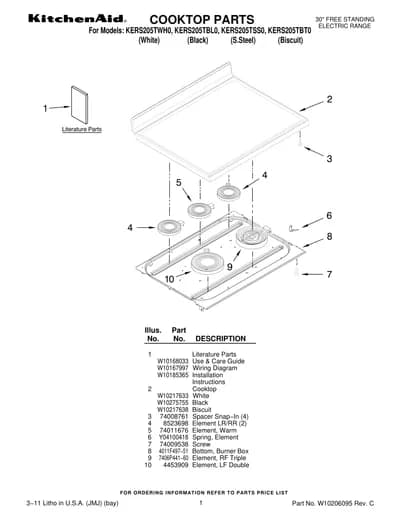

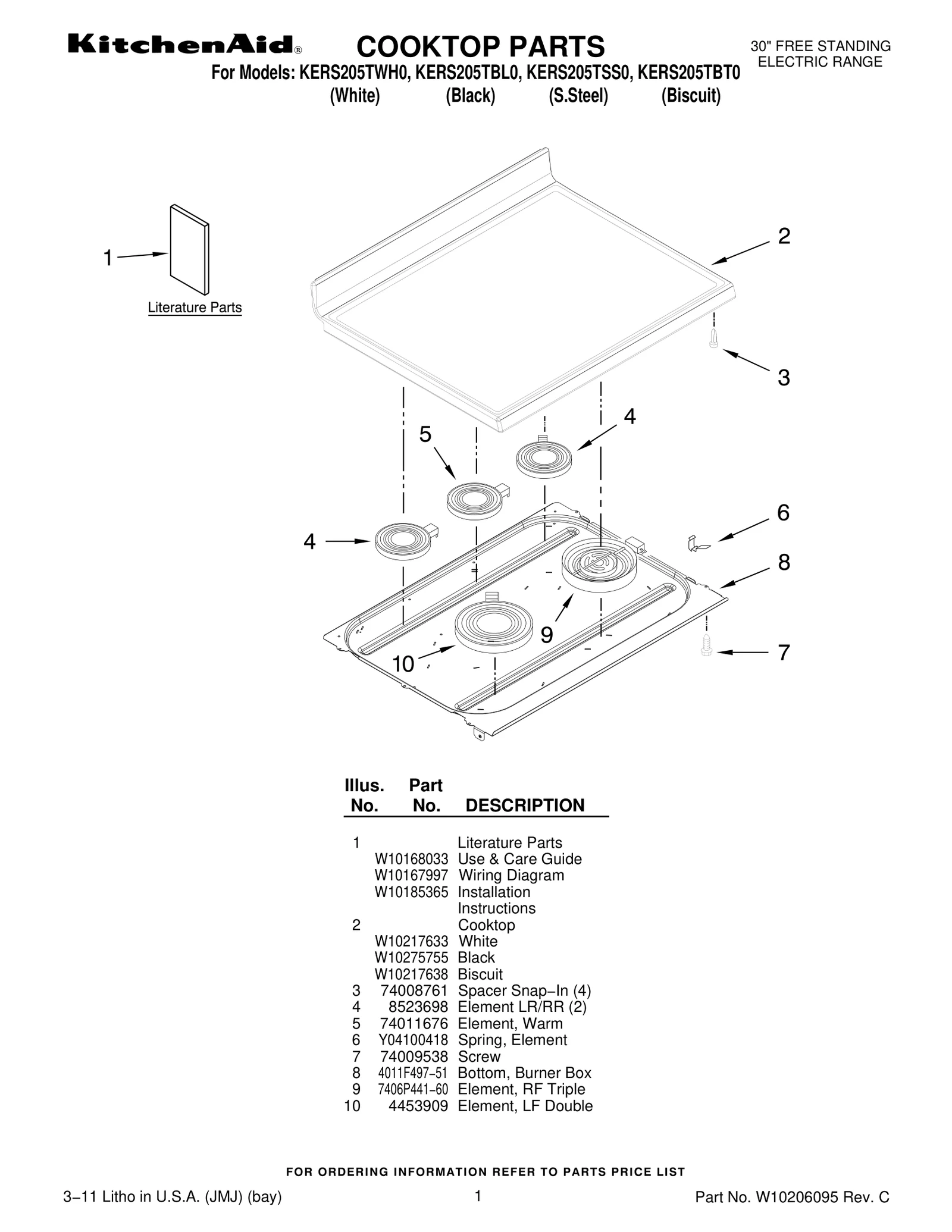

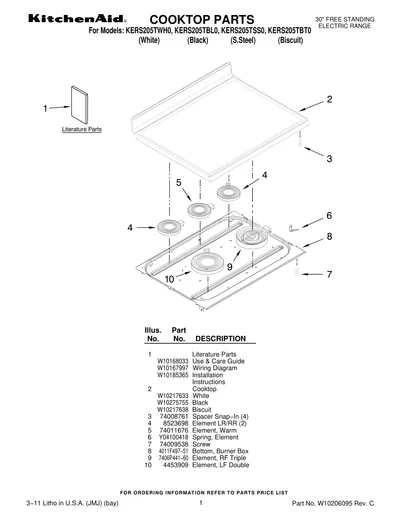

COOKTOP PARTS
Parts in COOKTOP PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10168033 Use & Care Guide | - |
| 1 | – | W10167997 Wiring Diagram | - |
| 1 | – | W10185365 Installation Instructions | - |
| 2 | – | W10217633 Cooktop — White | - |
| 2 |  | Cooktop — Black | - |
| 2 | – | W10217638 Cooktop — Biscuit | - |
| 3 |  | Spacer Snap−In (4) | - |
| 4 |  | W10823711replaces 8523698 Element LR/RR (2) | $92.55 Part Advantage |
| 5 | | Element, Warm | - |

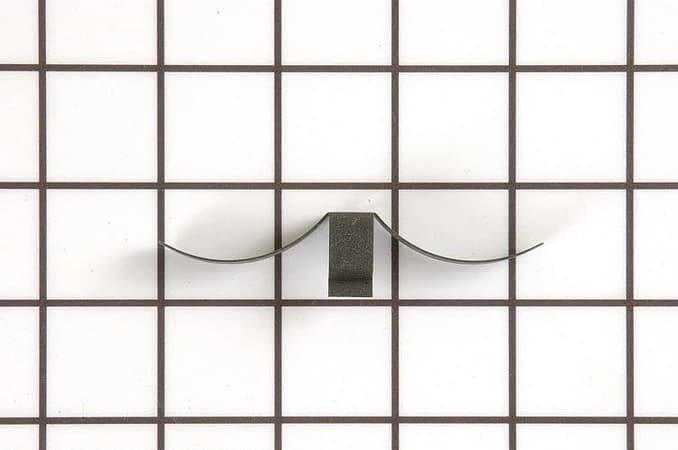

| 6 |  | 74007134replaces Y04100418 Spring, Element | $3.44 RepairClinic |
| 7 | | Screw | $23.61 ApplianceParts Pro |
| 8 | – | N/S 4011F497−51 Bottom, Burner Box | - |
| 9 | – | N/S 7406P441−60 Element, RF Triple | - |
| 10 |  | W10823692replaces 4453909 Element, LF Double | $119.42 Parts Dr |
