Model
KitchenAid KEWS105SSS00
30" Electric Built−In Warming Drawer
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KEWS105SSS0030" Electric Built−In Warming Drawer
2 diagrams46 parts
Parts Sections (2)
Diagram

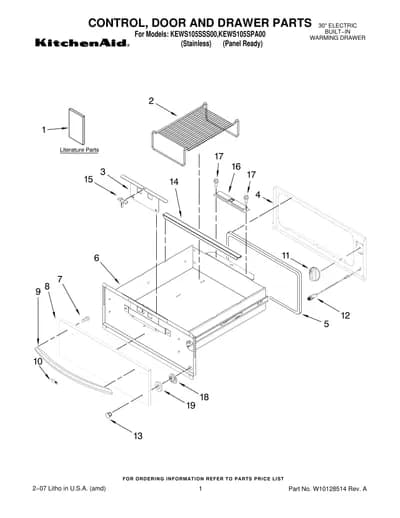

CONTROL, DOOR AND DRAWER PARTS
Parts in CONTROL, DOOR AND DRAWER PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10064720 Tech Sheet | - |
| 1 | – | 9763141 Use & Care Guide | - |
| 1 | – | 9763140 Installation Instructions | - |
| 2 |  | Rack, Warming | - |
| 3 |  | W10162376replaces W10111385 Slide, Vent | - |
| 4 | – | W10111383 Panel, Front | - |
| 5 | – | 9762315 Gasket, Drawer | - |
| 6 |  | WP9763646replaces 9763646 Drawer Assembly | - |
| 7 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 8 |  | 9762327NLA Door, Panel Stainless Only | Discontinued |
| 9 | | 8303774SSNLA Handle, Drawer Stainless Only | Discontinued |
| 10 | | 9763444SSNLA Badge Stainless Only | Discontinued |
| 11 |  | W10854530replaces 4455984 Knob, Thermostat | $7.98 Part Advantage |
| 12 | | Light, Indicator | - |
| 13 |  | Lens, Light — Stainless | - |
| 13 |  | Custom Wood, Panel Only | - |
| 14 |  | W10409138replaces 9762339 Rail, Pan (2) | - |
| 15 |  | Grip, Vent | - |
| 16 |  | Magnet | - |
| 17 |  | WP3196557replaces 3196537 Screw (2) | $2.30 Part Advantage |
| 18 |  | Clip, Lens Retainer | - |
| 19 |  | Spacer, Lens | - |
