Model
KitchenAid KFBU271TSS00
Serving Cart
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KFBU271TSS00Serving Cart
1 diagram22 parts
Parts Sections (1)
Diagram

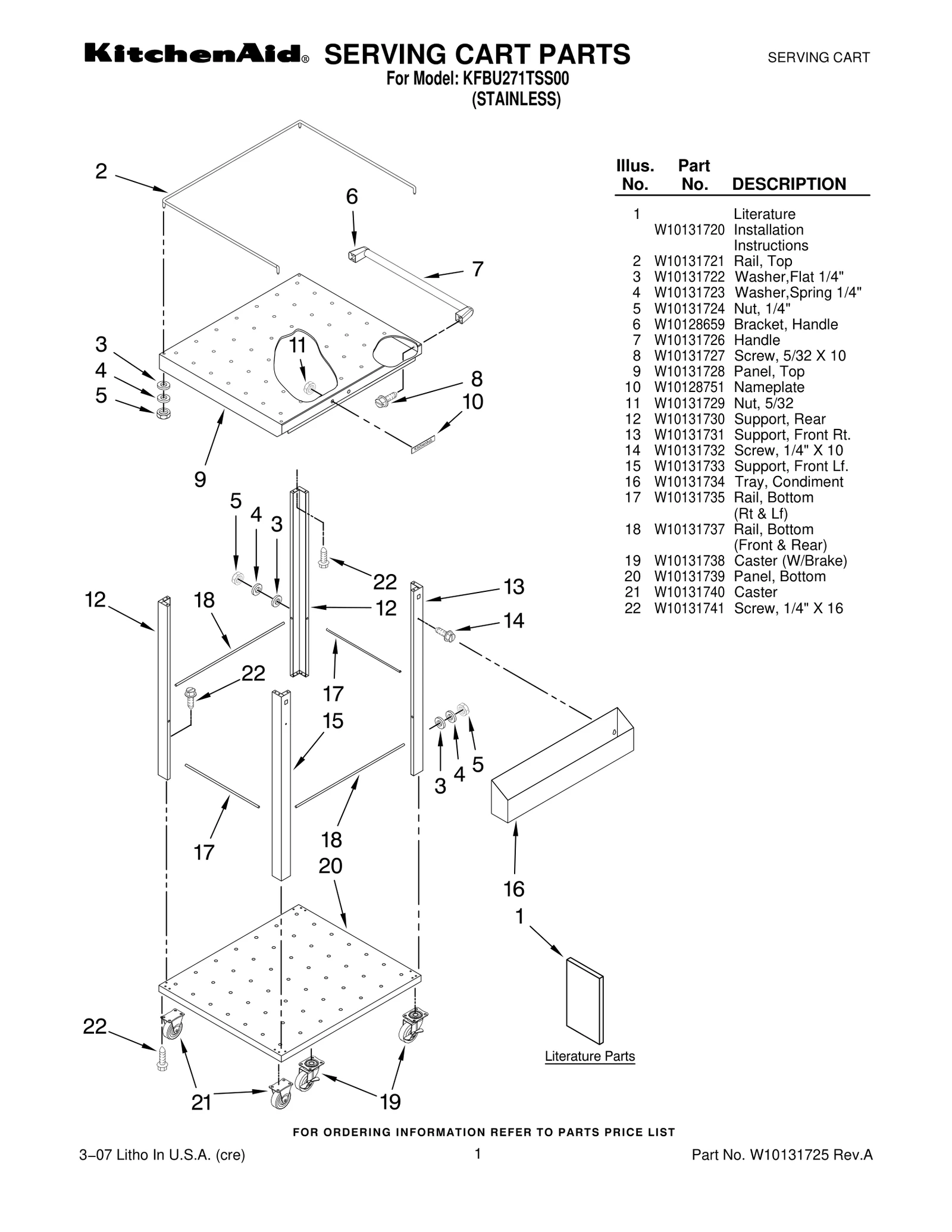

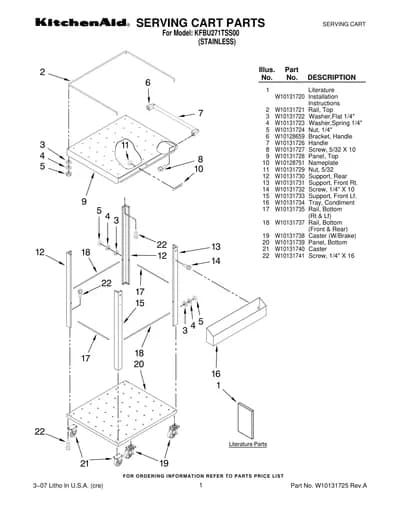

SERVING CART PARTS
Parts in SERVING CART PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10131720 Installation | - |
| 2 | – | W10131721 Rail, Top | - |
| 3 | – | W10131722 Washer,Flat 1/4" | - |
| 4 | – | W10131723 Washer,Spring 1/4" | - |
| 5 | – | W10131724 Nut, 1/4" | - |
| 6 | – | W10128659 Bracket, Handle | - |
| 7 | – | W10131726 Handle | - |
| 8 | – | W10131727 Screw, 5/32 X 10 | - |
| 9 | – | W10131728 Panel, Top | - |
| 10 |  | Nameplate | - |
| 11 | – | W10131729 Nut, 5/32 | - |
| 12 | – | W10131730 Support, Rear | - |
| 13 | – | W10131731 Support, Front Rt. | - |
| 14 | – | W10131732 Screw, 1/4" X 10 | - |
| 15 | – | W10131733 Support, Front Lf. | - |
| 16 | – | W10131734 Tray, Condiment | - |
| 17 | – | W10131735 Rail, Bottom | - |
| 18 | – | W10131737 Rail, Bottom | - |
| 19 | – | W10131738 Caster (W/Brake) | - |
| 20 | – | W10131739 Panel, Bottom | - |
| 21 | – | W10131740 Caster | - |
| 22 | – | W10131741 Screw, 1/4" X 16 | - |
