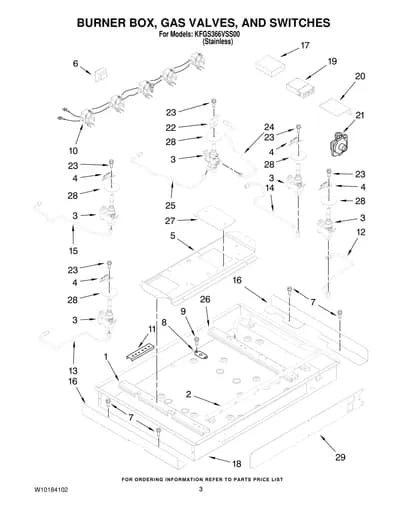

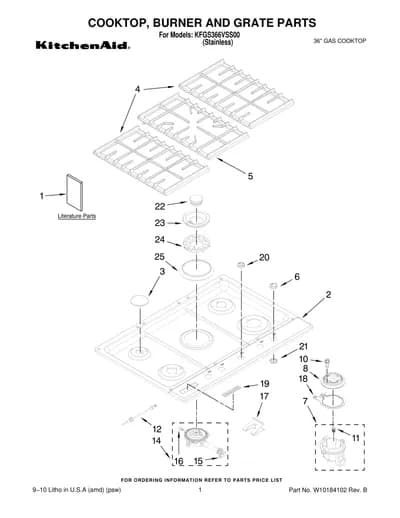

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286867 Installation Instructions | - |
| 1 | – | 8304571 Undercounter, Installation | - |
| 1 | – | 8286868 Use & Care Guide Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 1 | – | W10181980 LP Conversion Instructions | - |
| 2 |  | Cooktop | - |

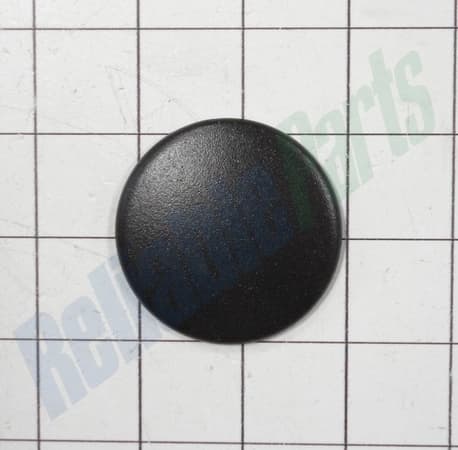

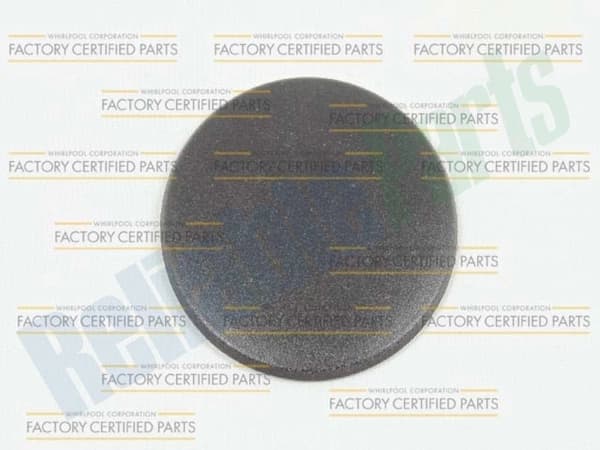

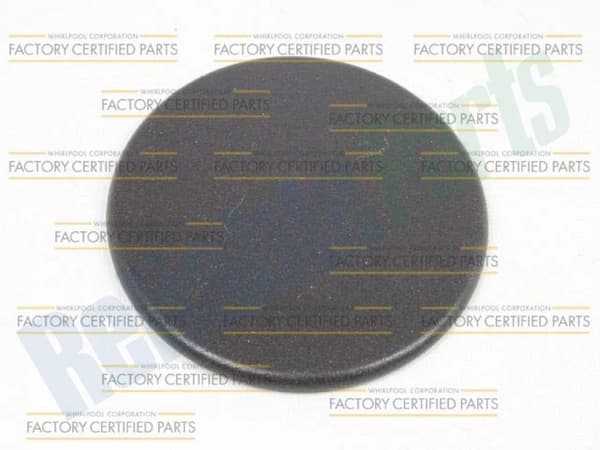

| 3 |  | WP8286816replaces 8286816 Cap, Burner — LR | $66.77 PartSelect |
| 3 |  | WP8286817replaces 8286817 Cap, Burner — RR | $53.46 Parts Dr |
| 3 |  | WP8286818replaces 8286818 RF,LF | $75.59 ApplianceParts Pro |
| 4 | | 8286662NLA Grate, Burner — Right | Discontinued |

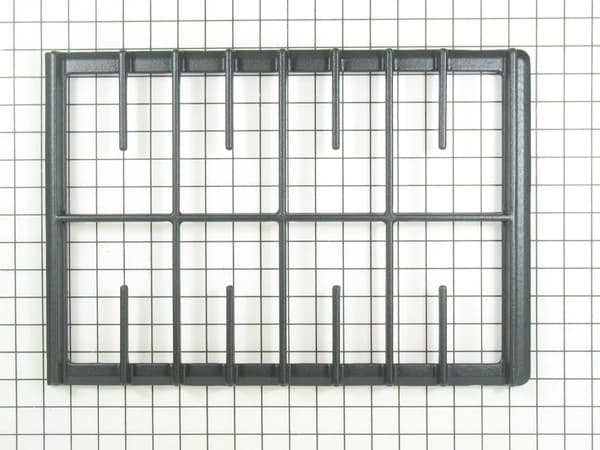

| 4 |  | WP8287314replaces 8287314 Grate, Burner — Left | $131.40 Parts Dr |
| 5 | | 8287049NLA Grate, Center | Discontinued |

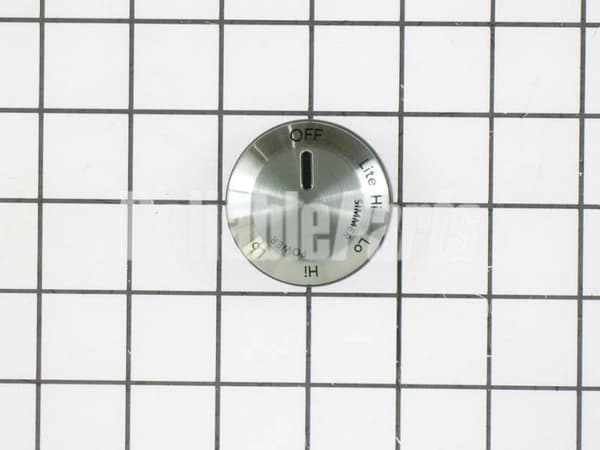

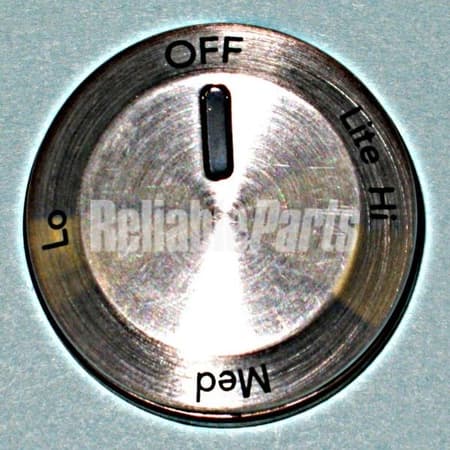

| 6 |  | WPW10132192replaces W10132192 Knob, Control | $47.07 Parts Dr |
| 7 |  | RF,LF | - |

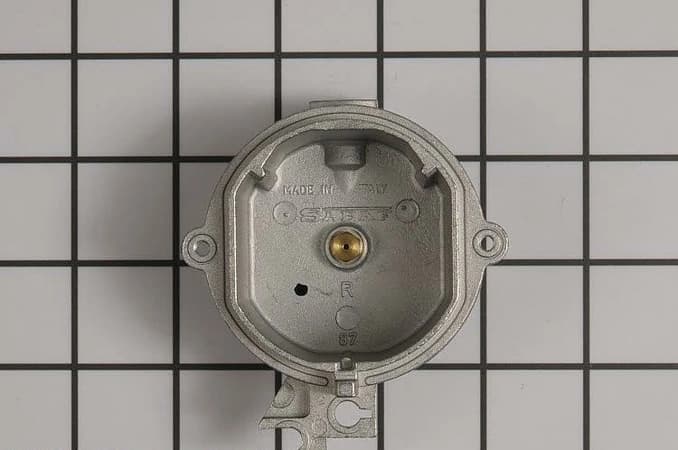

| 7 |  | Holder, Orifice — LR | - |
| 7 |  | Holder, Orifice — RR | $44.23 PartSelect |
| 8 |  | WP8286813replaces 8286813 Head, Burner — LR | $50.77 Part Advantage |
| 8 |  | WP8286814replaces 8286814 Head, Burner — RR | $46.13 Part Advantage |
| 8 |  | WP8286815replaces 8286815 RF,LF | $48.92 Part Advantage |
| 10 |  | WP8287059replaces 8287059 Screw | $2.30 Part Advantage |
| 11 |  | W10791072replaces W10151349 RF,LF | $74.31 RepairClinic |

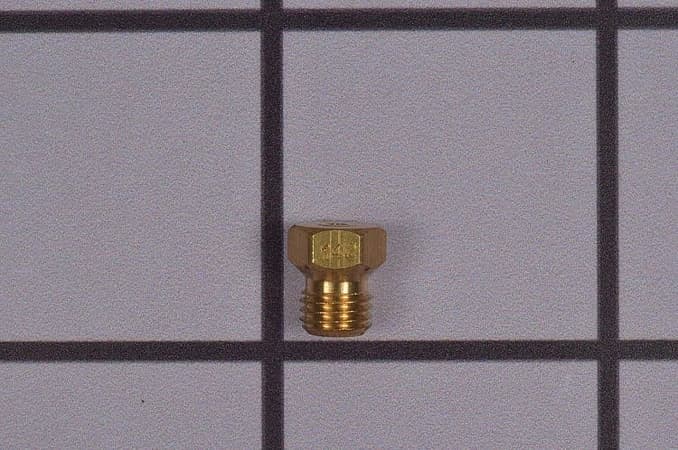

| 11 |  | W10791614replaces W10151348 Orifice — LR | - |

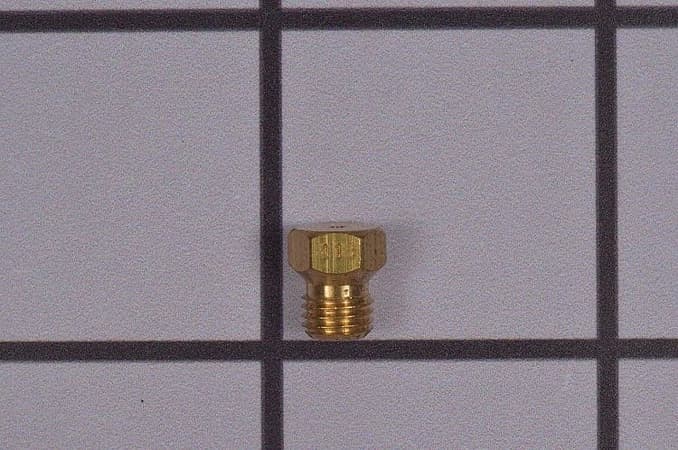

| 11 |  | Orifice — RR | $20.38 RepairClinic |

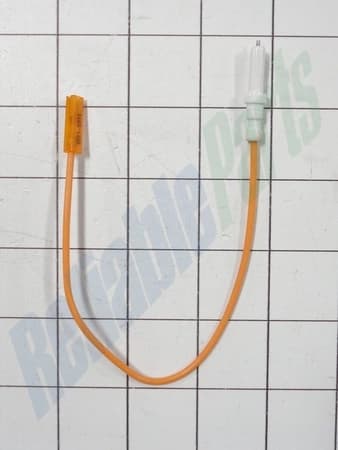

| 12 |  | WPW10560001replaces 8286722 Electrode Wiring — LF | $32.94 Parts Dr |
| 12 |  | Electrode Wiring — LR | $48.45 PartSelect |
| 12 | | 8286724NLA Electrode Wiring — RF | Discontinued |
| 12 |  | W10854967replaces 8286725 Electrode Wiring — RR | $15.72 Part Advantage |

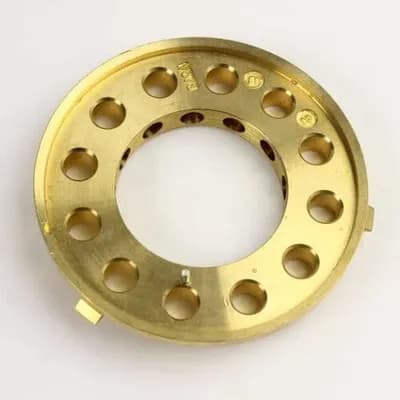

| 14 | | 8286935NLA Assembly, Burner Base | Discontinued |

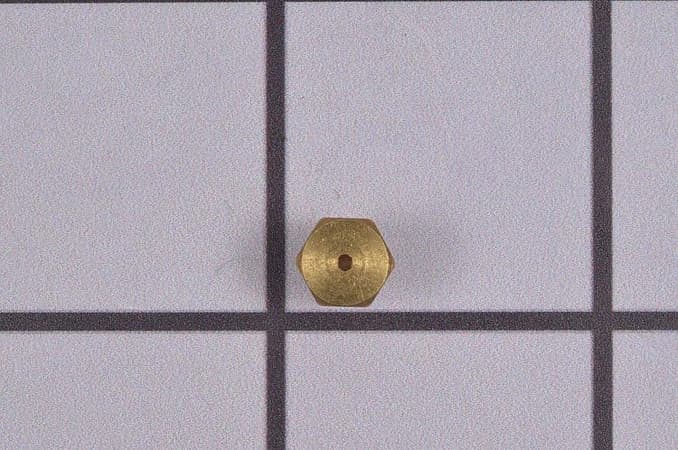

| 15 | | Orifice, External Center | - |
| 16 |  | WPW10137303replaces W10137303 Orifice, Simmer Center | - |
| 17 |  | Clip, Electrode | $25.41 Part Advantage |

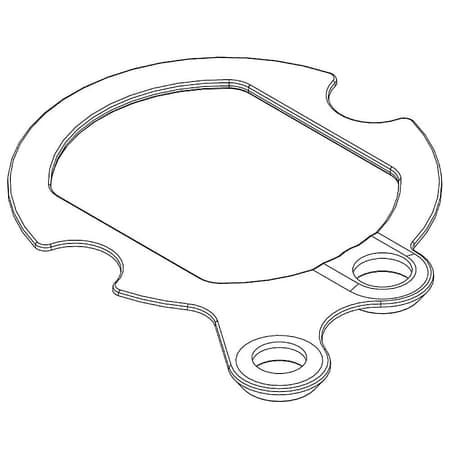

| 18 |  | Gasket, Orifice — LR | - |
| 18 | | Gasket, Orifice — RR | - |
| 18 | | RF,LF | - |
| 19 | | 8304603SSNLA Badge | Discontinued |
| 20 |  | Knob, Special Burner | $61.62 RepairClinic |
| 21 | | W10132183NLA Knob, Grommet | Discontinued |
| 22 |  | WPW10163407replaces W10163407 Spreader, Inner | $87.92 RepairClinic |
| 23 |  | WPW10153033replaces W10153033 Spreader, Outer | - |
| 24 |  | WP8287072replaces 8287072 Cross Ring, Burner | - |
| 25 | | 8287075NLA Beauty Ring, Burner | Discontinued |
