Model
KitchenAid KFGU766VSS00
36" Gas Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KFGU766VSS0036" Gas Cooktop
3 diagrams91 parts
Parts Sections (3)
Diagram

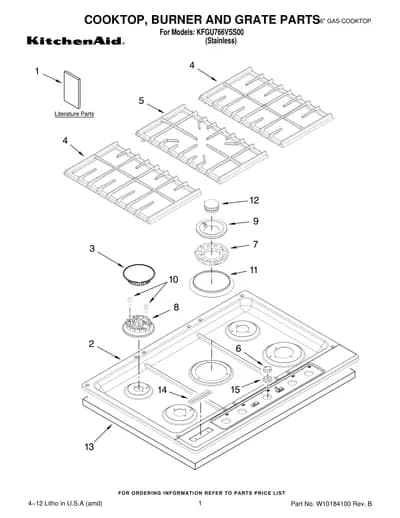

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286867 Installation Instructions | - |
| 1 | – | 8304571 Inst. Instruction Undercounter | - |
| 1 | – | 8286868 Use & Care Guide | - |
| 1 | – | 8286697 Tech Sheet Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 1 | – | 8287002 LP Conversion Instructions | - |
| 2 | | W11028280replaces W10132149 Cooktop | - |
| 3 |  | WP8286818replaces 8286818 LF,RF | $75.59 ApplianceParts Pro |
| 3 |  | WP8286817replaces 8286817 Cap, Burner — RR | $53.46 Parts Dr |
| 3 |  | WP8286816replaces 8286816 Cap, Burner — LR | $66.77 PartSelect |
| 4 |  | WP8287314replaces 8287314 Grate, Burner — Left | $131.40 Parts Dr |
| 4 | | 8286662NLA Grate, Burner — Right | Discontinued |
| 5 | | 8287049NLA Grate, Center | Discontinued |
| 6 |  | WPW10132192replaces W10132174 Knob — Standard Brnr | $47.07 Parts Dr |
| 6 |  | W10132191replaces W10132175 Knob — Special Brnr | $61.62 RepairClinic |
| 7 |  | WP8287072replaces 8287072 Cross Ring,Ctr Brn | - |
| 8 |  | WP8286815replaces 8286815 LF,RF | $48.92 Part Advantage |
| 8 |  | WP8286814replaces 8286814 Head, Burner — RR | $46.13 Part Advantage |
| 8 |  | WP8286813replaces 8286813 Head, Burner — LR | $50.77 Part Advantage |
| 9 |  | WPW10153033replaces W10153033 Outer Spreader | - |
| 10 |  | WP8287059replaces 8287059 Screw | $2.30 Part Advantage |
| 11 | | 8287075NLA Beauty Ring,CtrBrn | Discontinued |
| 12 |  | WPW10163407replaces W10163407 Inner Spreader | $87.92 RepairClinic |
| 13 | | Insulation, Cktp | - |
| 14 | | 8304603SSNLA Nameplate | Discontinued |
| 15 |  | Grommet, Knob | $15.00 PartSelect |
