Model
KitchenAid KFRS271TSS00
27" Carted Grill
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KFRS271TSS0027" Carted Grill
3 diagrams110 parts

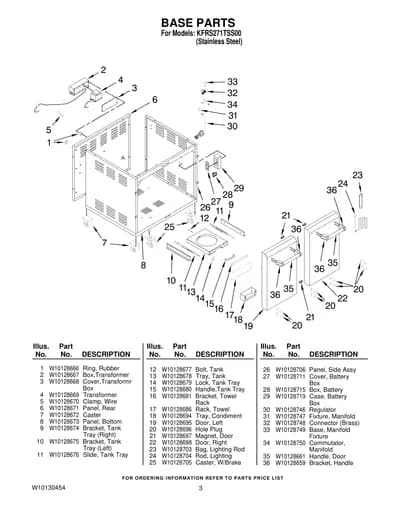

Parts Sections (3)
Diagram

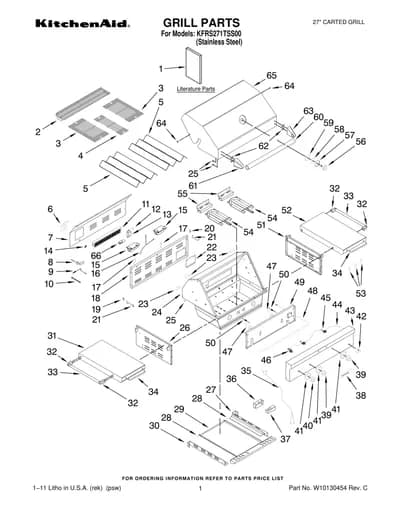

GRILL PARTS
Parts in GRILL PARTS
67 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10110724 Use & Care Guide | - |
| 1 | – | W10110730 Conversion Instr. | - |
| 2 | – | W10128611 Rack, Warming | - |
| 3 | – | W10128614 Grate, Large | - |
| 4 | – | W10128616 Grate, Small | - |
| 5 |  | W10128618NLA Plate, Sear | Discontinued |
| 6 | – | W10128619 Cover, Rear | - |
| 7 | – | W10128620 Panel, Rear | - |
| 8 | | Electrode, Rear Burner | - |
| 9 | | W10128622NLA Thermocouple, Rear,Burner | Discontinued |
| 10 | – | W10128623 Flex Tube, Rear Burner | - |
| 11 | | W10128624NLA Burner, Rear | Discontinued |
| 12 | – | W10128625 Bracket, Rear Thermocouple | - |
| 13 | – | W10128626 Cover, Rear Thermocouple | - |
| 14 | | Orifice, Rear Burner | - |
| 15 | | W10128628NLA Light, Grill | Discontinued |

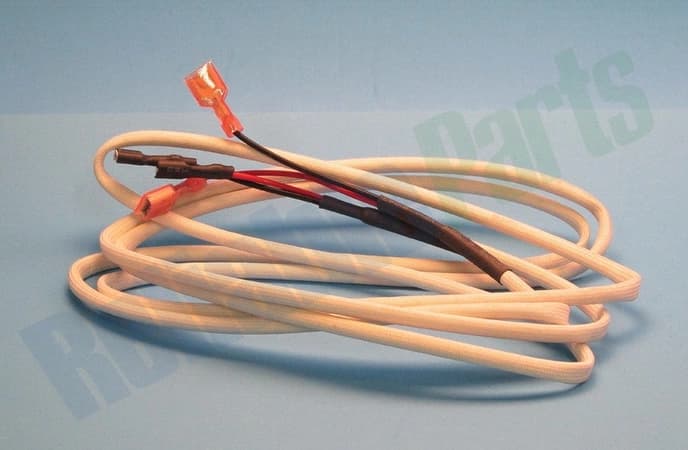

| 16 | | Harness, Wire Lights | - |
| 17 | | W10128631NLA Socket, Light | Discontinued |
| 18 | – | W10128632 Panel, Access | - |
| 19 | – | W10128634 Bracket, Panel Left | - |
| 20 | – | W10128635 Bracket, Panel Right | - |
| 21 | – | W10128636 Bracket, Warming Rack | - |
| 22 | – | W10128637 Cover, Access Panel | - |
| 23 | – | W10128638 Clip, Wire | - |
| 24 | – | W10128639 Hood Assy | - |
| 25 | – | W10128640 Hole Plug | - |
| 26 | – | W10128642 Panel, Side Left | - |
| 27 | – | W10128644 Bracket, Grease Tray (Right) | - |
| 28 | – | W10128655 Roller, Drip Tray | - |
| 29 | – | W10128656 Drip Tray Assy | - |
| 30 | – | W11286570 Bracket, Grease Tray (Left) | - |
| 31 | – | W10128658 Shelf, Side (Lf) | - |
| 32 | – | W10128659 Bracket, Handle | - |
| 33 | – | W10128660 Handle, Shelf | - |
| 34 | – | W10128662 Bar, Tool | - |
| 35 |  | Harness, Wire Light | - |
| 36 | – | W10128664 Cover, Igniter | - |

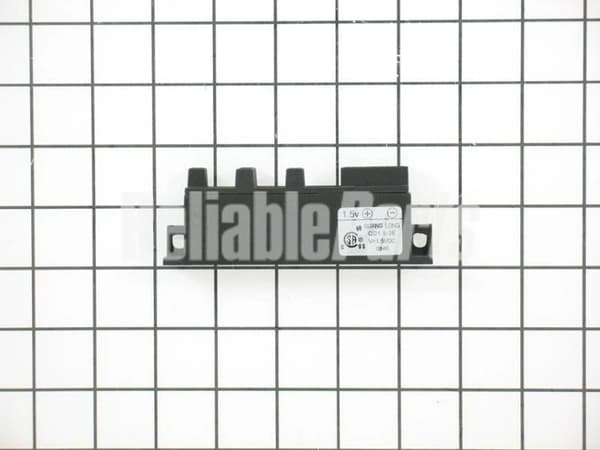

| 37 |  | Igniter | - |
| 38 | | Nameplate | - |
| 39 |  | Knob, Main Burner | $44.73 RepairClinic |
| 40 |  | WPW10128756replaces W10128756 Knob, Rear Burner | - |
| 41 | | Bezel, Knob | - |
| 42 | | Switch, Light | - |
| 43 | – | W10128762 Panel, Control | - |
| 44 | | Harness, Wire Control | - |
| 45 |  | WPW10128764replaces W10128764 Valve, Main Brnr | - |
| 46 |  | Valve, Rear Brnr | Discontinued |
| 47 | | Igniter, Main Gas | - |
| 48 | – | W10128768 Manifold | - |
| 49 | – | W10128769 Baffle, Front | - |
| 50 |  | WPW10128770replaces W10128770 Electrode, Main Burner | $8.84 Part Advantage |
| 51 | – | W10128771 Side Panel, Right | - |
| 52 | – | W10128776 Shelf, Side (Rt) | - |
| 53 | – | W10128774 Hook | - |
| 54 | | W10128775NLA Burner, Main | Discontinued |
| 55 | – | W10128776 Bracket, Main Brnr | - |
| 56 | | W10128777NLA Thermometer | Discontinued |
| 57 | | W10128779NLA Bezel, Thermometer | Discontinued |
| 58 | – | W10128780 Insulator, Thermometer(Small) | - |
| 59 | – | W10128782 Insulator, Thermometer(Large) | - |
| 60 | | Handle, Hood | - |
| 61 | – | W10128785 Endcap, Handle | - |
| 62 | – | W10128786 Spacer, Handle | - |
| 63 | – | W10128787 Endcap, Handle | - |
| 64 | | Hinge, Lid | - |
| 65 | – | W10128789 Hood | - |
| 66 |  | Bulb, Light | $9.68 Part Advantage |
