KitchenAid KFRU488TSS00
48" Carted Grill
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KFRU488TSS0048" Carted Grill
7 diagrams206 parts

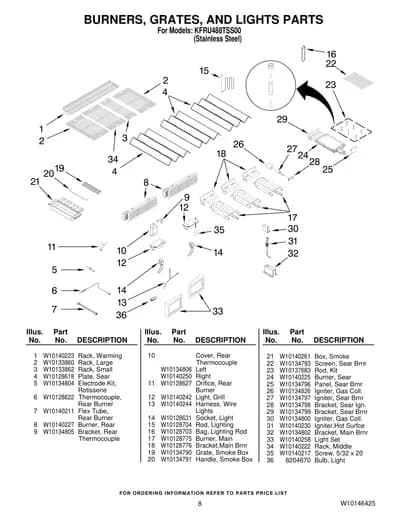

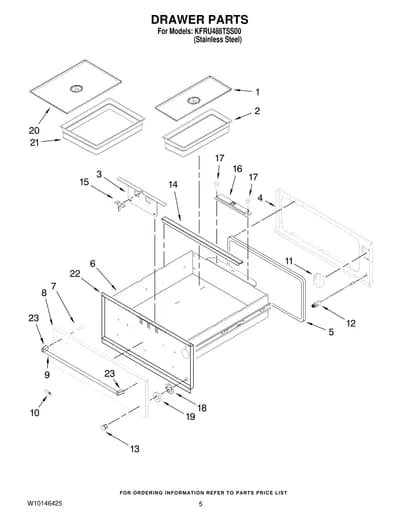

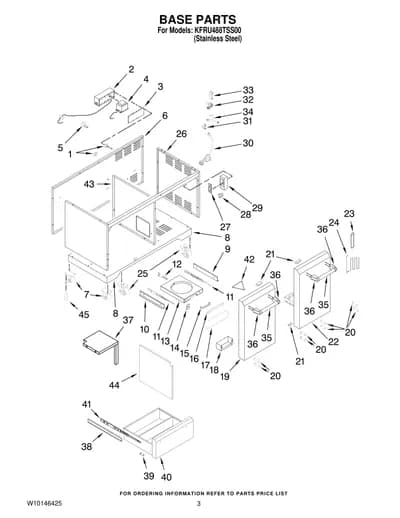

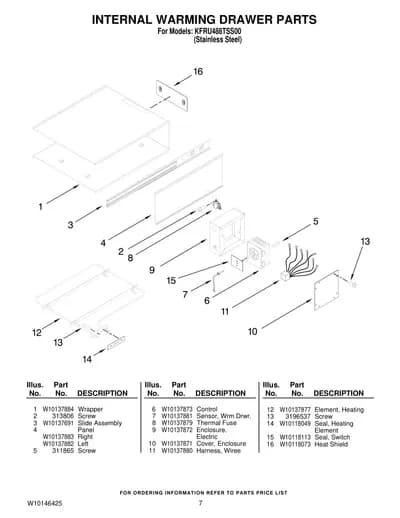

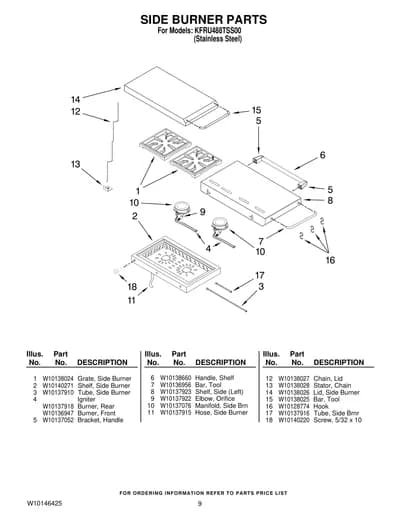

Parts Sections (7)
Diagram

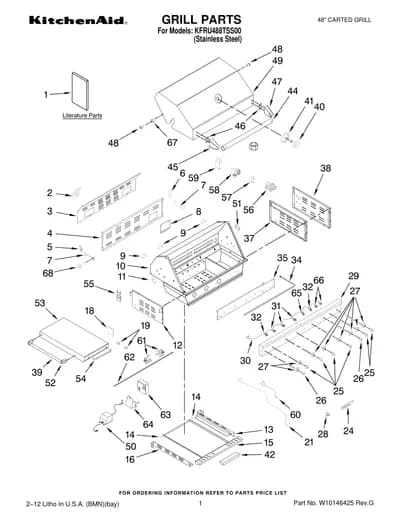

GRILL PARTS
Parts in GRILL PARTS
65 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10110725 Use & Care Guide | - |
| 1 | – | W10110730 Conversion Instr. | - |
| 2 | – | W10128619 Cover, Rear | - |
| 3 | – | W10140249 Panel, Rear | - |
| 4 | – | W10140252 Panel, Access | - |
| 5 | – | W10128634 Bracket, Panel Left | - |
| 6 | – | W10128635 Bracket, Panel Right | - |
| 7 | – | W10128636 Bracket, Warming Rack — Left/Right | - |
| 7 | – | W10140243 Bracket, Warming Rack — Middle | - |
| 8 | – | W10128637 Cover, Access Panel | - |
| 9 | – | W10128638 Clip, Wire | - |
| 10 | – | W10140260 Hood Assy | - |
| 11 | – | W10128640 Hole Plug | - |
| 12 | – | W10137906 Panel, Side Left | - |
| 13 | – | W10128644 Bracket, Grease Tray (Right) | - |
| 14 | – | W10128655 Roller, Drip Tray | - |
| 15 | – | W10133870 Drip Tray Assy — Large | - |
| 15 | – | W10140262 Drip Tray Assy — Small | - |
| 16 | – | W10128657 Bracket, Grease Tray (Left) | - |
| 18 | – | W10132690 Cover, Wire Terminal | - |
| 19 | – | W10132691 Plastic (#SB22) | - |
| 19 | – | W10132692 Plastic (#SB19) | - |

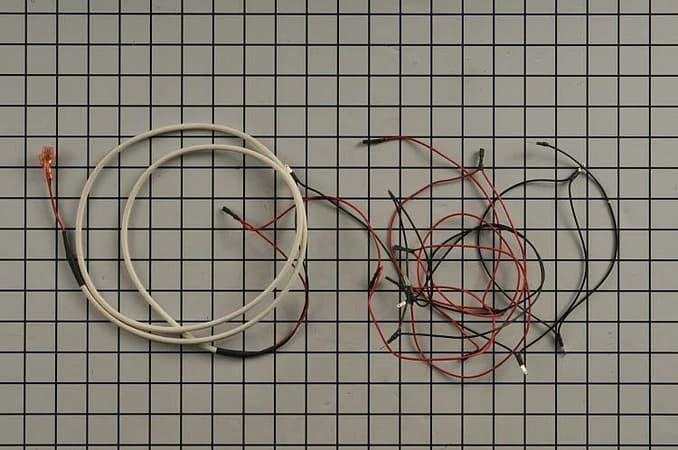

| 21 |  | Harness, Wire Light | - |
| 24 | | Nameplate | - |
| 25 |  | W10128753replaces W10134821 Knob, Main Burner | $44.73 RepairClinic |
| 26 |  | WPW10128756replaces W10134822 Knob, Rear Burner | - |
| 27 | – | W10134820 Bezel, Knob | - |
| 28 | | Switch, Light | - |
| 29 | – | W10140266 Panel, Control | - |
| 30 |  | Harness, Wire Control | - |
| 31 | – | W10140234 Valve, Main Brnr | - |
| 32 |  | Valve, Rear Brnr | Discontinued |
| 34 | – | W10140213 Manifold | - |
| 35 | – | W10140251 Baffle, Front | - |
| 37 | | Side Panel, Right | - |
| 38 | – | W10137909 Panel, Outer (RT) | - |
| 39 | – | W10128660 Bar, Handle | - |
| 40 | | W10128777NLA Thermometer | Discontinued |
| 41 | | W10128779NLA Bezel, Thermometer | Discontinued |
| 42 | – | W10140254 Panel, Grease Tray | - |
| 44 | – | W10140208 Handle, Hood | - |
| 45 | – | W10128785 Endcap, Handle | - |
| 46 | – | W10128786 Spacer, Handle | - |
| 47 | – | W10128787 Endcap, Handle | - |
| 48 | | Hinge, Lid | - |
| 49 | | W10140259NLA Hood | Discontinued |
| 50 |  | WPW10247115replaces W10134987 Transformer, Rotisserie Motor | - |
| 51 | – | W10134988 Bracket, Spit | - |
| 52 | – | W10128659 Bracket, Handle | - |
| 53 | | Shelf, Side (LF) | - |
| 54 | – | W10136956 Bar, Tool | - |
| 55 | | Brkt,Trnsfrmr(Btm) | - |
| 56 |  | WPW10132702replaces W10132702 Regulator (NG) | $244.14 RepairClinic |
| 57 | – | W10128747 Fixture,Manifold | - |
| 58 | | Connector (Brass) | - |
| 59 | – | W10128749 Base, Manifold Fixture | - |
| 60 | | Harness, Wire | - |
| 61 | | Fork, Spit | - |
| 62 | | Rod, Spit | - |
| 63 |  | WPW10167017replaces W10134985 Motor, Rotisserie | - |
| 64 | – | W10134986 Bracket, Rot. Mtr. | - |
| 65 | | Valve, Sear Burner | Discontinued |
| 66 | | Valve, Side Burner | - |
| 67 | | Nut, 1/4" | - |
| 68 | – | W10140218 Screw, 1/4 x 35 | - |
