KitchenAid KGCC566RBL03
36" Gas Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KGCC566RBL0336" Gas Cooktop
3 diagrams80 parts
Parts Sections (3)

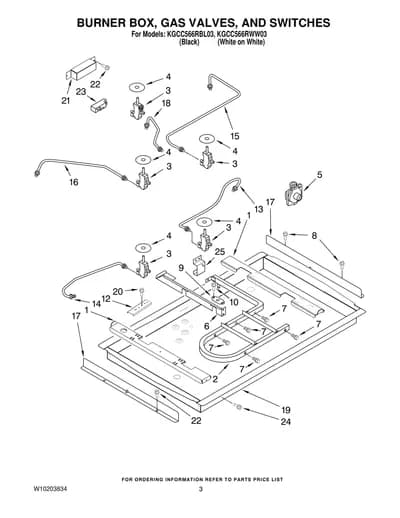

Diagram

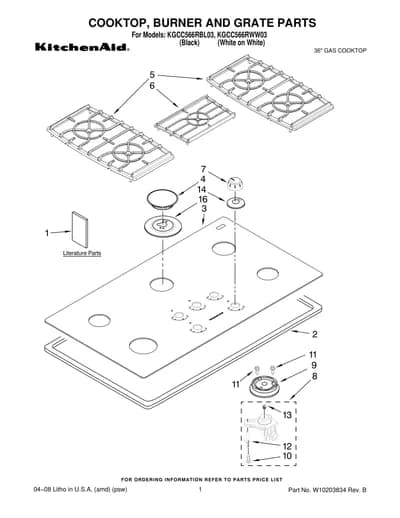

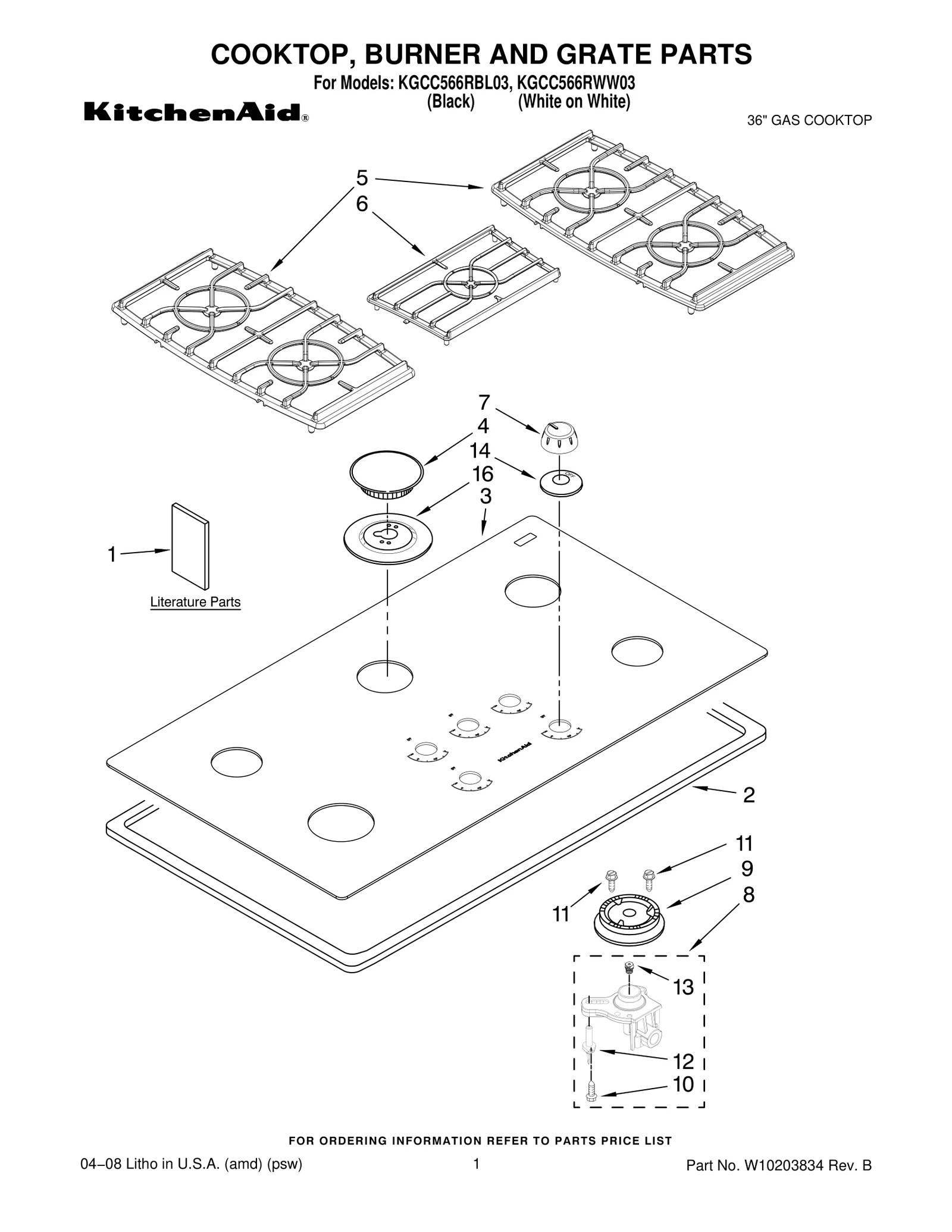

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286304 Installation Instructions | - |
| 1 | – | 8304571 Undercounter Installation | - |
| 1 | – | W10162188 Use & Care Guide | - |
| 1 |  | 8286620NLA LP Gas Conversion Instructions | Discontinued |
| 1 | – | 3192099 Wiring Diagram Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 | | 3191933NLA Seal, Foam | Discontinued |
| 3 |  | W10661511replaces W10141012 Cooktop — Black | $332.95 ApplianceParts Pro |
| 3 |  | W10661512replaces 8286174 Cooktop — White | - |
| 4 |  | WP8286153CBreplaces 8286153CB Burner Caps Black — LR & RF | $54.24 PartSelect |
| 4 |  | WP8286154CBreplaces 8286154CB Burner Caps Black — CTR | $64.69 PartSelect |
| 4 |  | WP8286155CBreplaces 8286155CB Burner Caps Black — RR | $77.75 PartSelect |
| 4 |  | WP8286156CBreplaces 8286156CB Burner Caps Black — LF | $62.12 Part Advantage |
| 4 |  | WP8286153CGreplaces 8286153CG Burner Caps Black — LR & RF | - |
| 4 |  | WP8286154CGreplaces 8286154CG Burner Caps Black — CTR | - |
| 4 |  | WP8286155CGreplaces 8286155CG Burner Caps Black — RR | $33.97 RepairClinic |
| 4 |  | Burner Caps Black — LF | - |
| 5 |  | W11502175replaces 8285879CB Grate, Burner — Black | $131.89 Parts Dr |
| 5 |  | W11242860replaces 8285879CG Grate, Burner — White | $131.89 Parts Dr |
| 6 |  | W11242859replaces 8285881CB Grate, Center — Black | $133.04 Parts Dr |
| 6 |  | Grate, Center — White | - |
| 7 |  | WP8286094BLreplaces 8286094BL Knob, Control — Black | $23.60 PartSelect |
| 7 |  | Knob, Control — White | $12.12 Parts Dr |
| 8 |  | WPW10128448replaces W10128448 Holder, Orifice — LR & RF | $62.08 Part Advantage |
| 8 |  | WPW10128450replaces W10128450 Holder, Orifice — CTR | $43.59 Part Advantage |
| 8 |  | WPW10128451replaces W10128451 Holder, Orifice — RR | $33.36 Part Advantage |
| 8 |  | WPW10128445replaces W10128445 Holder, Orifice — LF | $45.50 Parts Dr |
| 9 |  | WPW10406243replaces 8286181 Head, Burner — LR & RF | $12.98 Part Advantage |
| 9 |  | WPW10406283replaces 8286184 Head, Burner — CTR | $37.32 Part Advantage |
| 9 |  | WPW10406797replaces 8286182 Head, Burner — RR | $33.54 Part Advantage |
| 9 |  | WPW10406878replaces 8286183 Head, Burner — LF | $38.07 Part Advantage |
| 10 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 11 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 12 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 13 |  | WP3192529replaces 3192529 Orifice — LR & RF | - |
| 13 |  | WP3192523replaces 3192523 Orifice — CTR | $56.33 PartSelect |
| 13 |  | Orifice — RR | - |
| 13 |  | Orifice — LF | - |
| 14 |  | W10854242replaces 3180079 Grommet, Glass — Black | $3.58 Part Advantage |
| 14 |  | WP3180081replaces 3180081 Grommet, Glass — White | $3.47 Part Advantage |
| 16 | | Bezel Black — LR & RF | - |
| 16 |  | Bezel Black — RR & CTR | - |
| 16 |  | Bezel Black — LF | - |
| 16 |  | Bezel Black — LR & RF | - |
| 16 | | Bezel Black — RR & CTR | - |
| 16 |  | Bezel Black — LF | - |
