Model
KitchenAid KGCC766RSS01
36" Gas Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KGCC766RSS0136" Gas Cooktop
3 diagrams61 parts
Parts Sections (3)

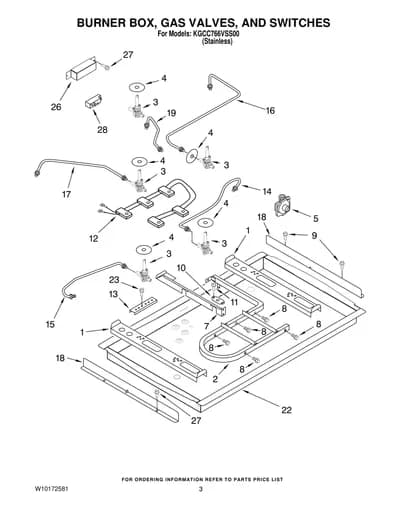

Diagram

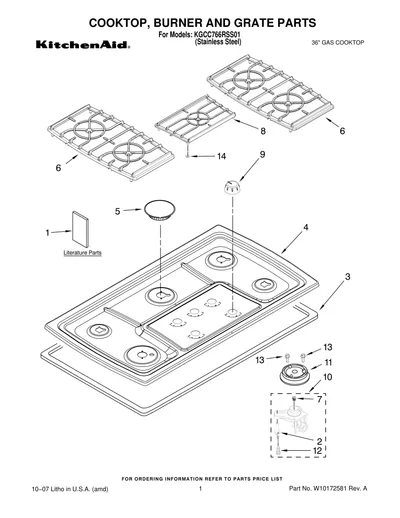

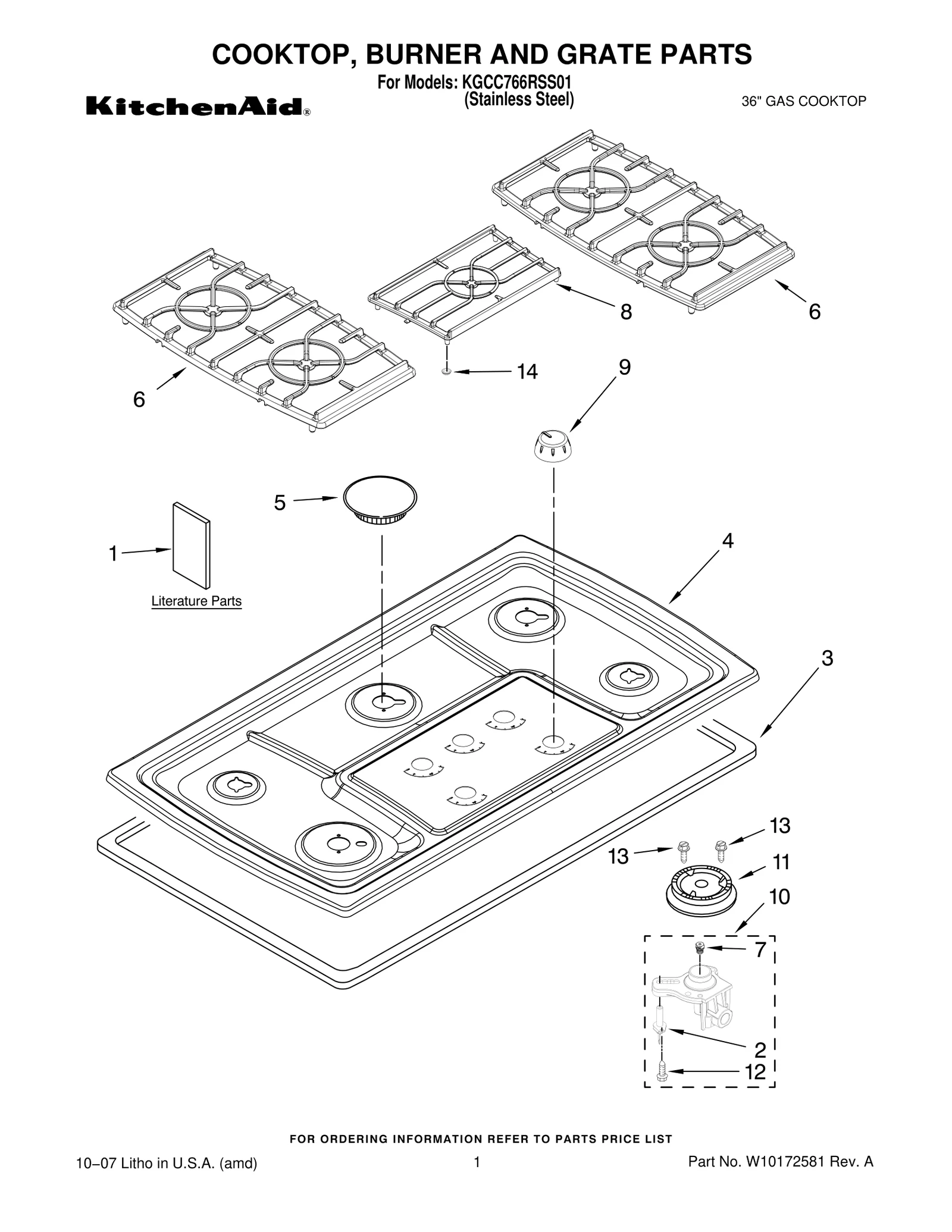

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10131955 Installation Instructions | - |
| 1 | – | W10169072 Use & Care Guide | - |
| 1 | – | 3192099 Wiring Diagram Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 1 | | 8286620NLA LP Conversion Instructions | Discontinued |
| 2 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 3 | | 9760279NLA Seal, Foam | Discontinued |
| 4 | – | W10169223 Cooktop | - |
| 5 |  | WP8286153CBreplaces 8286153CB LR,RF | $54.24 PartSelect |
| 5 |  | WP8286154CBreplaces 8286154CB Cap, Burner — CTR | $64.69 PartSelect |
| 5 |  | WP8286155CBreplaces 8286155CB Cap, Burner — RR | $77.75 PartSelect |
| 5 |  | WP8286156CBreplaces 8286156CB Cap, Burner — LF | $62.12 Part Advantage |
| 6 | | 8285876CBNLA Grate, Burner | Discontinued |
| 7 |  | WP3192529replaces 3192529 LR,RF | - |
| 7 |  | WP3192523replaces 3192523 Orifice — CTR | $56.33 PartSelect |
| 7 | | Orifice — RR | - |
| 7 |  | Orifice — LF | - |
| 8 | | 8285878CBNLA Grate, Filler | Discontinued |
| 9 |  | WP8286094BLreplaces 8286094BL Knob, Control (4) | $23.60 PartSelect |
| 10 |  | WPW10128448replaces W10128448 LR,RF | $62.08 Part Advantage |
| 10 |  | WPW10128450replaces W10128450 Holder, Orifice — CTR | $43.59 Part Advantage |
| 10 | | 8287052NLA Holder, Orifice — RR | Discontinued |
| 10 | | WPW10128448replaces W10128448 Holder, Orifice — LF | $62.08 Part Advantage |
| 11 |  | WPW10406243replaces 8286181 LR,RF | $12.98 Part Advantage |
| 11 |  | WPW10406283replaces 8286184 Head, Burner — CTR | $37.32 Part Advantage |
| 11 |  | WPW10406797replaces 8286182 Head, Burner — RR | $33.54 Part Advantage |
| 11 |  | WPW10406878replaces 8286183 Head, Burner — LF | $38.07 Part Advantage |
| 12 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 13 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 14 |  | WP8286452replaces 8286452 Grommet, Grate | $5.76 RepairClinic |
