KitchenAid KGCP462KSS05
36" Stainless Professional Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KGCP462KSS0536" Stainless Professional Cooktop
3 diagrams86 parts

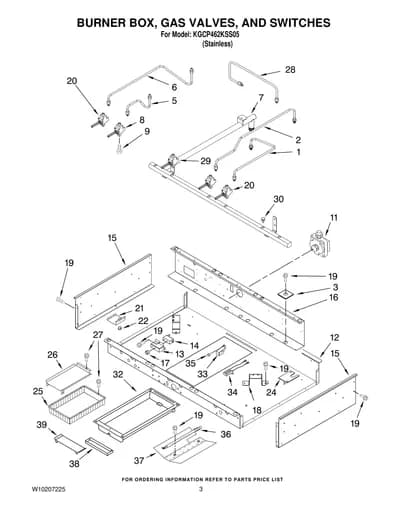

Parts Sections (3)
Diagram

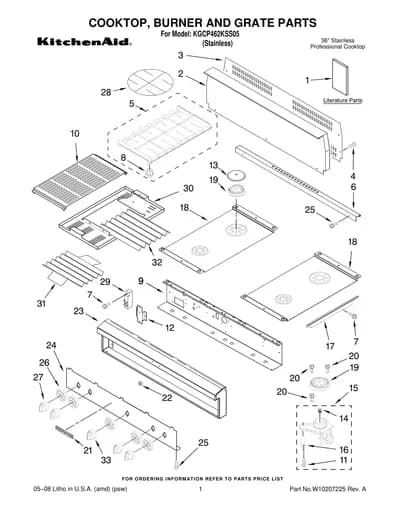

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8285586 Wiring Diagram | - |
| 1 | – | W10162189 Use & Care Guide | - |
| 1 | – | 9759405 Installation Instructions | - |
| 1 | – | 9759442 Instructions, LP Conversion | - |
| 2 |  | Backsplash | - |
| 3 | | Support,Backsplash | - |
| 4 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 5 | – | W10166700 Grate, Burner | - |
| 6 | | Trim, Island | - |
| 7 |  | WP12990527replaces 3400843 Screw | $2.30 Part Advantage |
| 8 |  | W10185266replaces 8286695 Rubber, Foot | $4.44 Part Advantage |
| 9 | – | 8285478 Support, Control Panel | - |
| 10 | – | 4457151 Grate, Grill | - |
| 11 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 12 | | Bracket, Spark | - |
| 13 |  | WP8284669replaces 8284669 LF,RF | $51.61 PartSelect |
| 13 | | 4455243NLA LR,RR | Discontinued |
| 14 |  | LF,RF | - |
| 14 | | LR,RR | - |
| 15 |  | WPW10128449replaces W10128449 LF,RF | - |
| 15 |  | WPW10155786replaces W10155786 LR,RR | $38.63 Part Advantage |
| 16 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 17 | | W10157584NLA Trim, Side — Right | Discontinued |
| 17 | | Trim, Side — Left | - |
| 18 | – | 9760863 Cooktop | - |
| 18 |  | WPW10650400replaces 4449040 Screw (2) | - |
| 18 |  | WP4449743replaces 4449743 Screw (2) | $5.00 RepairClinic |
| 19 |  | WP4455979replaces 4455979 LF,RF | $37.41 Parts Dr |
| 19 |  | W11032529replaces 4455849 LR,RR | $24.34 Part Advantage |
| 20 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 21 | | 2005292NLA Nameplate | Discontinued |
| 22 | | WP2004333replaces 2004333 Palnut | - |
| 23 | | Control Frame | - |
| 24 | – | W10199060 Panel, Control | - |
| 25 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 26 | – | W10018520 Bezel, Knob | - |
| 27 |  | WPW10078400replaces W10078400 Knob, Burner | $3.38 Part Advantage |
| 28 | | 4455109NLA Plate, Simmer | Discontinued |
| 29 |  | WPW10110491replaces W10110488 Module, Spark | $108.70 Part Advantage |
| 30 | | Frame, Wave Tray | - |
| 31 | | Plate, Wave | - |
| 32 | | Plate, Wave Tray | - |
| 32 |  | WP3177991replaces 3177991 Screw | $3.74 Parts Dr |
| 33 | | Knob, Grill | $17.37 Parts Dr |
