KitchenAid KGCS166GSS08
36" Gas Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KGCS166GSS0836" Gas Cooktop
3 diagrams64 parts
Parts Sections (3)
Diagram

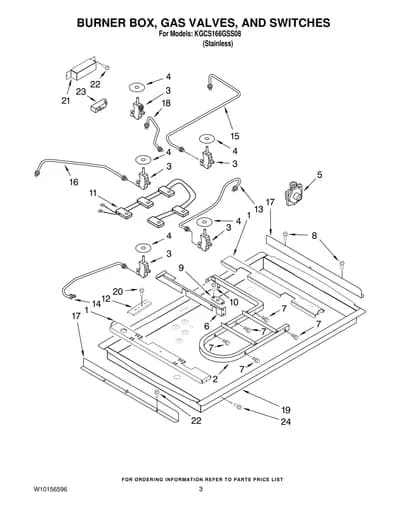

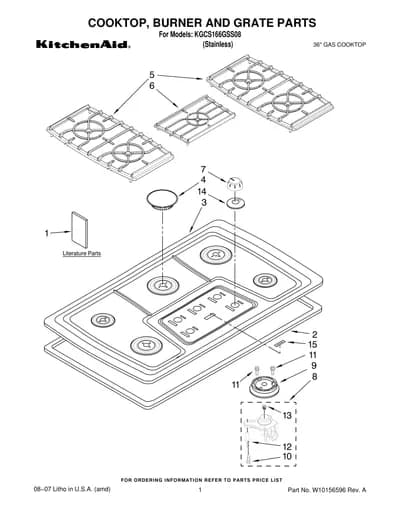

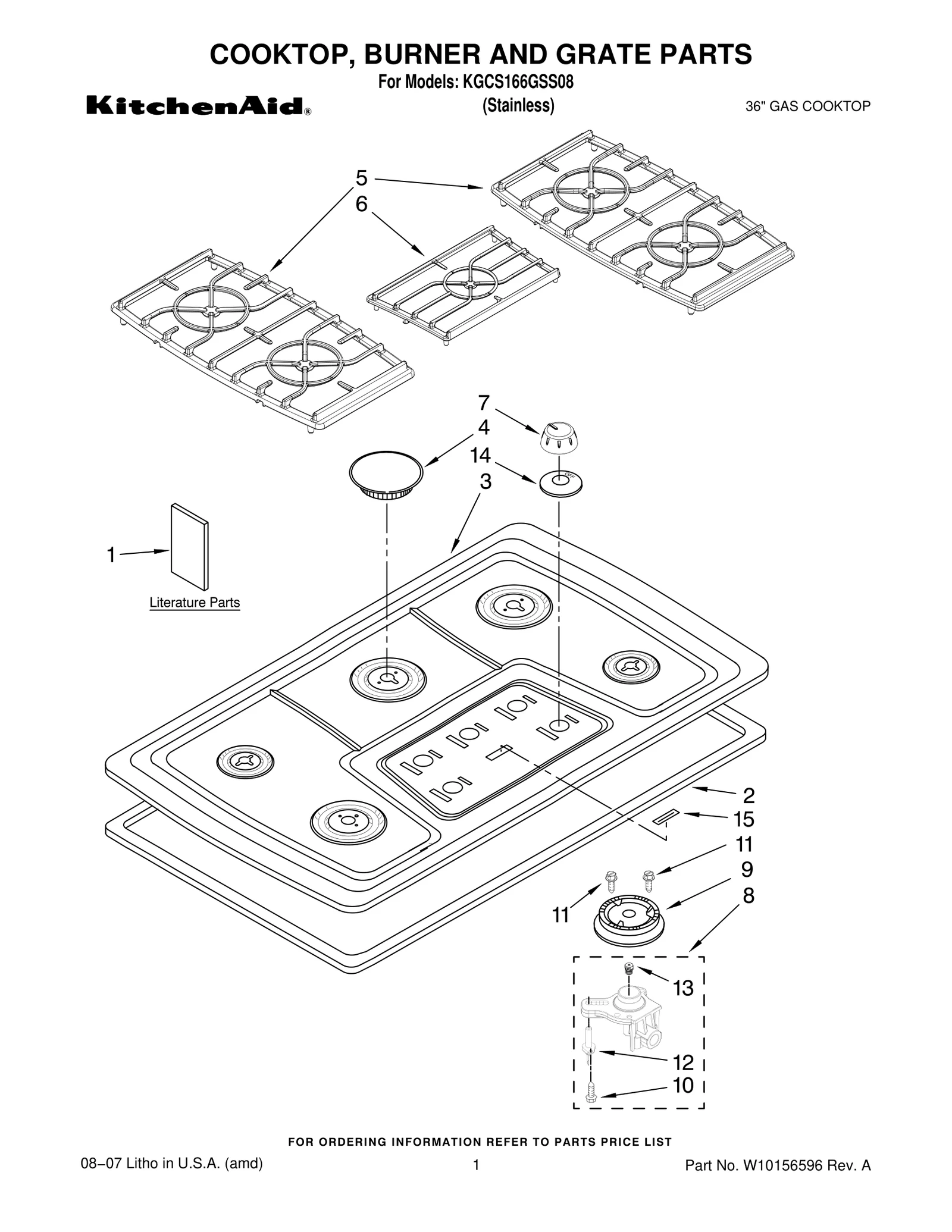

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
32 parts

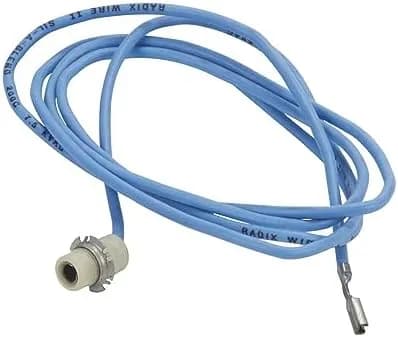

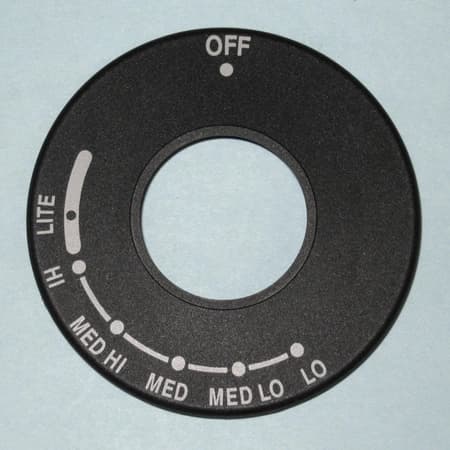

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10131955 Installation Instructions | - |
| 1 | – | 8304571 Undercounter Installation | - |
| 1 | – | 8286640 Use & Care Guide | - |
| 1 | – | 3192099 Wiring Diagram Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 | | 9760279NLA Seal, Foam | Discontinued |
| 3 | | Cooktop | - |
| 4 |  | WP8286153CBreplaces 8286153CB Burner Caps — LR & RF | $54.24 PartSelect |
| 4 |  | WP8286154CBreplaces 8286154CB Burner Caps — CTR | $64.69 PartSelect |
| 4 |  | WP8286155CBreplaces 8286155CB Burner Caps — RR | $77.75 PartSelect |
| 4 | | 3192489NLA Burner Caps — LF | Discontinued |
| 5 |  | WP9759505replaces 9759505 Grate, Burner | $134.95 ApplianceParts Pro |
| 6 | | 9759513NLA Grate, Center | Discontinued |
| 7 |  | WP3191922replaces 3191922 Knob, Control | $3.55 Part Advantage |
| 8 |  | WPW10128448replaces W10128448 Holder, Orifice — LR & RF | $62.08 Part Advantage |
| 8 |  | WPW10128450replaces W10128450 Holder, Orifice — CTR | $43.59 Part Advantage |
| 8 |  | WPW10128451replaces W10128451 Holder, Orifice — RR | $33.36 Part Advantage |
| 8 |  | WPW10155786replaces 4456622 Holder, Orifice — LF | $38.63 Part Advantage |
| 9 |  | WPW10406243replaces 8286181 Head, Burner — LR & RF | $12.98 Part Advantage |
| 9 |  | WPW10406283replaces 8286184 Head, Burner — CTR | $37.32 Part Advantage |
| 9 |  | WPW10406797replaces 8286182 Head, Burner — RR | $33.54 Part Advantage |
| 9 |  | W11032529replaces 4455849 Head, Burner — LF | $24.34 Part Advantage |
| 10 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 11 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 12 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 13 |  | WP3192529replaces 3192529 Orifice — LR & RF | - |
| 13 |  | WP3192523replaces 3192523 Orifice — CTR | $56.33 PartSelect |
| 13 |  | Orifice — RR | - |
| 13 | | Orifice — LF | - |
| 14 |  | WP4457192replaces 4457192 Collar, Knob | $30.35 Part Advantage |
| 15 | | 3191514NLA Nameplate | Discontinued |
