Model
KitchenAid KGRK201TSS0
30" Gas Freestanding Self Clean Range Sealed Burner Convection
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KGRK201TSS030" Gas Freestanding Self Clean Range Sealed Burner Convection
7 diagrams155 parts
Parts Sections (7)

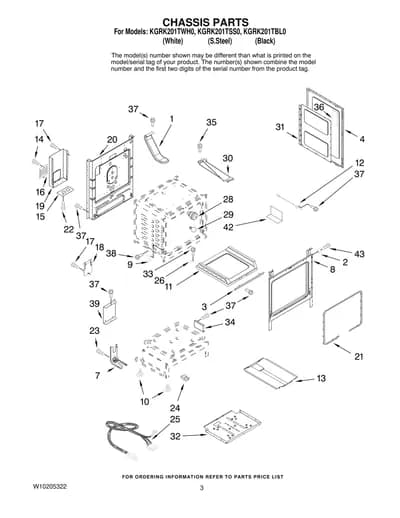

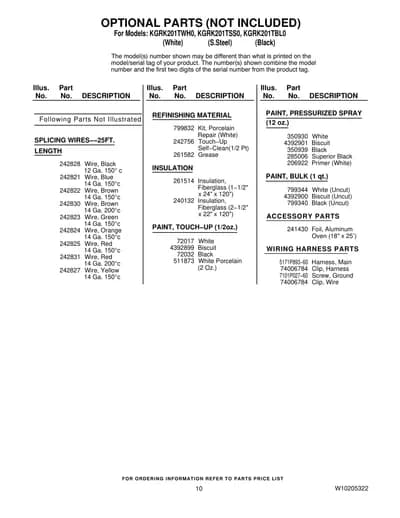

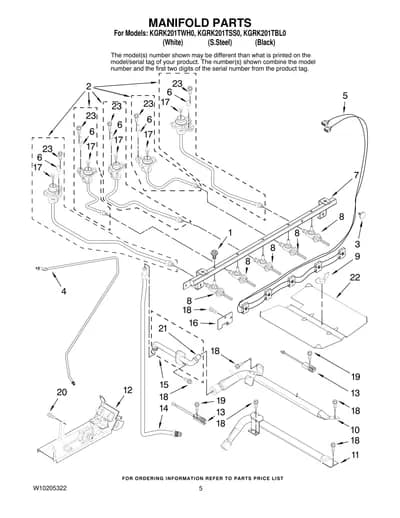

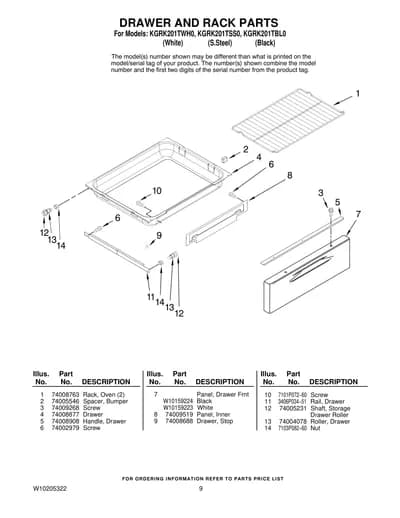

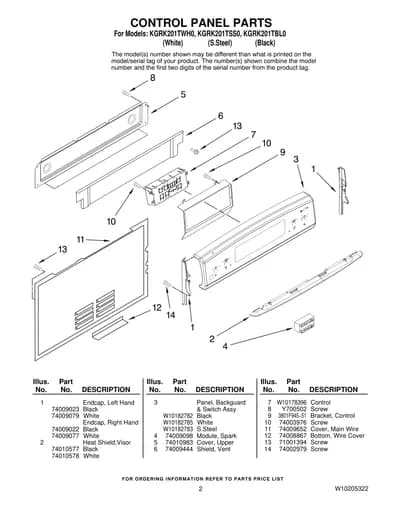

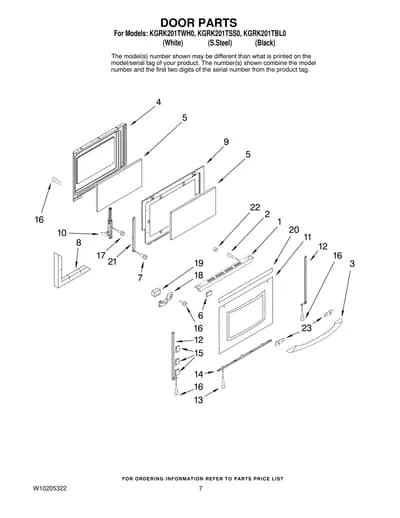

Diagram

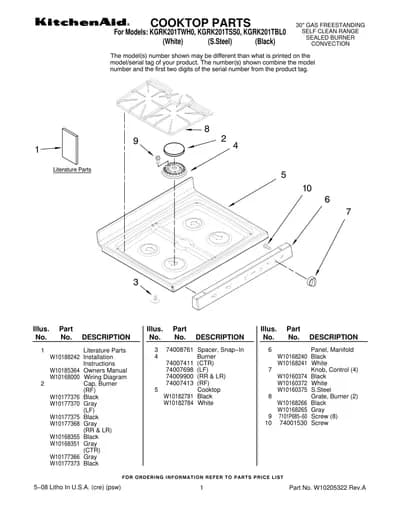

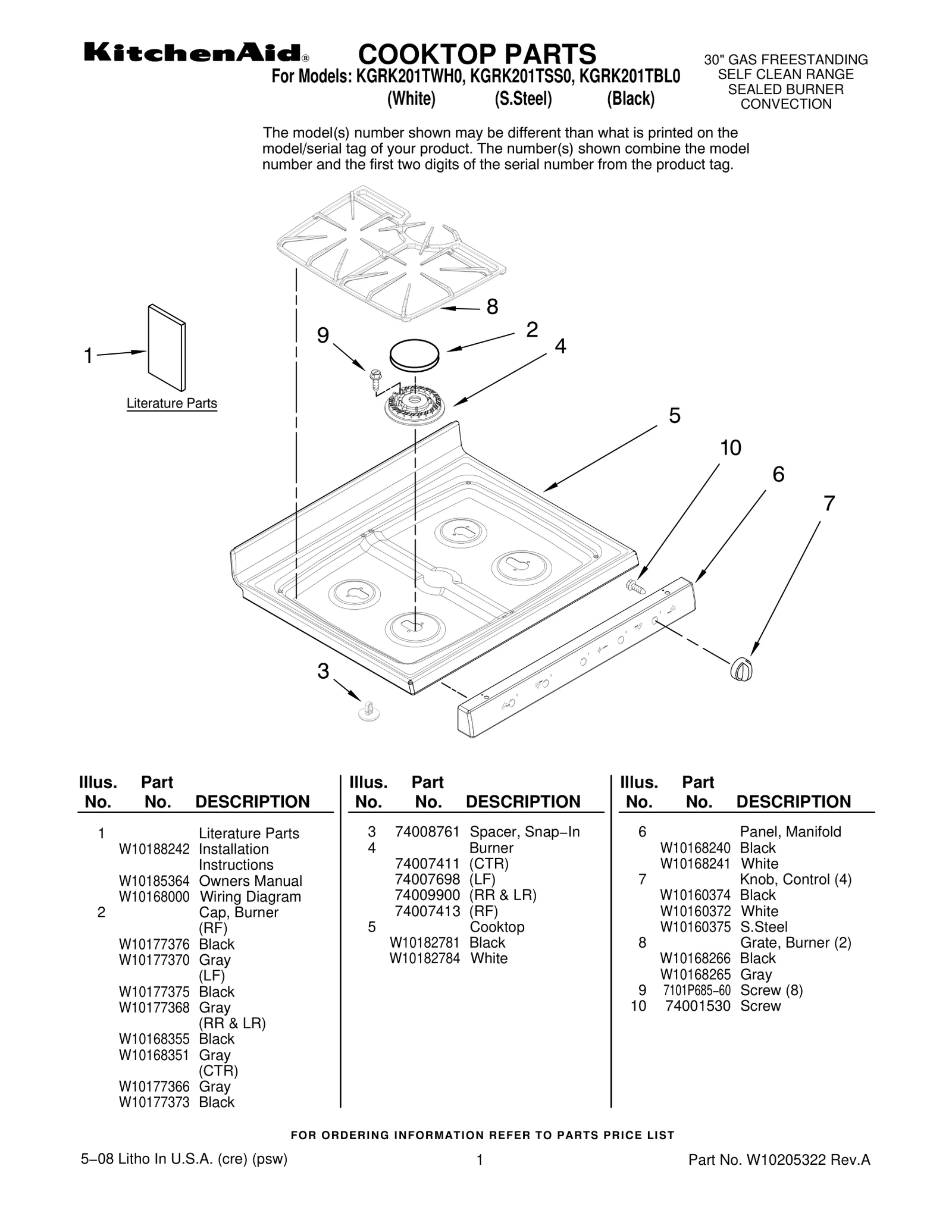

COOKTOP PARTS
Parts in COOKTOP PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10188242 Installation Instructions | - |
| 1 | – | W10185364 Owners Manual | - |
| 1 | – | W10168000 Wiring Diagram | - |
| 2 |  | WP7504P300-60replaces W10177376 Cap, Burner — Black | $87.61 PartSelect |
| 2 |  | W10177370NLA Cap, Burner — Gray | Discontinued |
| 2 | | WP7504P299replaces W10177375 Cap, Burner — Black | $70.33 |
| 2 | | 7504P295replaces W10177368 Cap, Burner — Gray | $67.27 |
| 2 | | W10168355NLA Cap, Burner — Black | Discontinued |
| 2 | | Cap, Burner — Gray | - |
| 2 |  | 7504P294-60replaces W10177366 Cap, Burner — Gray | - |
| 2 | | WP7504P298replaces W10177373 Cap, Burner — Black | $38.70 Parts Dr |
| 3 |  | Spacer, Snap−In | - |
| 4 |  | WPW10406243replaces 74007411 (CTR) | $12.98 Part Advantage |
| 4 |  | WPW10406797replaces 74007698 (LF) | $33.54 Part Advantage |
| 4 |  | WPW10406283replaces 74009900 (RR & LR) | $37.32 Part Advantage |
| 4 |  | WPW10406878replaces 74007413 (RF) | $38.07 Part Advantage |
| 5 | | Cooktop — Black | - |
| 5 | | W10182784NLA Cooktop — White | Discontinued |
| 6 | – | W10168240 Panel, Manifold — Black | - |
| 6 | – | W10168241 Panel, Manifold — White | - |
| 7 |  | WPW10160374replaces W10160374 Knob, Control (4) — Black | $27.83 Parts Dr |
| 7 |  | WPW10160372replaces W10160372 Knob, Control (4) — White | $38.95 ApplianceParts Pro |
| 7 |  | WPW10160375replaces W10160375 Knob, Control (4) — S.Steel | $26.05 Part Advantage |
| 8 | | Grate, Burner (2) — Black | - |
| 8 | – | W10168265 Grate, Burner (2) — Gray | - |
| 9 | – | N/S 7101P685−60 Screw (8) | - |
| 10 | | Screw | - |
