KitchenAid KICU465SWH0
36" Canopy Hood
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KICU465SWH036" Canopy Hood
2 diagrams56 parts

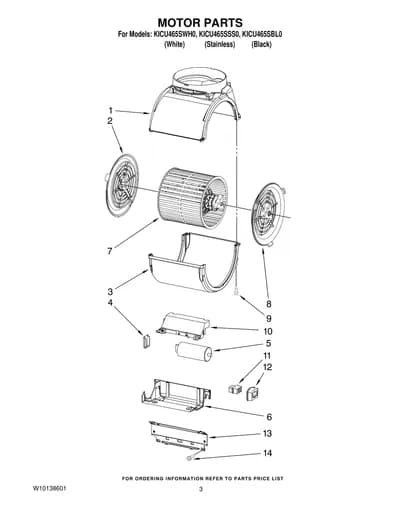

Parts Sections (2)
Diagram

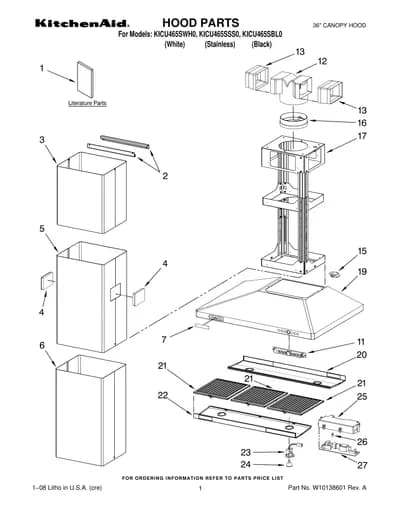

HOOD PARTS
Parts in HOOD PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10094880 Use & Care Guide | - |
| 2 | – | W10139307 Spacer — Upper & Lower | - |
| 2 | – | W10139308 Spacer — Center | - |
| 3 | – | W10139309 Pipe, Fitting — White | - |
| 3 |  | Pipe, Fitting — Black | - |
| 3 | – | W10139311 Pipe, Fitting — S.Steel | - |
| 4 | – | 4360316 Air−Outlet — LH White | - |
| 4 | – | W10138373 Air−Outlet — LH Black | - |
| 4 | | 4360330NLA Air−Outlet — LH S.Steel | Discontinued |
| 4 | – | 4360323 Air−Outlet — RH White | - |
| 4 | – | W10138372 Air−Outlet — RH Black | - |
| 4 | | 4360332NLA Air−Outlet — RH S.Steel | Discontinued |
| 5 | – | W10139312 Pipe Fitting — White | - |
| 5 | – | W10139313 Pipe Fitting — Black | - |
| 5 | | Pipe Fitting — S.Steel | - |
| 6 | – | W10139315 Pipe Fitting — White | - |
| 6 | | Pipe Fitting — Black | - |
| 6 | | W10139317NLA Pipe Fitting — S.Steel | Discontinued |
| 7 | | W10021870replaces W10138380 Nameplate — White | - |
| 7 |  | W10021860replaces W10138381 Nameplate — Black | - |
| 7 |  | W10021850replaces W10138382 Nameplate — S.Steel | - |
| 11 | | W10138386NLA Board, Control | Discontinued |
| 12 | | Duct, Air | - |
| 13 | – | W10139318 Duct, Air Spacer | - |
| 15 | | 8191005NLA Box, Control | Discontinued |
| 16 | – | 8190358 Damper, Hood | - |
| 17 | – | N/S Casing, Motor | - |
| 19 | – | W10139304 Hood — White | - |
| 19 | – | W10139305 Hood — Black | - |
| 19 | | Hood — S.Steel | - |
| 20 | – | W10139301 Support,Rear Lt — White | - |
| 20 | – | W10139302 Support,Rear Lt — Black | - |
| 20 | | Support,Rear Lt — S.Steel | - |
| 21 |  | WPW10252087replaces 8189594 Filter | $211.39 Parts Dr |
| 22 | – | W10139298 Support,Front Lt — White | - |
| 22 | – | W10139299 Support,Front Lt — Black | - |
| 22 | | Support,Front Lt — S.Steel | - |
| 23 | | W10138354NLA Socket,Light (4) | Discontinued |
| 24 |  | WPW10252088replaces W10114395 Bulb, Light (4) | $72.35 Parts Dr |
| 25 | | W10138395NLA Box, Control | Discontinued |
| 26 | – | W10138394 Knob, Control | - |
| 27 | | W10138496NLA Control, Motor | Discontinued |
