Model
KitchenAid KICU568SBL0
36" Induction Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KICU568SBL036" Induction Cooktop
2 diagrams43 parts
Parts Sections (2)
Diagram

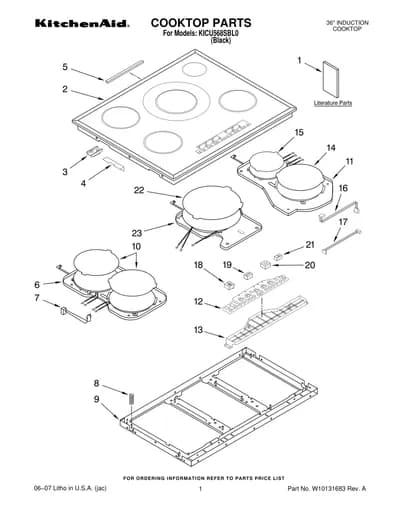

COOKTOP PARTS
Parts in COOKTOP PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10098720 Instruct, Install | - |
| 1 | – | W10098710 Owners Manual | - |
| 2 |  | Cooktop, Glass | - |
| 3 | | Bracket, Mntg(Kit) | - |
| 4 | | Bracket, Mntg(Kit) | - |
| 5 | | Seal | - |
| 6 | | W10122332NLA Hotplate (180−180) | Discontinued |
| 7 | – | W10122353 Harness, Wire | - |
| 8 | – | W10122348 Spring | - |
| 9 | – | W10134544 Box, Burner | - |
| 10 | | Cover (Mica 180) | - |
| 11 | | W10122335NLA Hotplate (210−150) | Discontinued |
| 12 | | W10122340NLA Display | Discontinued |
| 13 | – | W10122351 Bracket, Mounting | - |
| 14 | | Cover (Mica 210) | - |
| 15 | | Cover (Mica 80) | - |
| 16 | – | W10122349 Harness, Wire | - |
| 17 | – | W10122354 Harness, Wire | - |
| 18 | | Display (Lock) | - |
| 19 | | Display (Clock) | - |
| 20 | | Display (Timer) | - |
| 21 | | Display (Power ON) | - |
| 22 | | Cover (Mica 280) | - |
| 23 | | W10122350NLA Hotplate (280) | Discontinued |
