Model
KitchenAid KIRD802VSS0
30" And 36" Retractable Down Draft Vent System
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KIRD802VSS030" And 36" Retractable Down Draft Vent System
1 diagram29 parts
Parts Sections (1)
Diagram

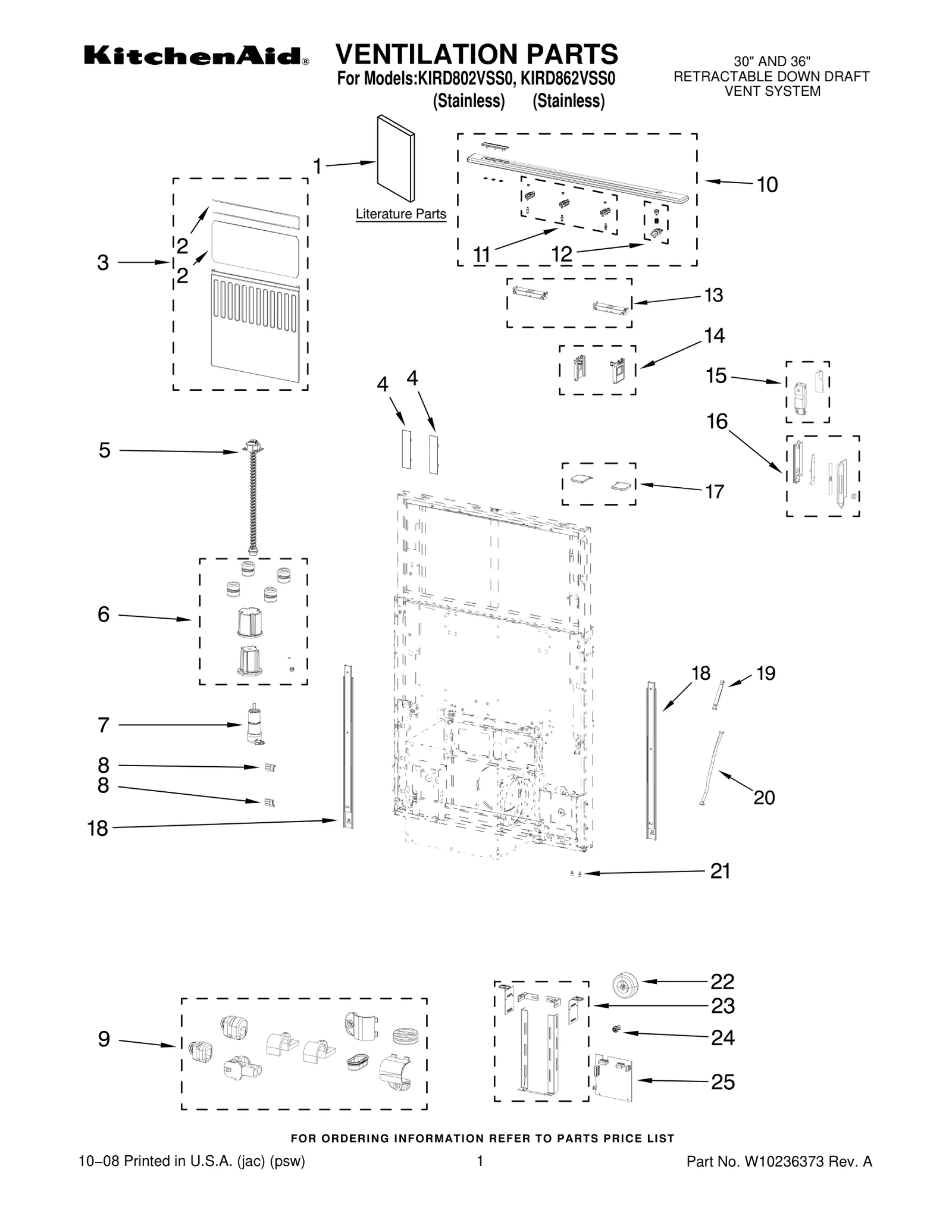

VENTILATION PARTS
Parts in VENTILATION PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10235642 Use & Care Guide/ Install Instructs | - |
| 1 | – | W10235641 Wiring Diagram | - |
| 2 |  | 30" Mdl (2) | - |
| 2 | | 36" Mdl (2) | - |
| 3 | | W10235657NLA 30" Mdl (2) | Discontinued |
| 3 | | W10235665NLA 36" Mdl (2) | Discontinued |
| 4 | | Guide / Spacer | - |
| 5 | | W10235656NLA Screw, Elevator | Discontinued |
| 6 | | W10235655NLA Housing Components | Discontinued |
| 7 | | W10235654NLA Motor, Gear | Discontinued |
| 8 |  | WPW10240604replaces 4360362 Switch, Micro (2) | $119.29 Parts Dr |
| 9 | – | W10235644 Clamp Kit | - |
| 10 | | W10235664NLA Cover, Control — 30" Mdl | Discontinued |
| 10 | | W10235667NLA Cover, Control — 36" Mdl | Discontinued |
| 11 | | W10235662NLA Connector Kit | Discontinued |
| 12 |  | Switch, Push Buttn | $66.44 ApplianceParts Pro |
| 13 |  | Kit Micro w/Box | - |
| 14 | | W10235645NLA Plate, Guide Kit | Discontinued |
| 15 |  | Control, Motor | - |
| 16 | | Housing, Control | - |
| 17 | | W10235646NLA Endcap, Trim Kit | Discontinued |
| 18 | | Guides, Kit of 2 | - |
| 19 | | W10235648NLA Harness 270mm | Discontinued |
| 20 | | W10235649NLA Harness 1250mm | Discontinued |
| 21 | – | W10138394 Knob (2) | - |
| 22 | | W10235650NLA Transformer | Discontinued |
| 23 | | W10235658NLA Hardware, Install | Discontinued |
| 24 |  | WPW10235651replaces W10235651 Fuse Kit | $42.59 RepairClinic |
| 25 | | W10235652NLA Control, Elctronic | Discontinued |
