Model
KitchenAid KSRC25FVMT00
Refrigerator
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KSRC25FVMT00Refrigerator
13 diagrams326 parts
Parts Sections (13)

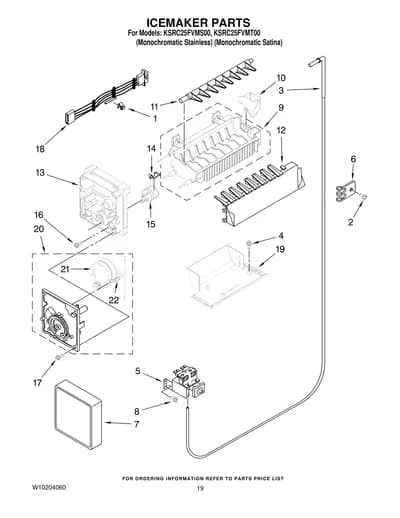

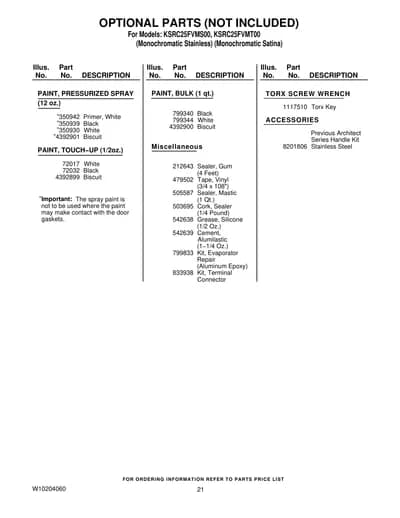

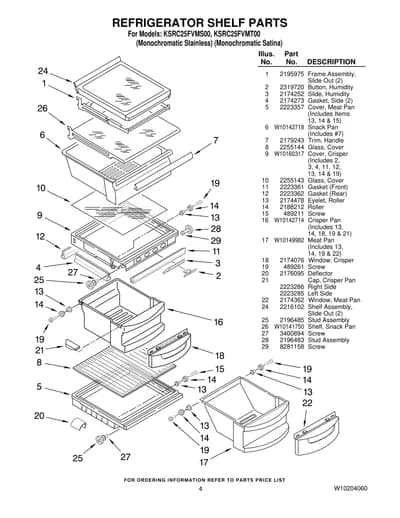

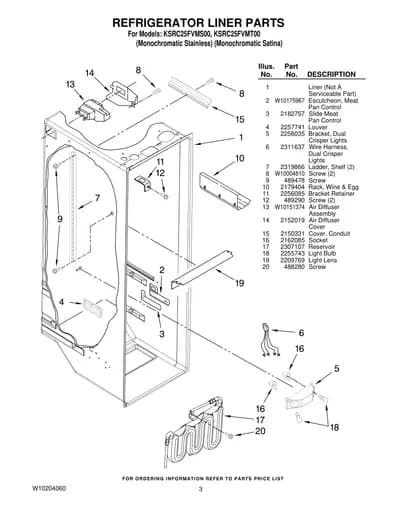

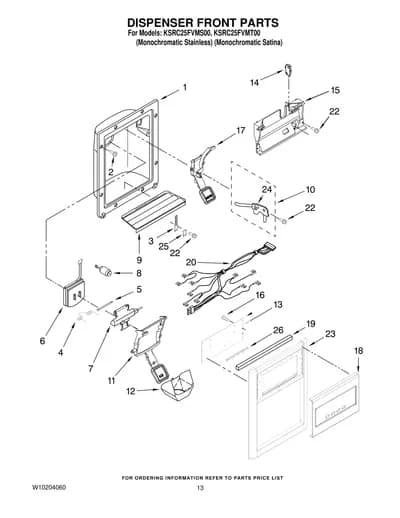

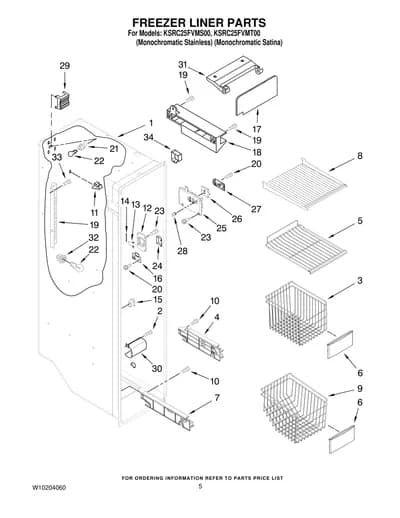

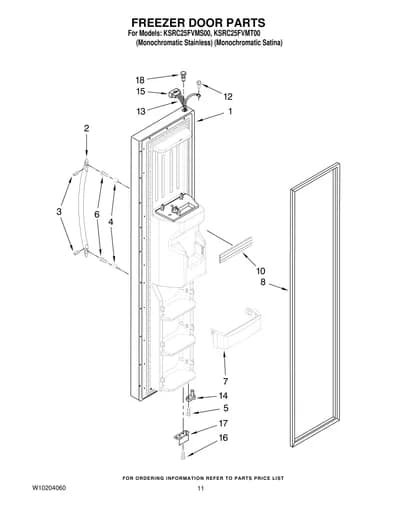

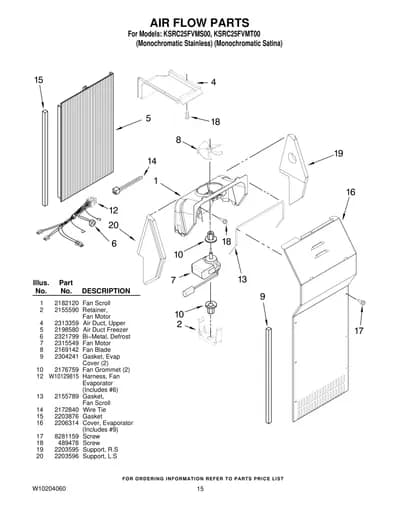

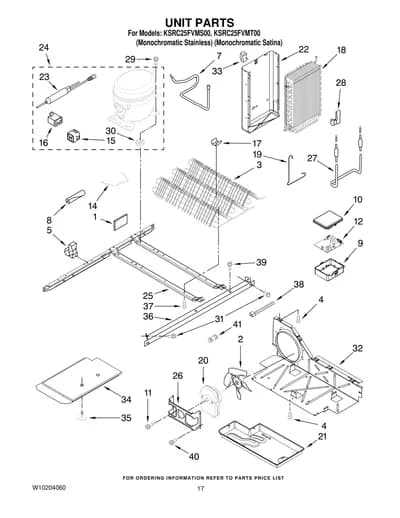

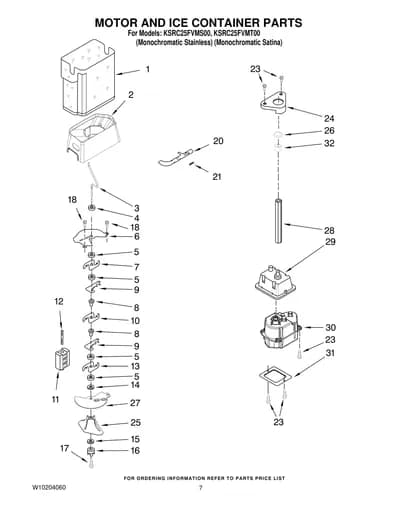

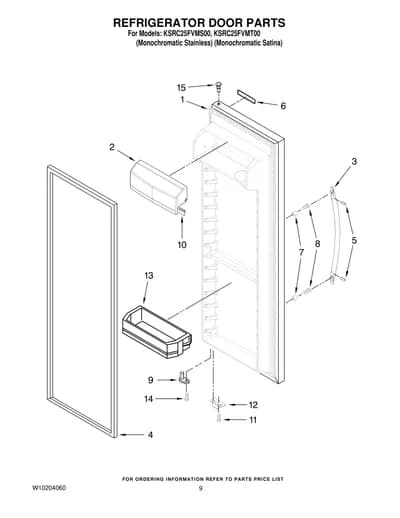

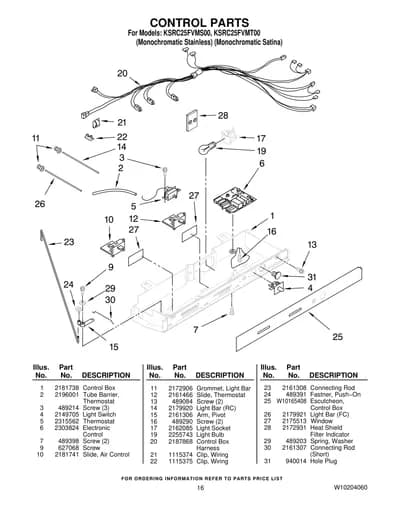

Diagram

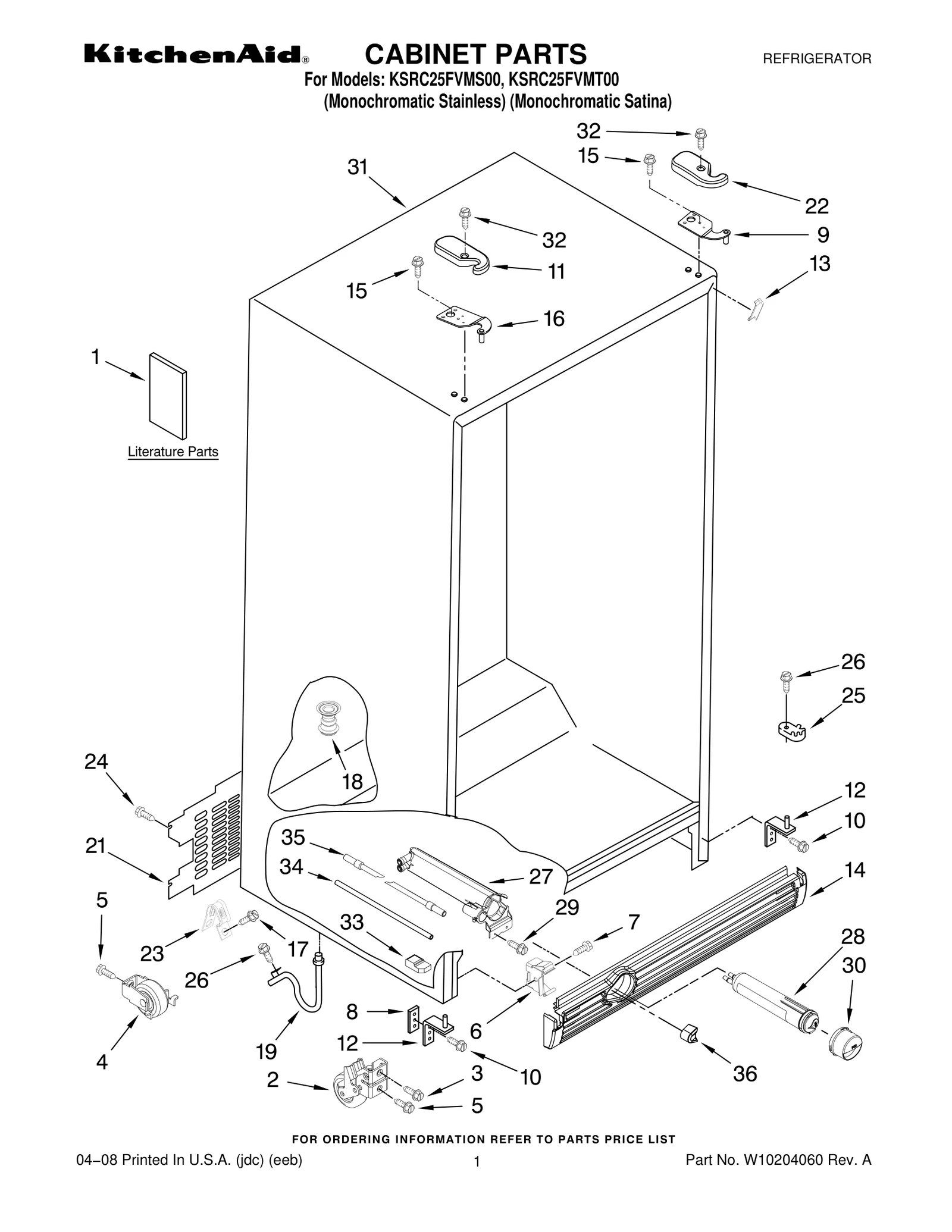

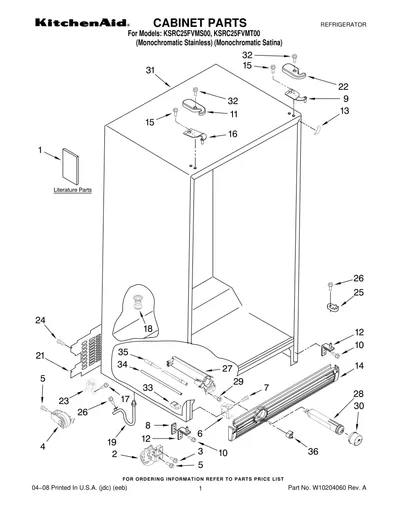

CABINET PARTS
Parts in CABINET PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10162446 Use & Care Guide | - |
| 1 | – | W10180857 Service & Wiring Sheet | - |
| 1 | – | W10194134 Energy Guide | - |
| 1 |  | Modular Icemaker Service Sheet | - |
| 2 |  | Front Roller (2) | Discontinued |
| 3 |  | W10850698replaces 3400517 Screw | $11.71 ApplianceParts Pro |
| 4 |  | WPW10250570replaces 2196236 Roller (Rear) (2) | $29.47 PartSelect |
| 5 |  | WP489427replaces 489427 Screw | $5.00 RepairClinic |
| 6 |  | WP2155013replaces 2155013 Clip, Grille | $3.38 Part Advantage |
| 7 |  | WP489478replaces 489478 Screw | $5.00 RepairClinic |
| 8 |  | WP2181911replaces 2156056 Shim | $13.12 Parts Dr |
| 9 |  | WP2203771replaces 2203771 Hinge Top, RC | $32.72 Part Advantage |
| 10 |  | WP489497replaces 3400113 Screw | $4.19 Part Advantage |
| 11 | | Hinge Cover, FC — Apollo Grey | - |
| 12 |  | Hinge Bottom — RC | - |
| 12 |  | Hinge Bottom — FC | $170.20 RepairClinic |
| 13 | – | W10143043 Filler, Wrapper — Apollo Grey | - |
| 14 |  | WPW10184890replaces W10184890 Grille — Apollo Grey | $118.06 RepairClinic |
| 15 | | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 16 |  | WP2203770replaces 2203770 Hinge, Top FC | $52.41 ApplianceParts Pro |
| 17 |  | WP489464replaces 489464 Screw | $9.62 PartSelect |
| 18 |  | W11566763replaces 2304888 Drain Fitting | $19.22 Part Advantage |
| 19 |  | W11512417replaces 2304937 Tube, Extension | $11.92 Part Advantage |
| 21 |  | WP2188755replaces 2188735 Cover, Unit | $69.02 Part Advantage |
| 22 | | Hinge Cover, RC — Apollo Grey | - |
| 23 |  | Clamp, Service Cord | - |
| 24 | | Screw | $9.62 PartSelect |
| 25 |  | WPW10329686replaces 2155311 Door Closer, Lower Cam (2) | $3.29 Part Advantage |
| 26 |  | WP489483replaces 489483 Screw | $11.77 PartSelect |
| 27 |  | WPW10121138replaces 2260507 Housing, Water Filter | $52.13 Part Advantage |
| 28 |  | EDR3RXD1replaces 4396841 Water Filter | $49.90 Part Advantage |
| 29 |  | WP489500replaces 489500 Screw | $5.00 RepairClinic |
| 30 |  | WP2260518MGreplaces 2260502MG Cap, Water Filter — Midnight Grey | $48.45 PartSelect |
| 31 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 32 |  | WP8281227replaces 8281227 Screw | $4.19 Part Advantage |
| 33 | – | 2260519 Block, Housing Support | - |
| 34 |  | WPW10350006replaces 2255012 Tube, Filter Outlet | $44.46 Parts Dr |
| 35 |  | 8201597replaces 2319867 Tube, Filter Inlet | $24.56 Part Advantage |
| 36 |  | Button, Water Filter — Midnight Grey | - |
