Model
KitchenAid KSRD22FTST02
Refrigerator
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KSRD22FTST02Refrigerator
13 diagrams302 parts

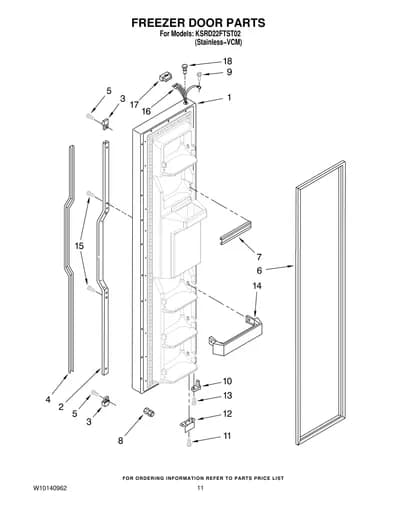

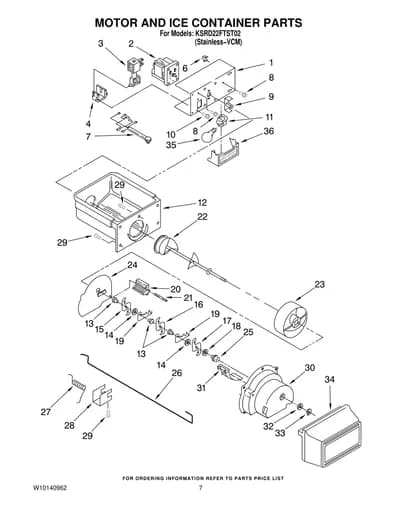

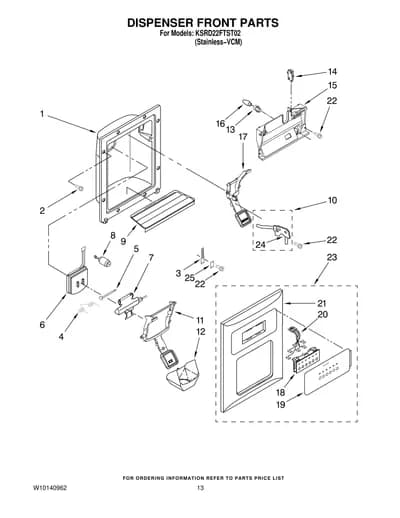

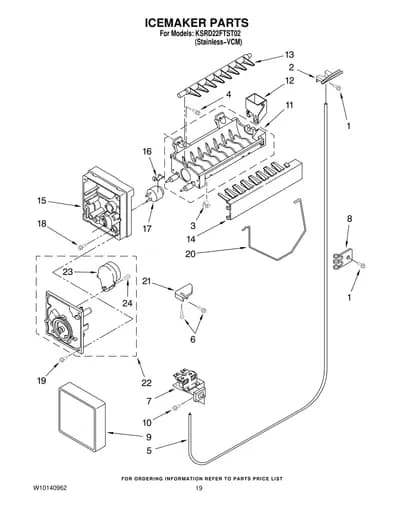

Parts Sections (13)

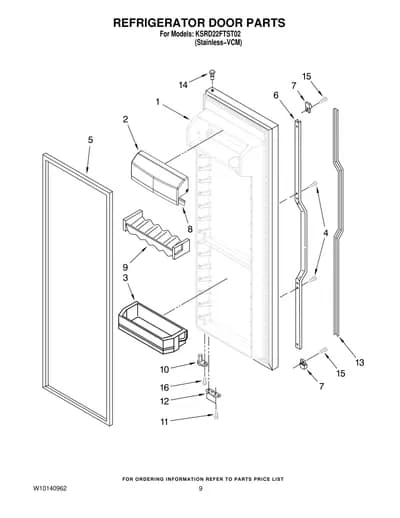

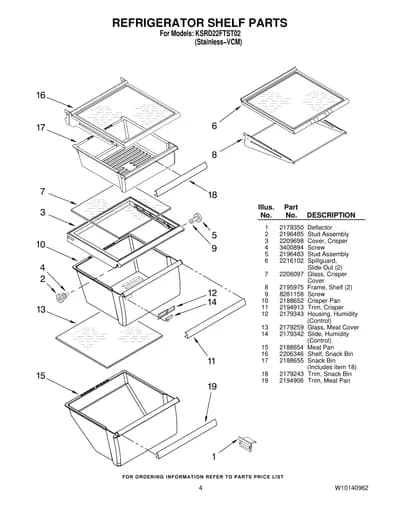

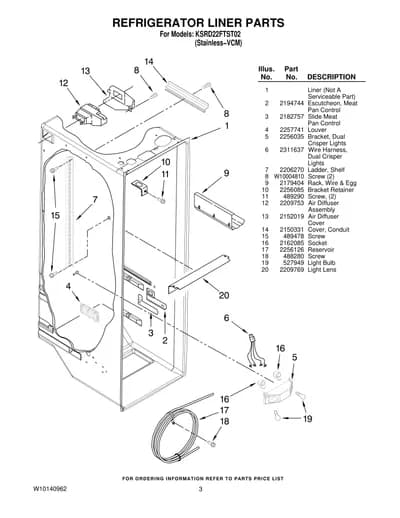

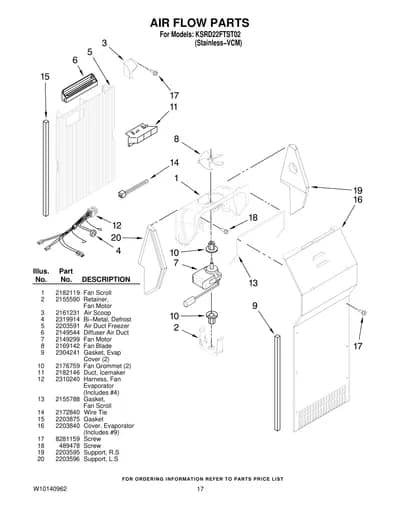

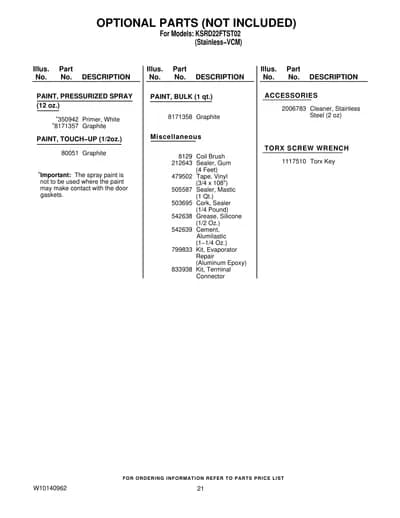

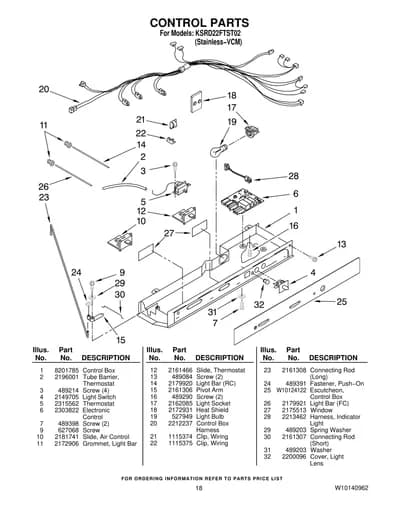

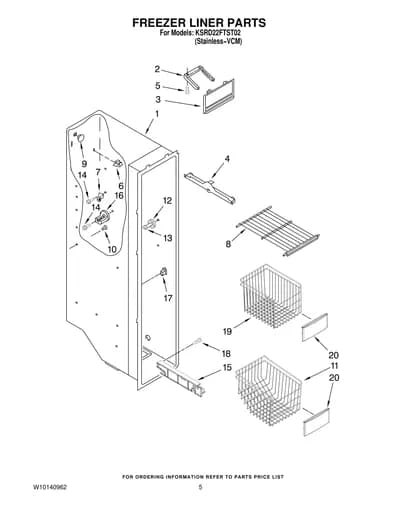

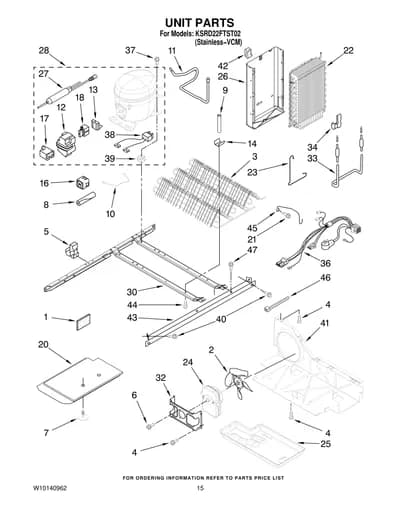

Diagram

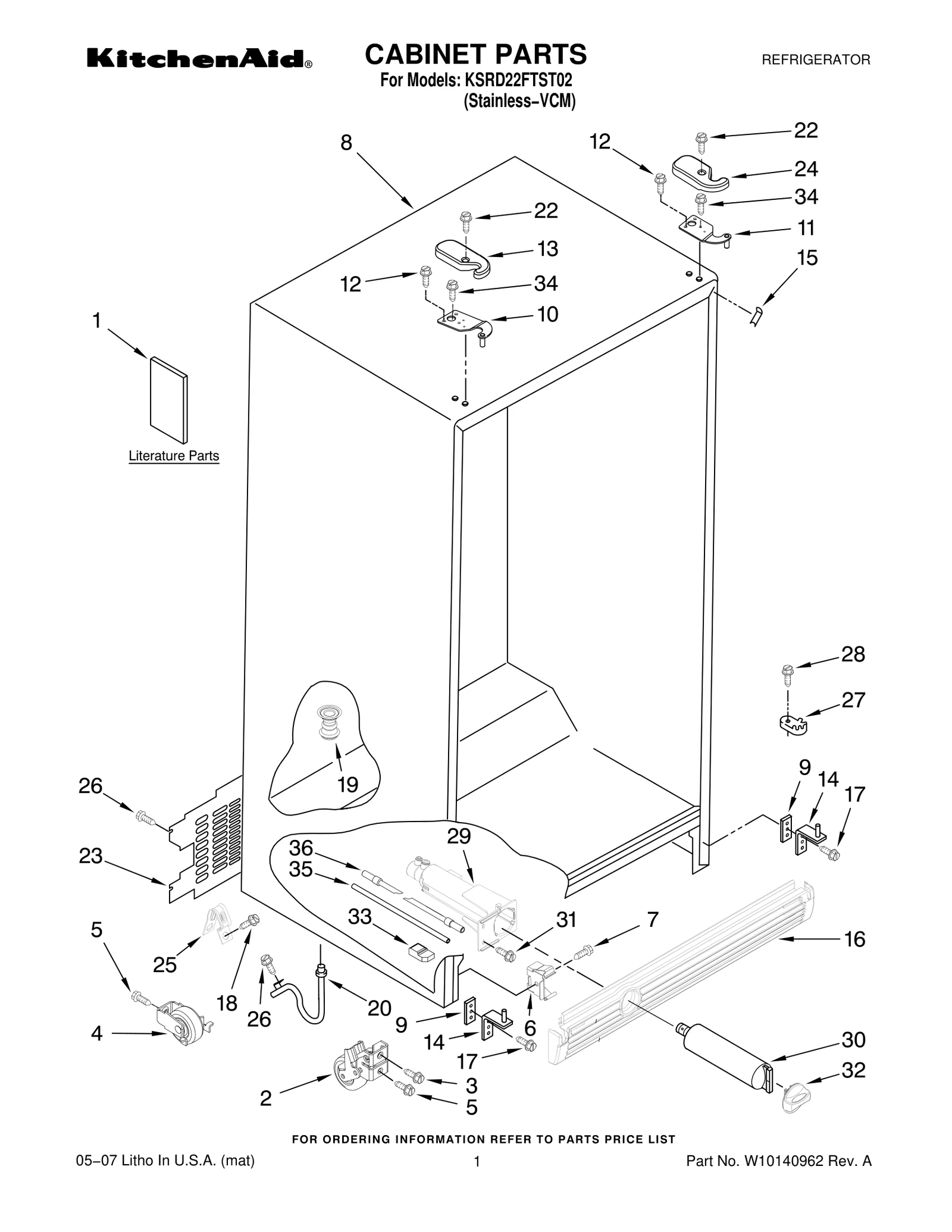

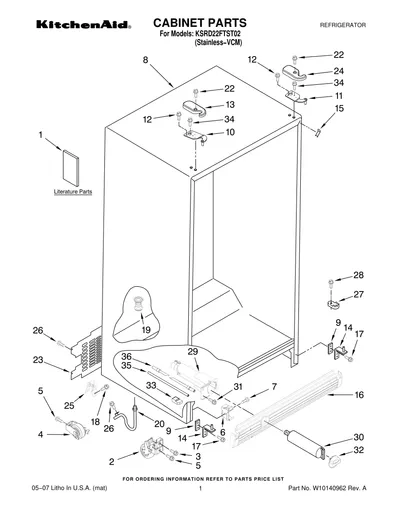

CABINET PARTS
Parts in CABINET PARTS
38 parts

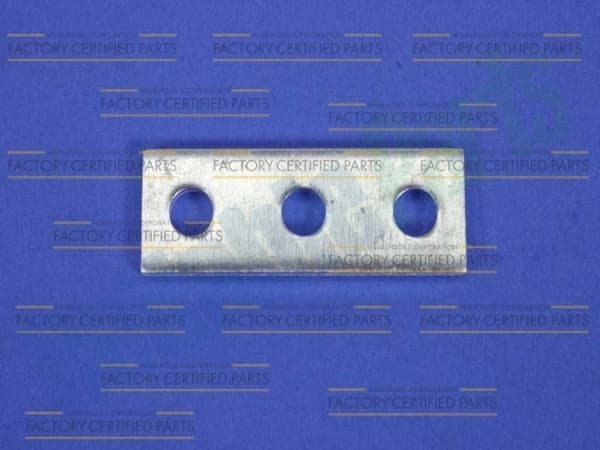

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2318581 Use & Care Guide | - |
| 1 | – | 2255384 Service & Wiring Sheet | - |
| 1 | – | 2326378 Energy Guide | - |
| 1 |  | 628370NLA Modular Icemaker Service Sheet | Discontinued |
| 2 |  | Front Roller (2) | Discontinued |
| 3 |  | W10850698replaces 3400517 Screw | $11.71 ApplianceParts Pro |
| 4 |  | WPW10250570replaces 2196236 Rear Roller (2) | $29.47 PartSelect |
| 5 |  | WP489427replaces 489427 Screw | $5.00 RepairClinic |
| 6 |  | WP2155013replaces 2155013 Clip, Grille | $3.38 Part Advantage |
| 7 |  | WP489128replaces 488500 Screw | $5.96 Parts Dr |
| 8 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 9 |  | WP2209697replaces 2209697 Shim | $44.61 RepairClinic |
| 10 |  | WP2203770replaces 2203770 Hinge Top, FC | $52.41 ApplianceParts Pro |
| 11 |  | WP2203771replaces 2203771 Hinge Top, RC | $32.72 Part Advantage |
| 12 | | WP489128replaces 8281149 Screw | $5.96 Parts Dr |
| 13 |  | WP2203407Breplaces 2203407B Hinge Cover, FC — Black | $13.58 RepairClinic |
| 14 |  | 8201707replaces 2304322 Hinge Bottom | $28.76 Part Advantage |
| 15 | | Filler, Wrapper — Black | - |
| 16 |  | W10802713replaces 2198467B Grille — Black | - |
| 17 |  | WP489497replaces 3400113 Screw | $4.19 Part Advantage |
| 18 |  | WP489464replaces 489464 Screw | $9.62 PartSelect |
| 19 |  | W11566763replaces 2304888 Drain Fitting | $19.22 Part Advantage |
| 20 |  | W11512417replaces 2304937 Extension Tube | $11.92 Part Advantage |
| 22 |  | WP8281227replaces 8281227 Screw | $4.19 Part Advantage |
| 23 |  | WP2188756replaces 2188734 Cover, Unit | $82.95 ApplianceParts Pro |
| 24 |  | WP2203408Breplaces 2203408B Hinge Cover, RC — Black | $13.41 RepairClinic |
| 25 |  | Clamp, Service Cord | - |
| 26 | | Screw | $9.62 PartSelect |
| 27 |  | WPW10329686replaces 2155311 Door Closer, Lower Cam (2) | $3.29 Part Advantage |
| 28 |  | WP489483replaces 489483 Screw | $11.77 PartSelect |
| 29 |  | WP2186443replaces 2186443 Housing, Water Filter | $37.39 Part Advantage |
| 30 |  | EDR5RXD1replaces 2255519 Water Filter | $46.87 Part Advantage |
| 31 |  | WP489500replaces 489500 Screw | $5.00 RepairClinic |
| 32 |  | WP2186494Breplaces 2186494B Cap, Water Filter — Black | $19.35 Part Advantage |
| 33 | | Block, Housing Support | - |
| 34 | | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 35 |  | WPW10350006replaces 2304708 Tube, Filter Outlet | $44.46 Parts Dr |
| 36 |  | 8201597replaces 2319867 Tube, Filter Inlet | $24.56 Part Advantage |
