Model
KitchenAid KSRY25CVMS00
Refrigerator
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KSRY25CVMS00Refrigerator
13 diagrams325 parts

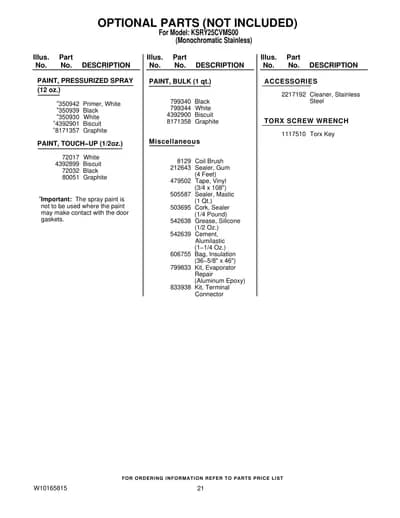

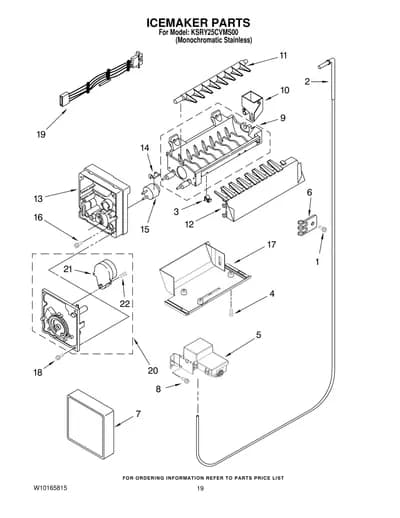

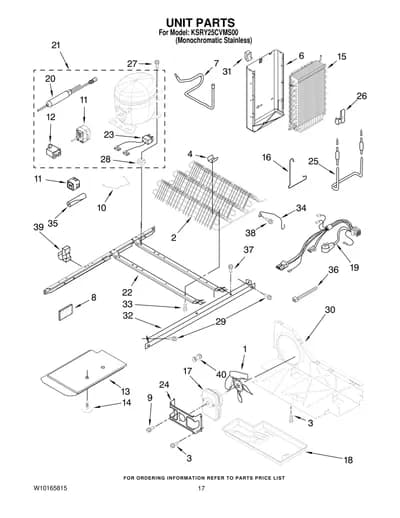

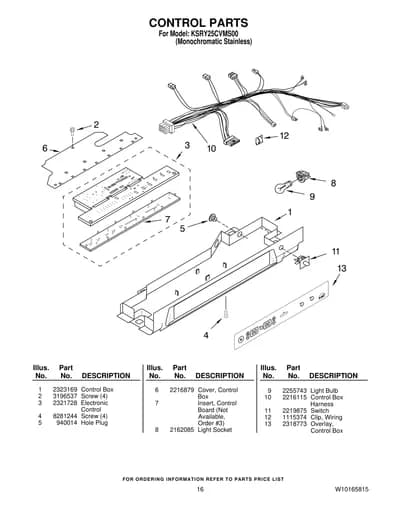

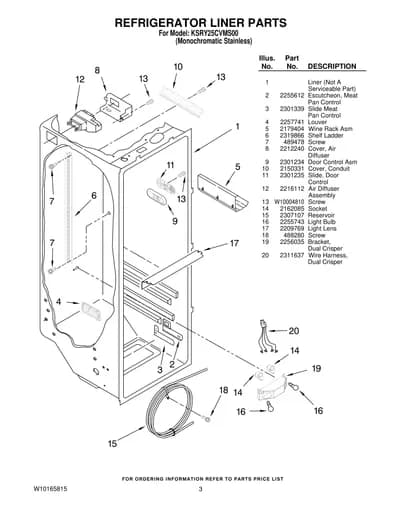

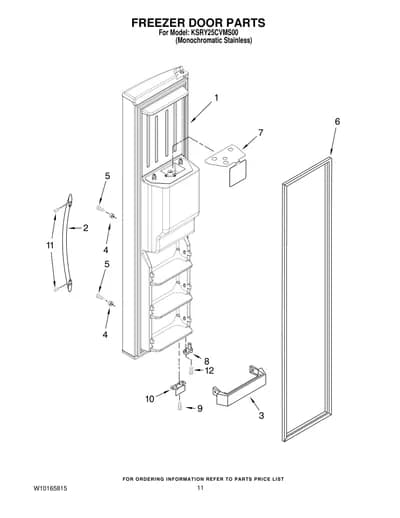

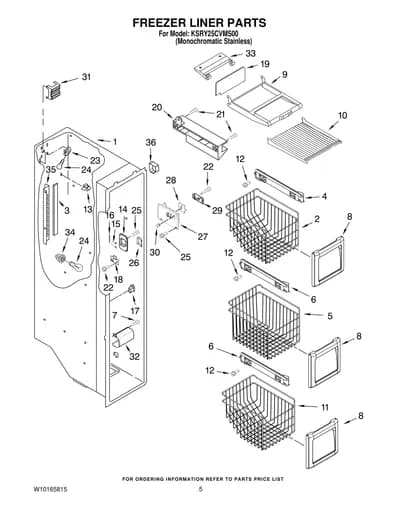

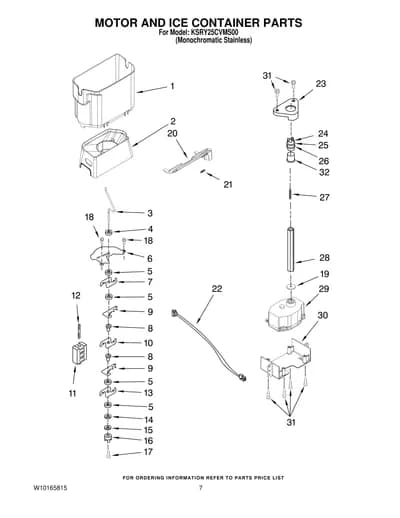

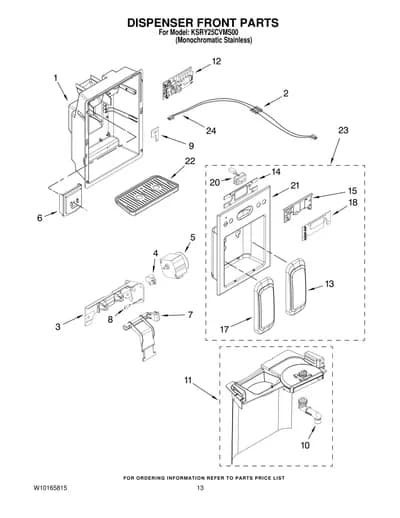

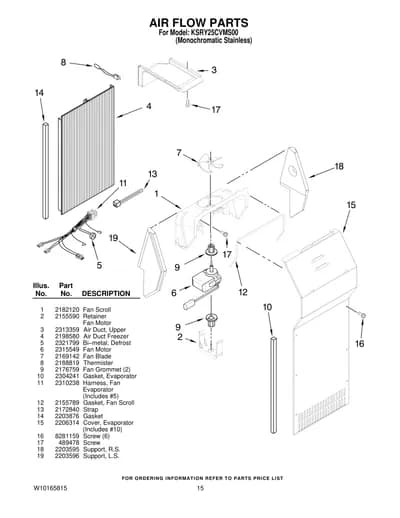

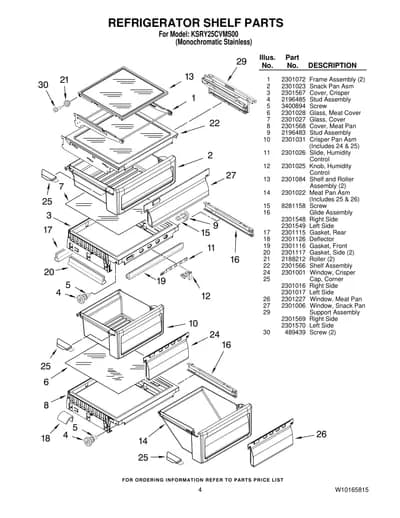

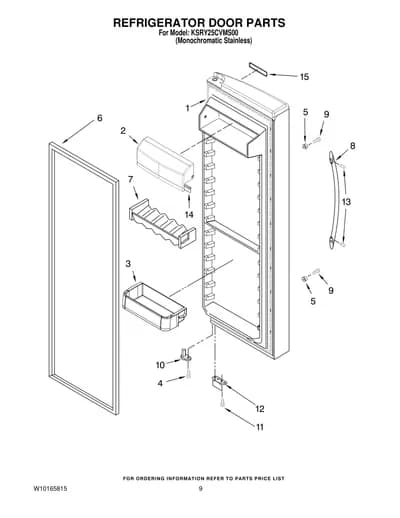

Parts Sections (13)
Diagram

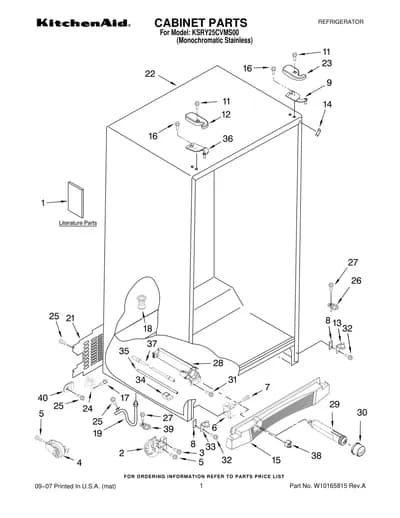

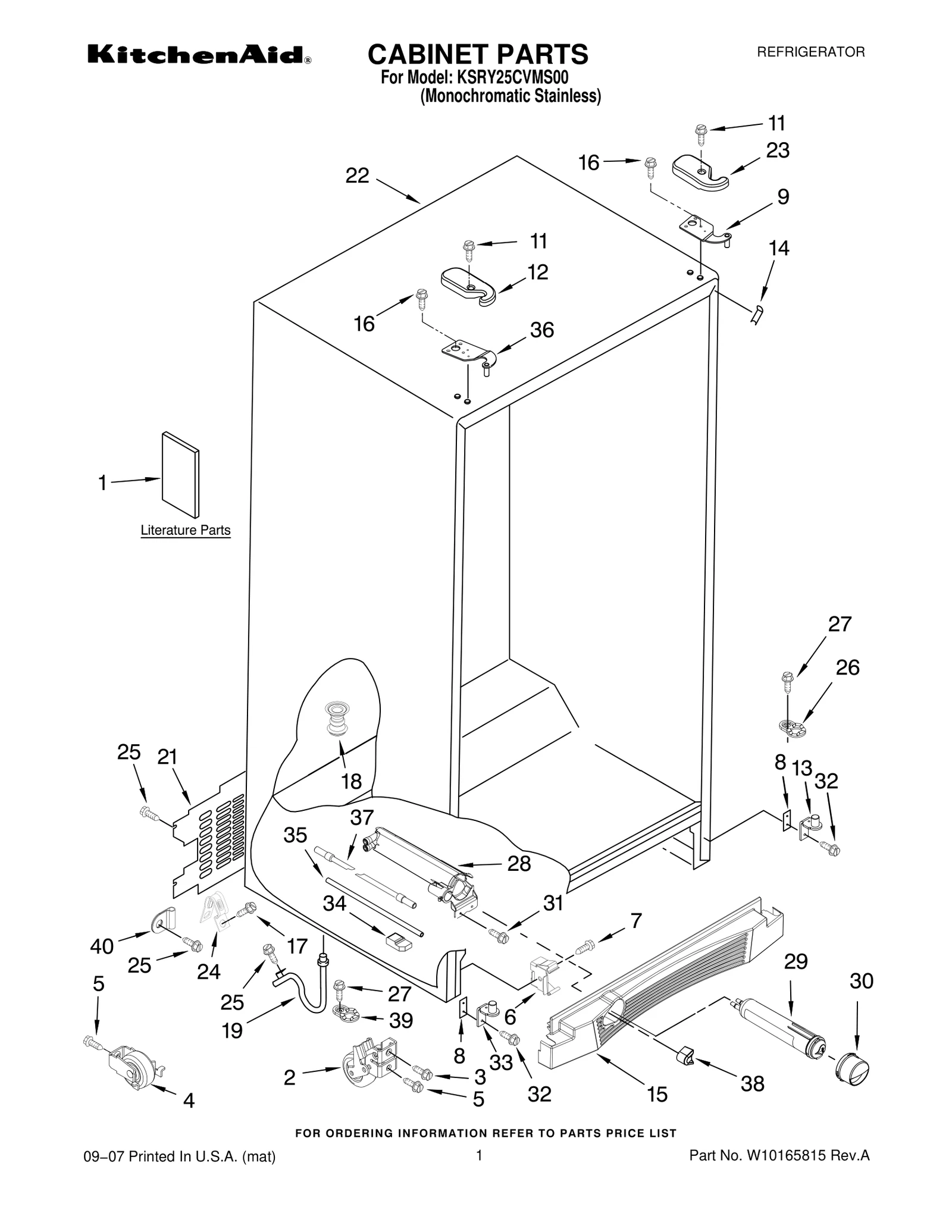

CABINET PARTS
Parts in CABINET PARTS
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2315184 Owner’s Manual | - |
| 1 | – | 2303925 Service Sheet | - |
| 1 | – | W10142183 Wiring Sheet | - |
| 1 | – | W10162149 Energy Guide | - |
| 1 |  | Modular Icemaker Service Sheet | - |
| 1 | – | 2308395 Instruction Sheet, Door Removal | - |
| 2 |  | Front Roller (2) | Discontinued |
| 3 |  | W10850698replaces 3400517 Screw | $11.71 ApplianceParts Pro |
| 4 |  | WPW10250570replaces 2196236 Roller (Rear) (2) | $29.47 PartSelect |
| 5 |  | WP489427replaces 489427 Screw | $5.00 RepairClinic |
| 6 |  | WP2155013replaces 2155013 Clip, Grille | $3.38 Part Advantage |
| 7 |  | WP489128replaces 488500 Screw | $5.96 Parts Dr |
| 8 |  | WP2181911replaces 2156056 Shim | $13.12 Parts Dr |
| 9 |  | WP2203771replaces 2203771 Hinge Top (RC) | $32.72 Part Advantage |
| 11 |  | WP8281227replaces 8281227 Screw | $4.19 Part Advantage |

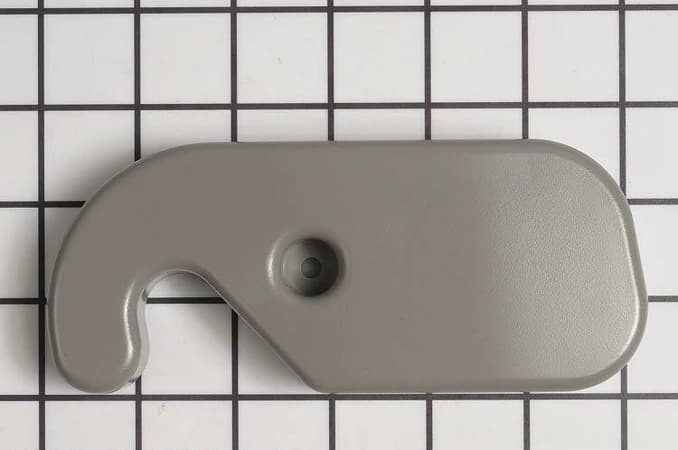

| 12 |  | Hinge Cover — Apollo Gray | - |
| 13 |  | 8201707replaces 2304322 Bottom Hinge (RC) | $28.76 Part Advantage |
| 14 | – | W10143043 Filler, Wrapper — Apollo Gray | - |
| 15 | | 2303292APNLA Grille — Apollo Gray | Discontinued |
| 16 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 17 |  | WP489464replaces 489464 Screw | $9.62 PartSelect |
| 18 |  | W11566763replaces 2304888 Drain Fitting | $19.22 Part Advantage |
| 19 |  | W11512417replaces 2304937 Extension Tube | $11.92 Part Advantage |
| 21 |  | WP2188755replaces 2188735 Cover, Unit | $69.02 Part Advantage |
| 22 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 23 |  | Hinge Cover — Apollo Gray | - |
| 24 |  | Clamp, Service Cord | - |
| 25 | | Screw | $9.62 PartSelect |
| 26 |  | WPW10329686replaces 2155311 Door Closer, RC | $3.29 Part Advantage |
| 27 |  | WP489483replaces 489483 Screw | $11.77 PartSelect |
| 28 |  | WPW10121138replaces 2260507 Housing, Water Filter | $52.13 Part Advantage |
| 29 |  | EDR3RXD1replaces 4396841 Water Filter | $49.90 Part Advantage |
| 30 |  | WP2260518APreplaces 2260502AP Cap, Water Filter — Apollo Gray | $20.92 Part Advantage |
| 31 |  | WP489500replaces 489500 Screw | $5.00 RepairClinic |
| 32 | | WP489497replaces 3400113 Screw | $4.19 Part Advantage |
| 33 |  | Bottom Hinge (FC) | $170.20 RepairClinic |
| 34 | – | 2260519 Block, Housing Support | - |
| 35 |  | WPW10350006replaces 2304708 Tube, Filter Outlet | $44.46 Parts Dr |
| 36 |  | WP2203770replaces 2203770 Hinge Top (FC) | $52.41 ApplianceParts Pro |
| 37 |  | 8201597replaces 2319867 Tube, Filter Inlet | $24.56 Part Advantage |
| 38 | | 2260503APNLA Button, Water Filter — Apollo Gray | Discontinued |
| 39 | | W11778262replaces 2223751 Door Closer, FC | $6.89 ApplianceParts Pro |
| 40 | | 2185960replaces 2305373 Clamp, Cord | - |
