KitchenAid KUCK03ITBL0
Trash Compactor
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUCK03ITBL0Trash Compactor
6 diagrams140 parts

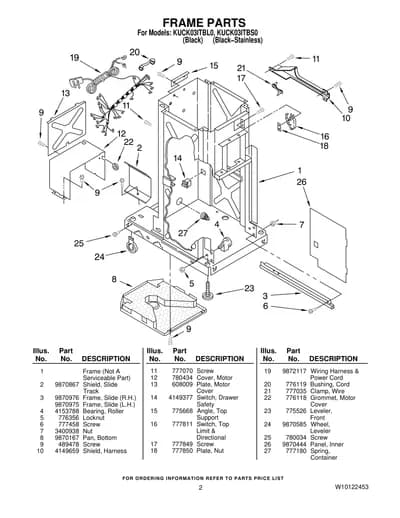

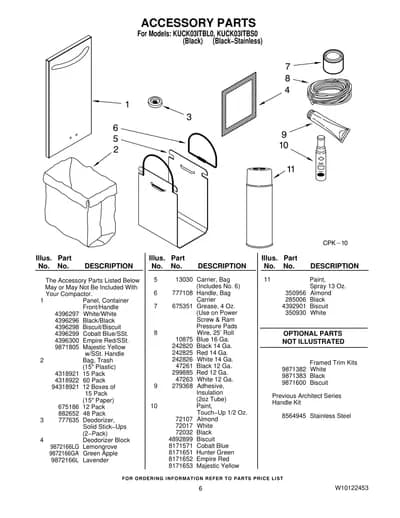

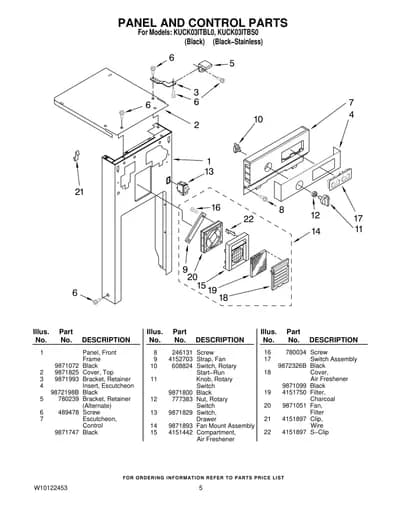

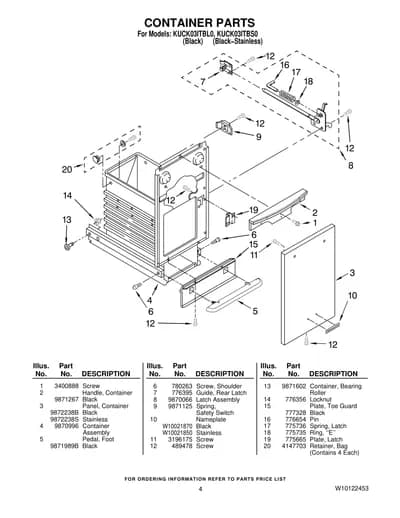

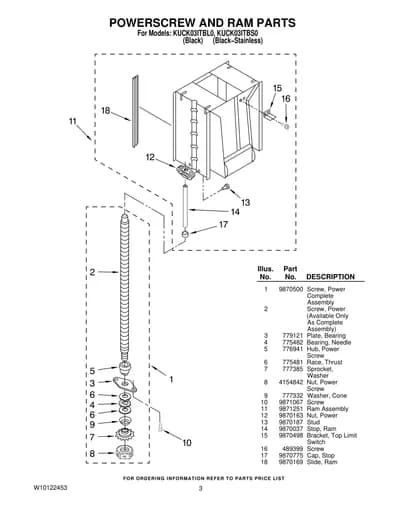

Parts Sections (6)
Diagram

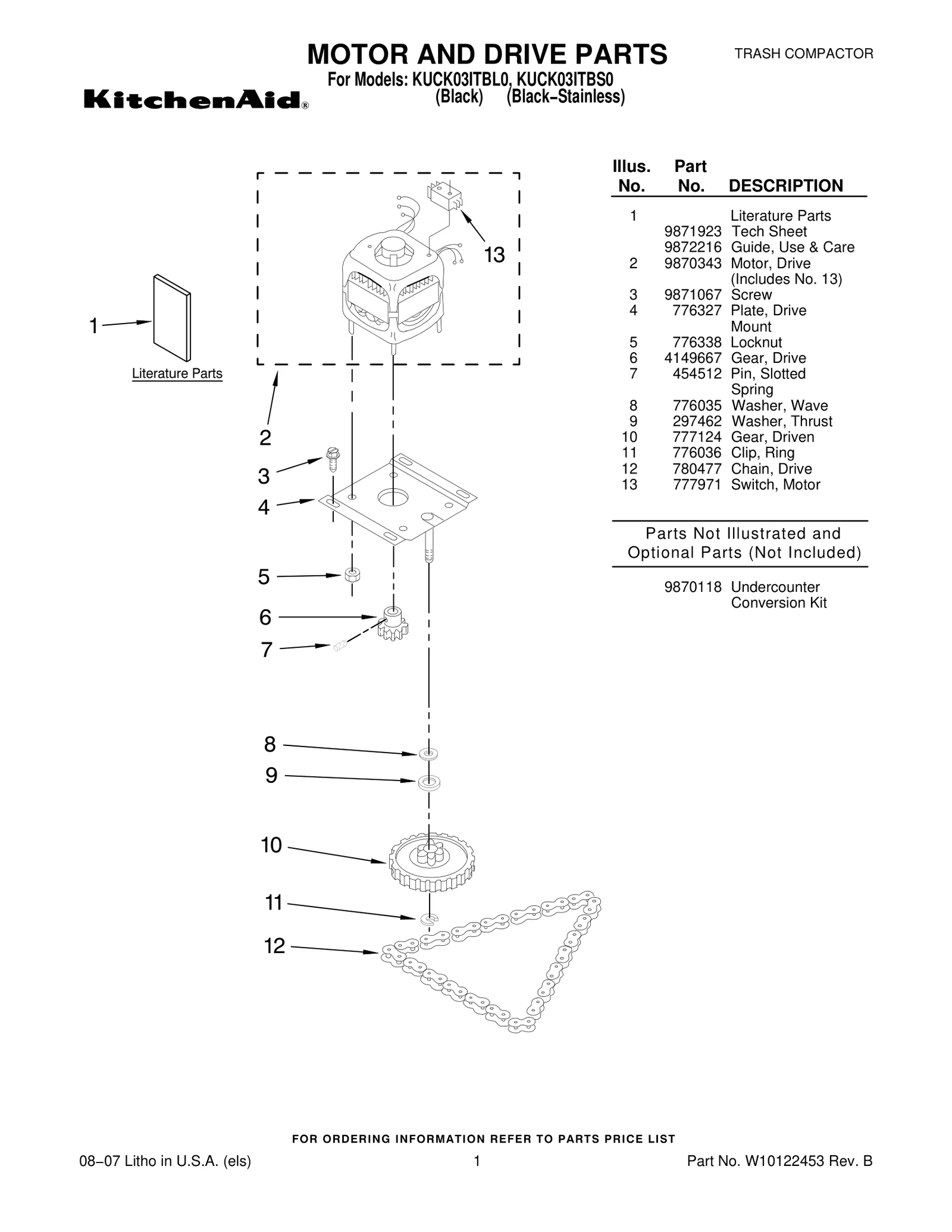

MOTOR AND DRIVE PARTS
Parts in MOTOR AND DRIVE PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9871923 Tech Sheet | - |
| 1 | – | 9872216 Guide, Use & Care | - |
| 2 |  | W10439651replaces 9870343 Motor, Drive | $138.88 Part Advantage |
| 3 |  | WP8204624replaces 9871067 Screw | $8.07 Part Advantage |
| 4 |  | Plate, Drive Mount | - |
| 5 |  | WP776338replaces 776338 Locknut | - |
| 6 |  | 882699replaces 4149667 Gear, Drive | $41.82 Part Advantage |
| 7 |  | WP454512replaces 454512 Pin, Slotted Spring | $9.57 ApplianceParts Pro |
| 8 |  | Washer, Wave | - |
| 9 |  | W11214485replaces 297462 Washer, Thrust | $9.23 RepairClinic |
| 10 | | 882699replaces 777124 Gear, Driven | $41.82 Part Advantage |
| 11 |  | WP776036replaces 776036 Clip, Ring | $9.57 ApplianceParts Pro |
| 12 |  | Chain, Drive | - |
| 13 | | W10439651replaces 777971 Switch, Motor Parts Not Illustrated and | $138.88 Part Advantage |
| 13 |  | 9870118Areplaces 9870118 Undercounter Conversion Kit 08−07 Litho in U.S.A. (els) | $47.09 RepairClinic |
