Model
KitchenAid KUDC03FVSS0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDC03FVSS0Undercounter Dishwasher
12 diagrams167 parts
Parts Sections (12)

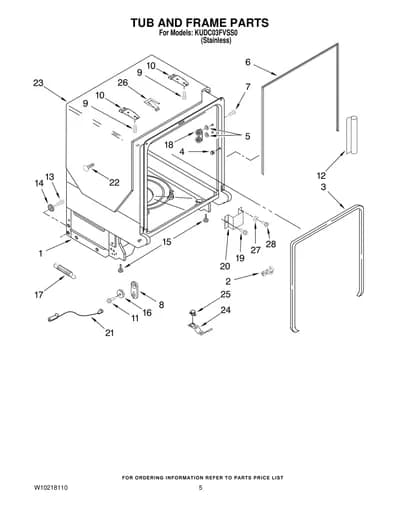

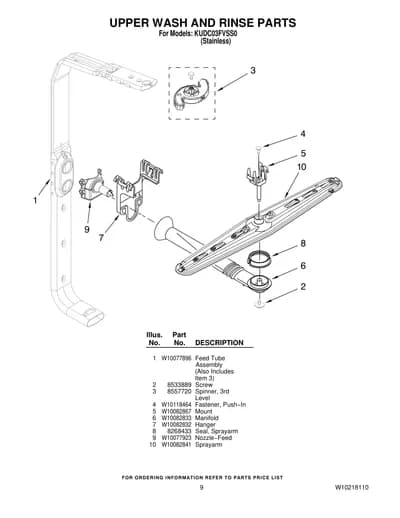

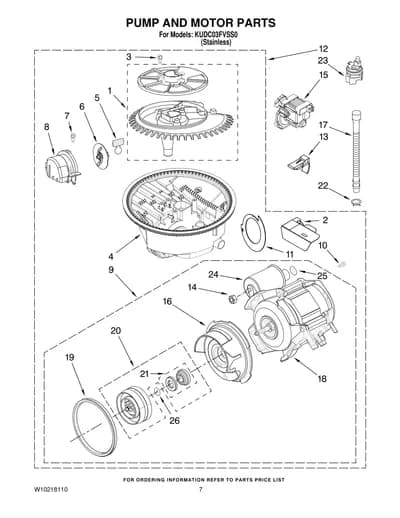

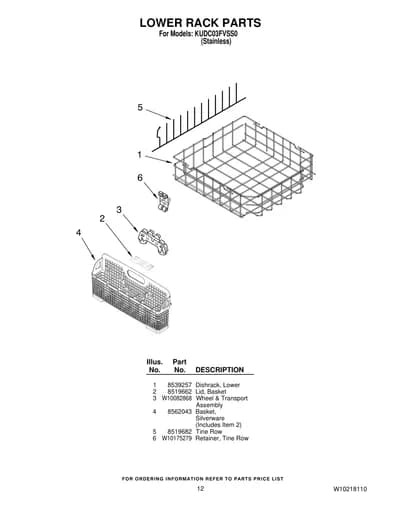

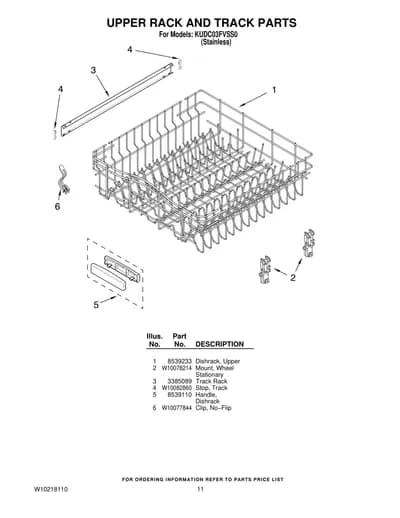

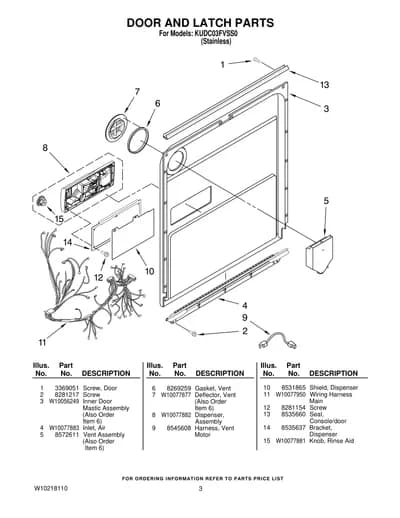

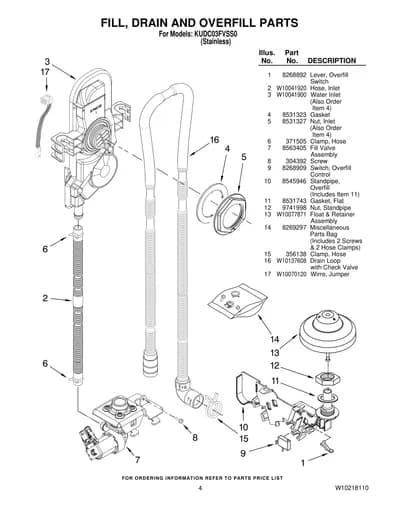

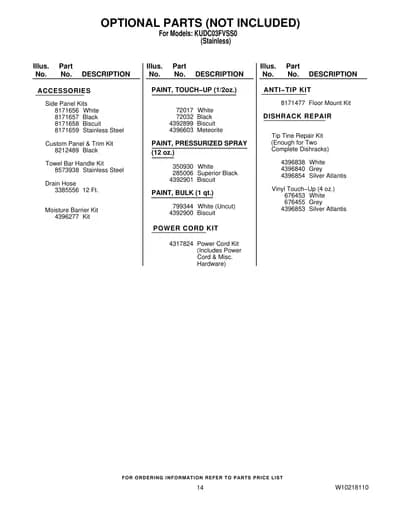

Diagram

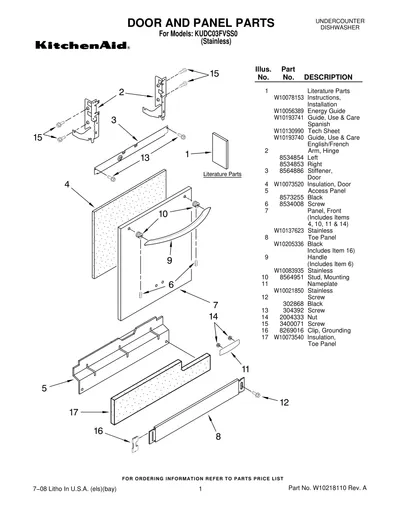

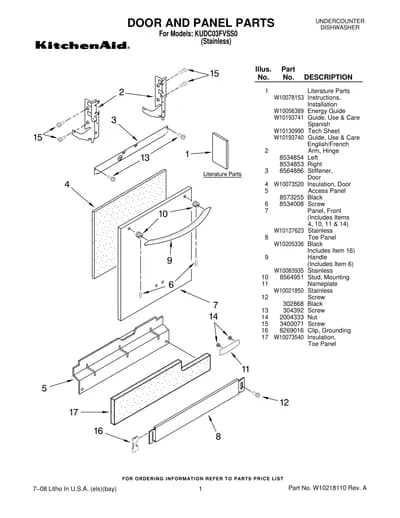

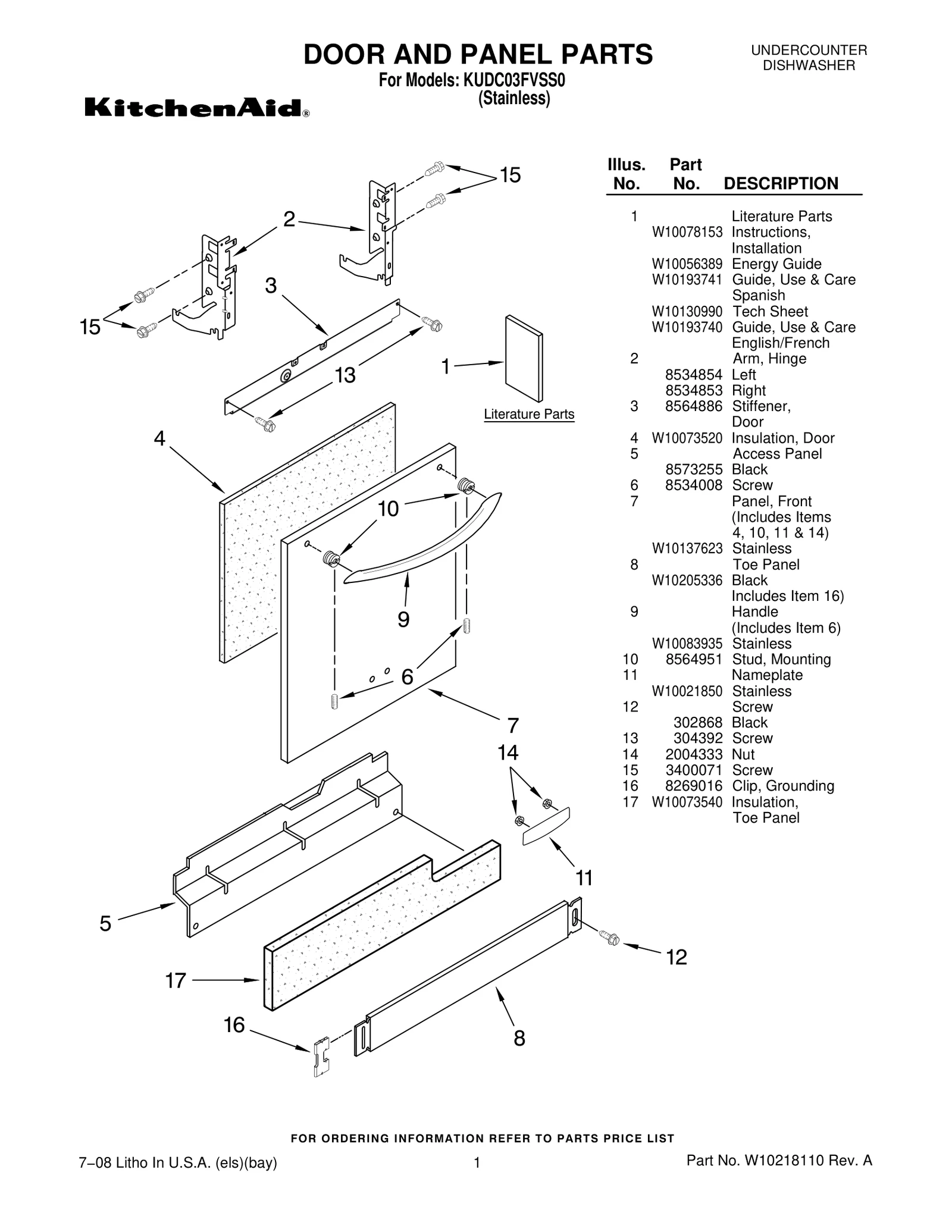

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10078153 Instructions, Installation | - |
| 1 | – | W10056389 Energy Guide | - |
| 1 | – | W10193741 Guide, Use & Care Spanish | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 1 | – | W10193740 Guide, Use & Care English/French | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 | | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 6 |  | WP8534008replaces 8534008 Screw | $2.20 Part Advantage |
| 7 | | W10137623NLA Panel, Front (Includes Items 4, 10, 11 & 14) — Stainless | Discontinued |
| 8 |  | W10871196replaces W10205336 Toe Panel — Black | $66.43 Amazon |
| 9 |  | W10195738Areplaces W10083935 Handle — Stainless | $27.33 Parts Dr |
| 10 |  | WP8564951replaces 8564951 Stud, Mounting | $8.70 Parts Dr |
| 11 |  | Nameplate — Stainless | - |
| 12 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 13 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 14 | | WP2004333replaces 2004333 Nut | - |
| 15 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 16 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 17 |  | W10831329replaces W10073540 Insulation, Toe Panel | $15.72 Part Advantage |
