Model
KitchenAid KUDD03DTBL10
Drawer Dishwasher
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDD03DTBL10Drawer Dishwasher
8 diagrams125 parts

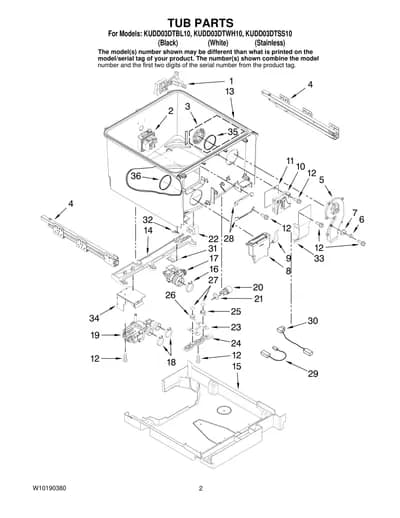

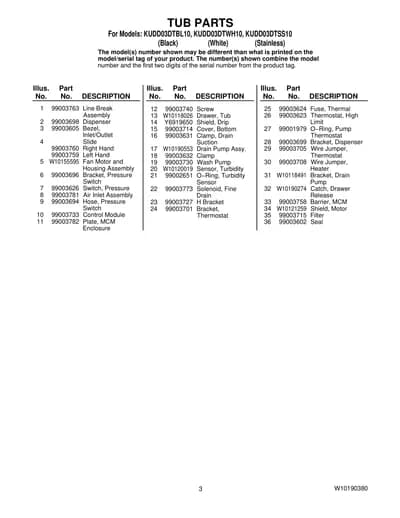

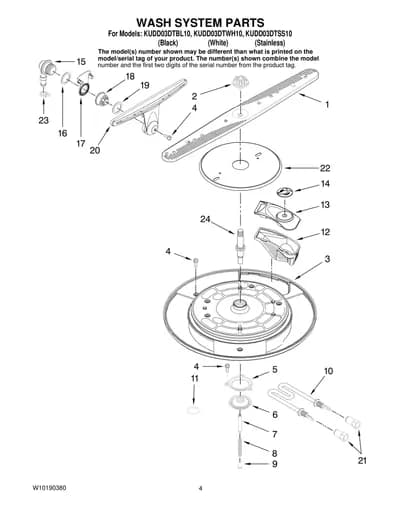

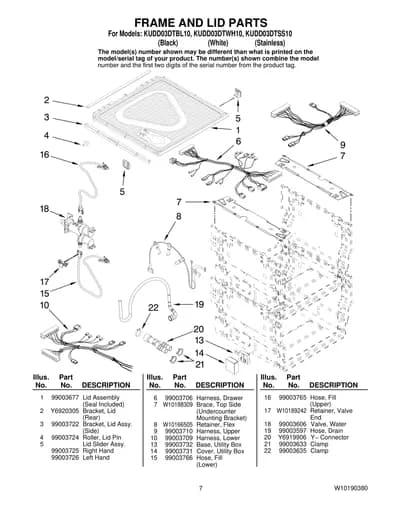

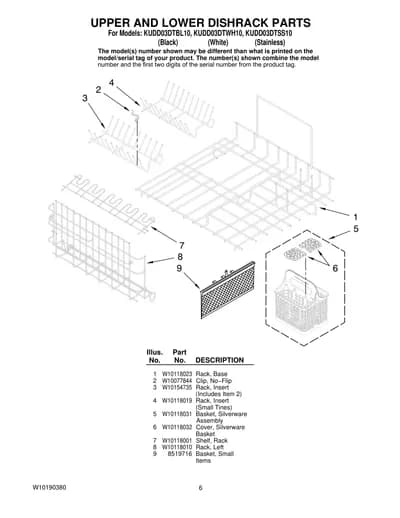

Parts Sections (8)
Diagram

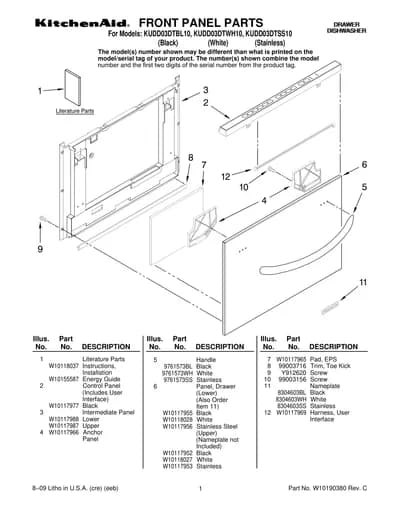

FRONT PANEL PARTS
Parts in FRONT PANEL PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10118037 Instructions, Installation | - |
| 1 | – | W10155587 Energy Guide | - |
| 2 |  | W10117977NLA Control Panel (Includes User Interface) — Black | Discontinued |
| 3 |  | Intermediate Panel — Lower | - |
| 3 | | W10117987NLA Intermediate Panel — Upper | Discontinued |
| 4 | | W10117966NLA Anchor Panel | Discontinued |
| 5 | | 9761573BLNLA Handle — Black | Discontinued |
| 5 | | Handle — White | - |
| 5 | | 9761573SSNLA Handle — Stainless | Discontinued |
| 6 |  | Panel, Drawer (Also Order Item 11) — Black | $108.29 PartSelect |
| 6 | | Panel, Drawer (Also Order Item 11) — White | - |
| 6 | | Panel, Drawer (Also Order Item 11) — Stainless Steel | $106.19 RepairClinic |
| 6 | | Panel, Drawer (Also Order Item 11) — Black | - |
| 6 | – | W10118027 Panel, Drawer (Also Order Item 11) — White | - |
| 6 | | Panel, Drawer (Also Order Item 11) — Stainless | - |
| 7 | | Pad, EPS | - |
| 8 | | 99003716NLA Trim, Toe Kick | Discontinued |
| 9 |  | WPY912620replaces Y912620 Screw | $7.47 PartSelect |
| 10 |  | WPW10001180replaces 99003156 Screw | $4.73 ApplianceParts Pro |
| 11 | | Nameplate — Black | - |
| 11 | | Nameplate — White | - |
| 11 | | 8304603SSNLA Nameplate — Stainless | Discontinued |
| 12 |  | Harness, User Interface 8−09 Litho in U.S.A. (cre) (eeb) | - |
