KitchenAid KUDD03DTPA10
Drawer Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDD03DTPA10Drawer Dishwasher
7 diagrams111 parts
Parts Sections (7)

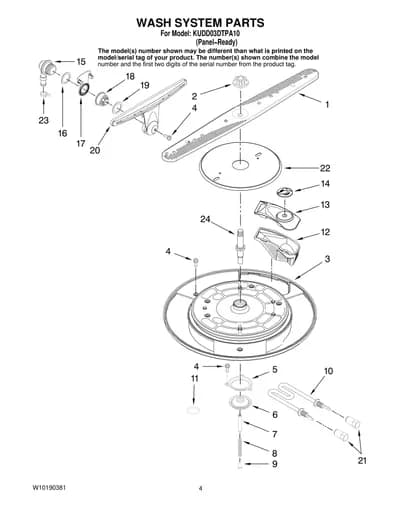

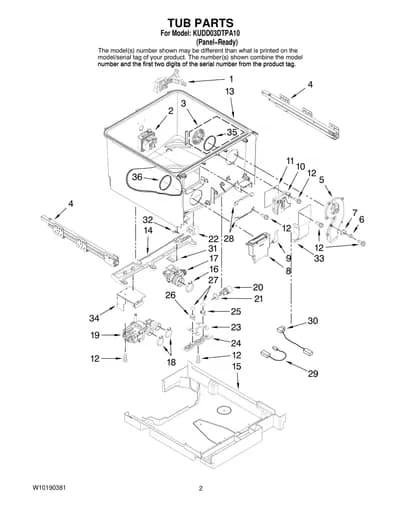

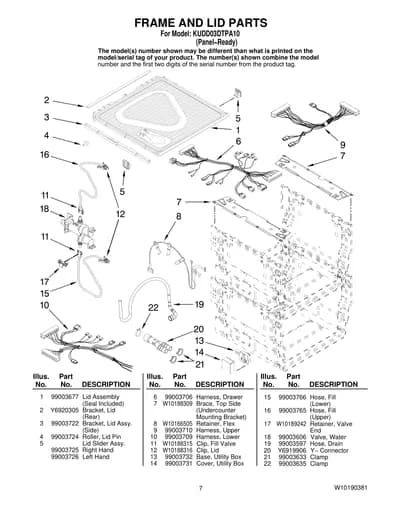

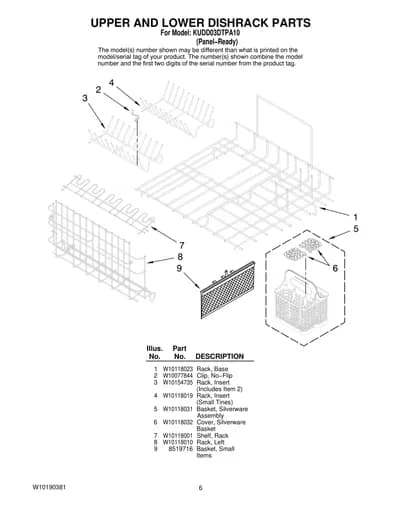

Diagram

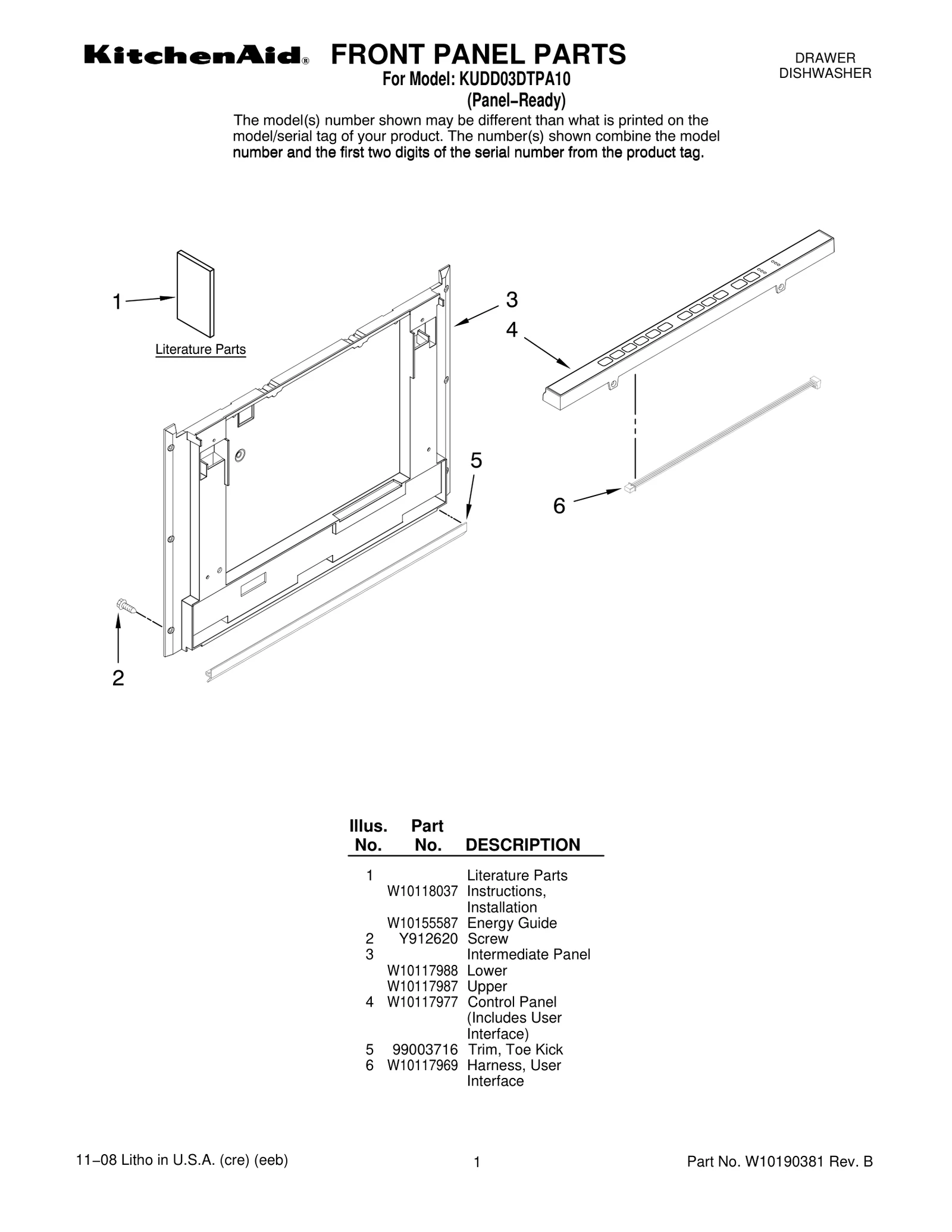

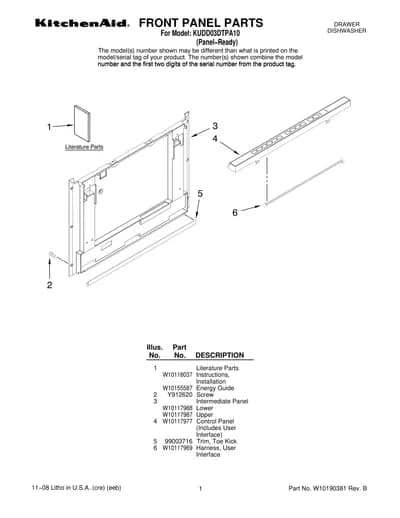

FRONT PANEL PARTS
Parts in FRONT PANEL PARTS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10118037 Instructions, Installation | - |
| 1 | – | W10155587 Energy Guide | - |
| 2 |  | WPY912620replaces Y912620 Screw | $7.47 PartSelect |
| 3 |  | Intermediate Panel — Lower | - |
| 3 |  | W10117987NLA Intermediate Panel — Upper | Discontinued |
| 4 | | W10117977NLA Control Panel (Includes User Interface) | Discontinued |
| 5 | | 99003716NLA Trim, Toe Kick | Discontinued |
| 6 |  | Harness, User Interface | - |
