Model
KitchenAid KUDD03STWH10
Drawer Dishwasher
Parts Sections (6)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDD03STWH10Drawer Dishwasher
6 diagrams118 parts
Parts Sections (6)
Diagram

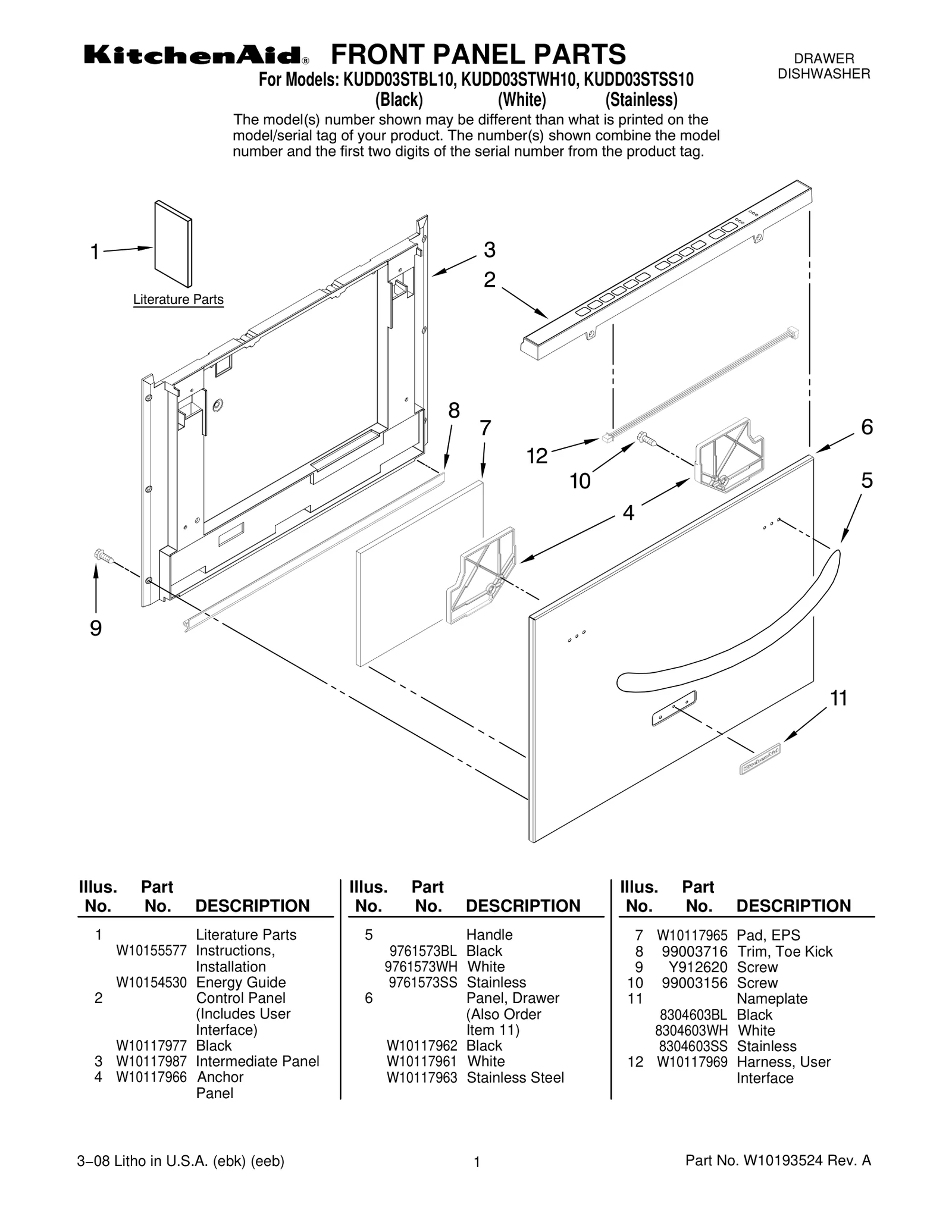

FRONT PANEL PARTS

Parts in FRONT PANEL PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10155577 Instructions, Installation | - |
| 1 | – | W10154530 Energy Guide | - |
| 2 | W10117977NLA Control Panel (Includes User Interface) — Black | Discontinued | |
| 3 | W10117987NLA Intermediate Panel | Discontinued | |
| 4 | W10117966NLA Anchor Panel | Discontinued | |
| 5 | 9761573BLNLA Handle — Black | Discontinued | |
| 5 | Handle — White | - | |
| 5 | 9761573SSNLA Handle — Stainless | Discontinued | |
| 6 | Panel, Drawer (Also Order Item 11) — Black | - | |
| 6 | – | W10117961 Panel, Drawer (Also Order Item 11) — White | - |
| 6 | Panel, Drawer (Also Order Item 11) — Stainless Steel | - | |
| 7 | Pad, EPS | - | |
| 8 | 99003716NLA Trim, Toe Kick | Discontinued | |
| 9 | ![]() | WPY912620replaces Y912620 Screw | $7.47 PartSelect |
| 10 | ![]() | WPW10001180replaces 99003156 Screw | $4.73 ApplianceParts Pro |
| 11 | Nameplate — Black | - | |
| 11 | Nameplate — White | - | |
| 11 | 8304603SSNLA Nameplate — Stainless | Discontinued | |
| 12 | ![]() | Harness, User Interface | - |
