Model
KitchenAid KUDL03ITSS1
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDL03ITSS1Undercounter Dishwasher
12 diagrams171 parts

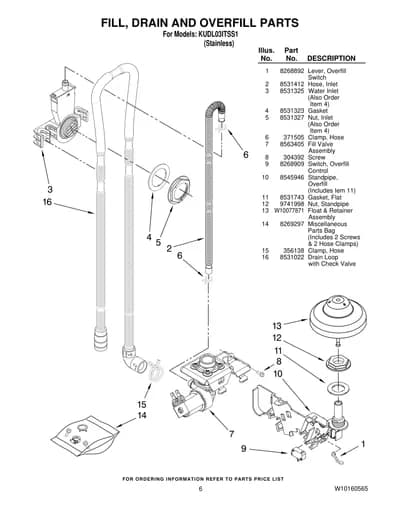

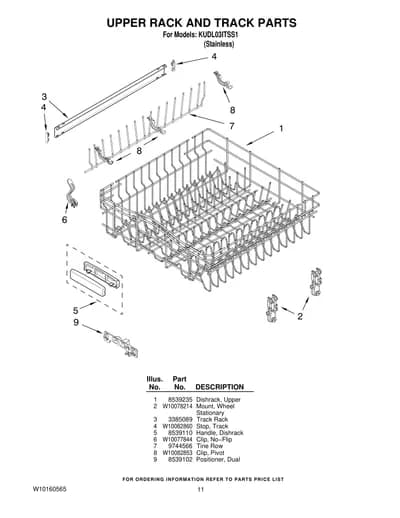

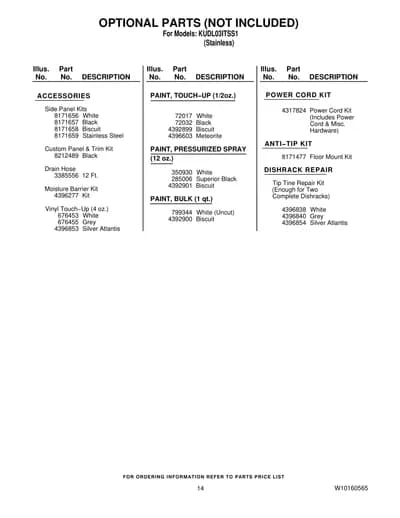

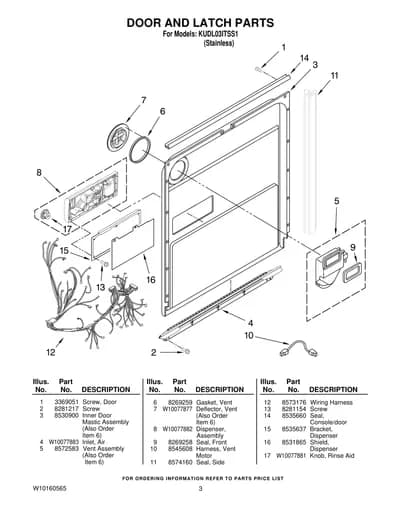

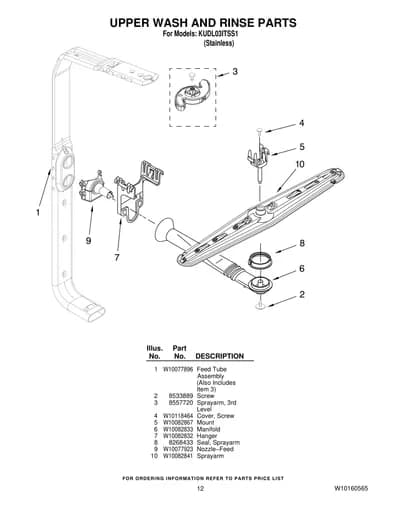

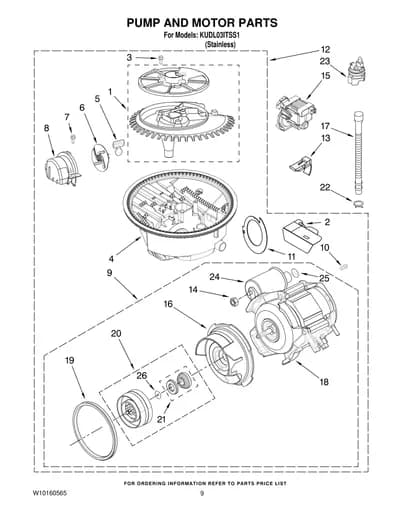

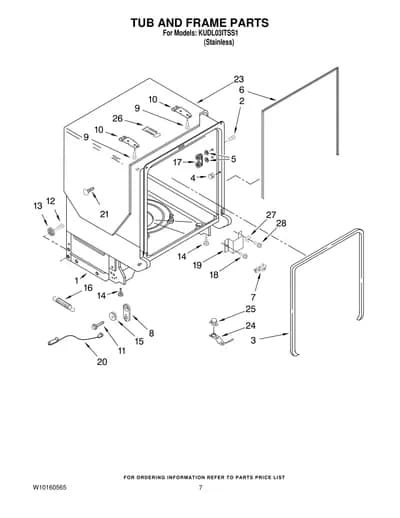

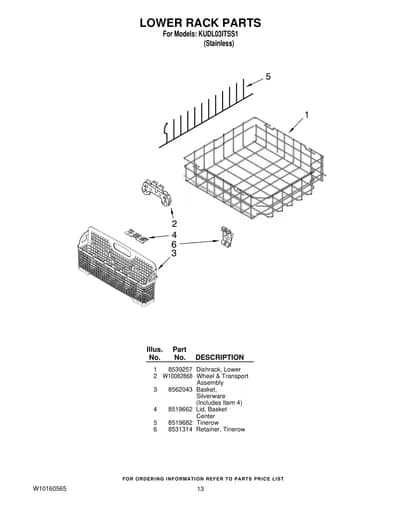

Parts Sections (12)
Diagram

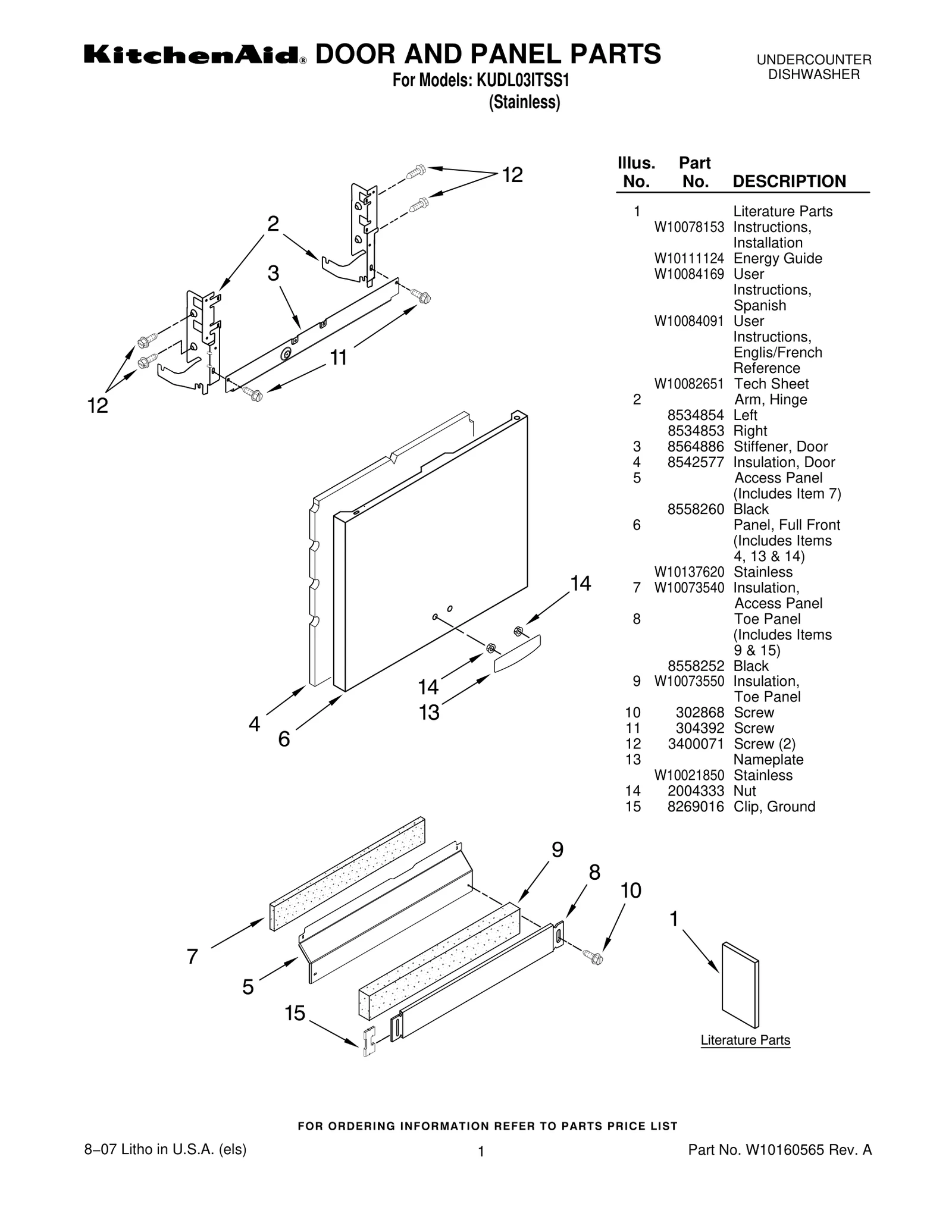

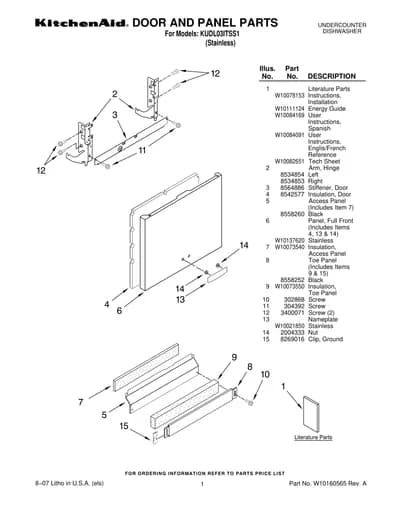

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10078153 Instructions, Installation | - |
| 1 | – | W10111124 Energy Guide | - |
| 1 | – | W10084169 User Instructions, Spanish | - |
| 1 | – | W10084091 User Instructions, Englis/French Reference | - |
| 1 | – | W10082651 Tech Sheet | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 |  | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | WPW10073520replaces 8542577 Insulation, Door | $50.57 ApplianceParts Pro |
| 5 |  | W11763736replaces 8558260 Access Panel — Black | $16.47 Part Advantage |
| 6 |  | W10349340replaces W10137620 Panel, Full Front (Includes Items 4, 13 & 14) — Stainless | $289.62 RepairClinic |
| 7 |  | W10831329replaces W10073540 Insulation, Access Panel | $15.72 Part Advantage |
| 8 |  | W10871196replaces 8558252 Toe Panel (Includes Items 9 & 15) — Black | $66.43 Amazon |
| 9 | | W10831329replaces W10073550 Insulation, Toe Panel | $15.72 Part Advantage |
| 10 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 11 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 12 |  | WP3400071replaces 3400071 Screw (2) | $2.30 Part Advantage |
| 13 |  | Nameplate — Stainless | - |
| 14 | | WP2004333replaces 2004333 Nut | - |
| 15 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
