Model
KitchenAid KUDL03IVBL0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDL03IVBL0Undercounter Dishwasher
12 diagrams175 parts

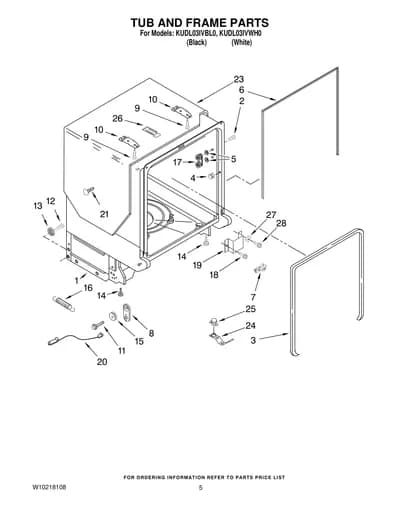

Parts Sections (12)

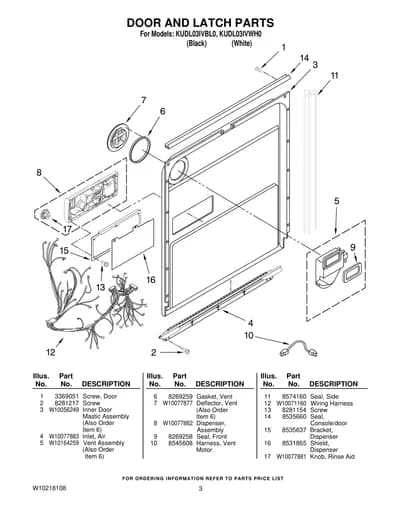

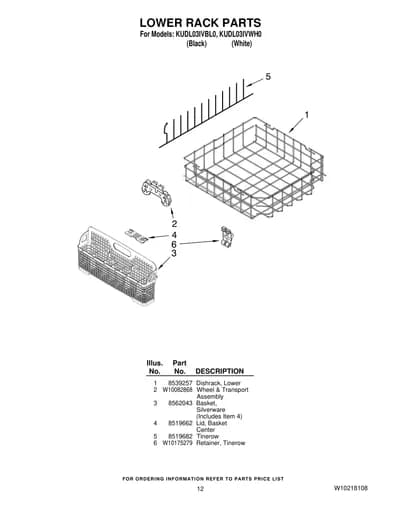

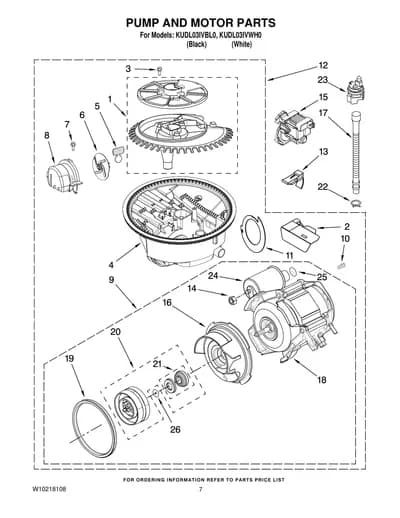

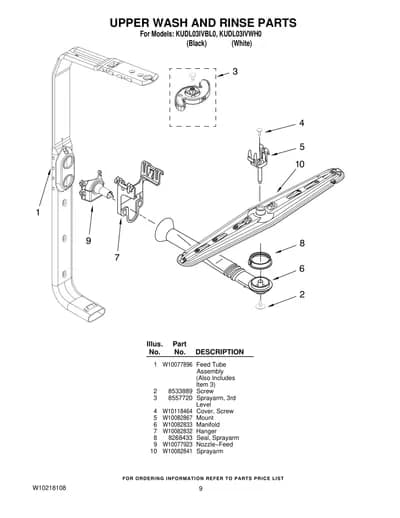

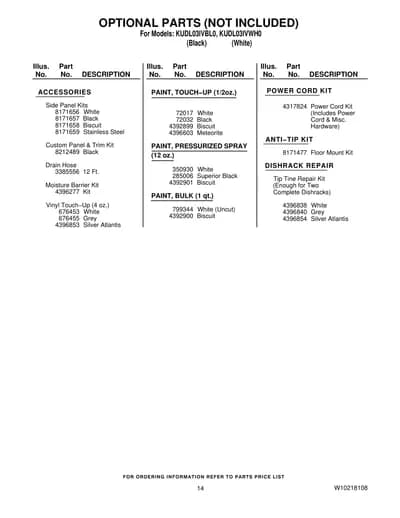

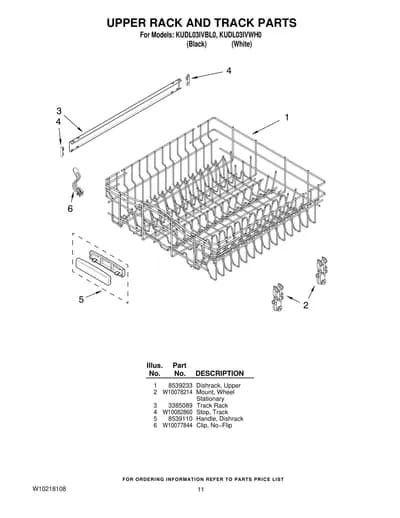

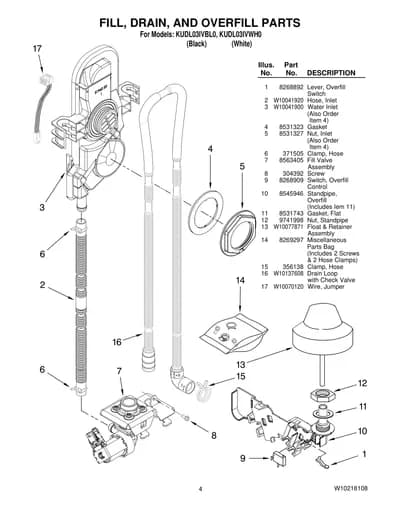

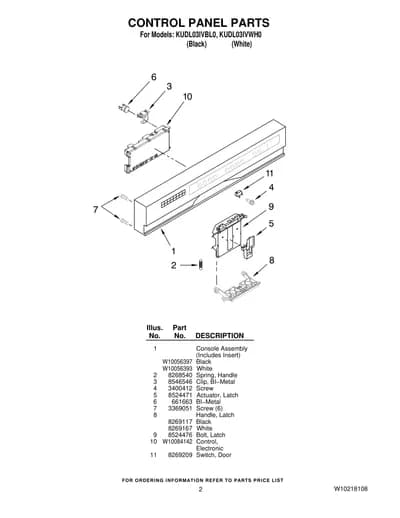

Diagram

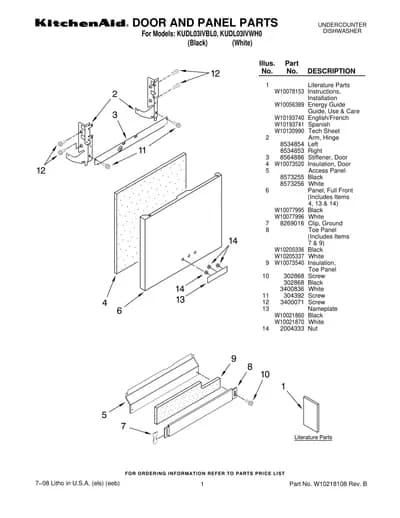

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10078153 Instructions, Installation | - |
| 1 | – | W10056389 Energy Guide Guide, Use & Care | - |
| 1 | – | W10193740 English/French | - |
| 1 | – | W10193741 Spanish | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 | | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 | | W10077995NLA Panel, Full Front (Includes Items 4, 13 & 14) — Black | Discontinued |
| 6 | | Panel, Full Front (Includes Items 4, 13 & 14) — White | - |
| 7 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
| 8 |  | W10871196replaces W10205336 Toe Panel (Includes Items 7 & 9) — Black | $66.43 Amazon |
| 8 |  | W10799406replaces W10205337 Toe Panel (Includes Items 7 & 9) — White | - |
| 9 |  | W10831329replaces W10073540 Insulation, Toe Panel | $15.72 Part Advantage |
| 10 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 10 | | WP302868replaces 302868 Black | $2.30 Part Advantage |
| 10 |  | WPW10503549replaces 3400836 White | $2.22 Part Advantage |
| 11 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 12 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 13 |  | Nameplate — Black | - |
| 13 | | Nameplate — White | - |
| 14 | | WP2004333replaces 2004333 Nut | - |
