Model
KitchenAid KUDM03FTBL2
Undercounter Dishwasher
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDM03FTBL2Undercounter Dishwasher
13 diagrams212 parts
Parts Sections (13)

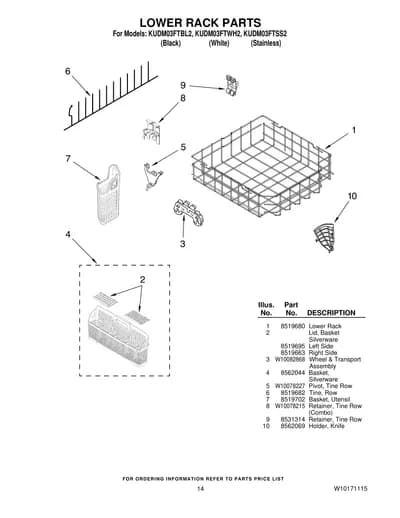

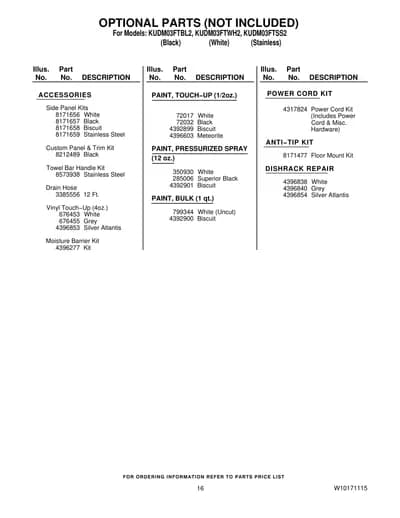

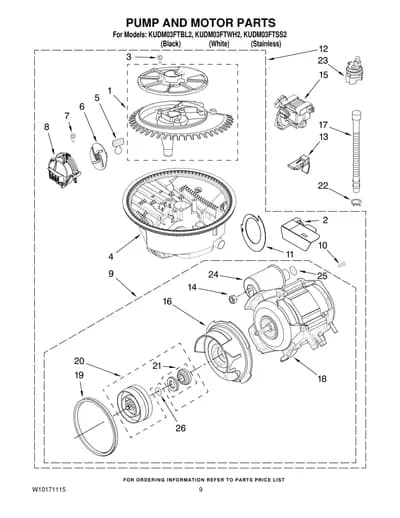

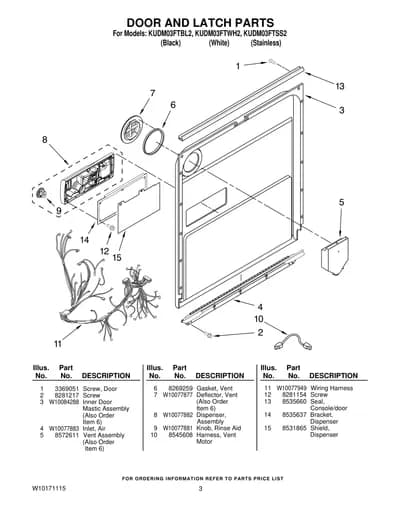

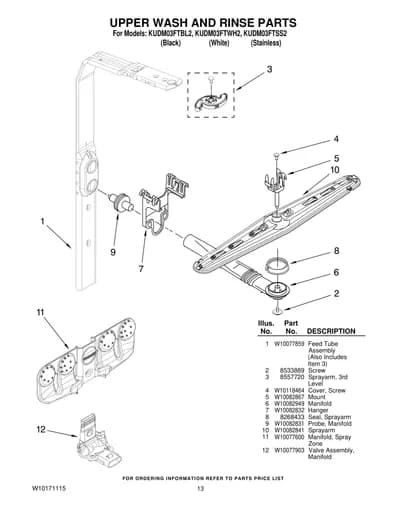

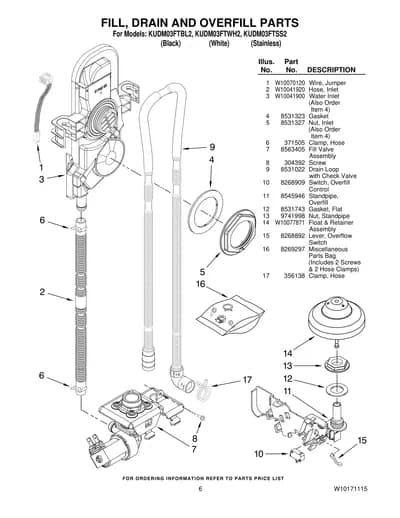

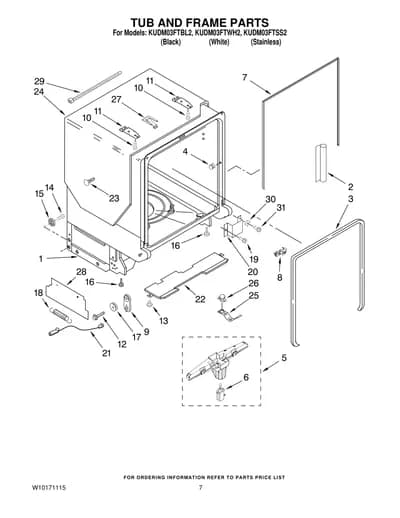

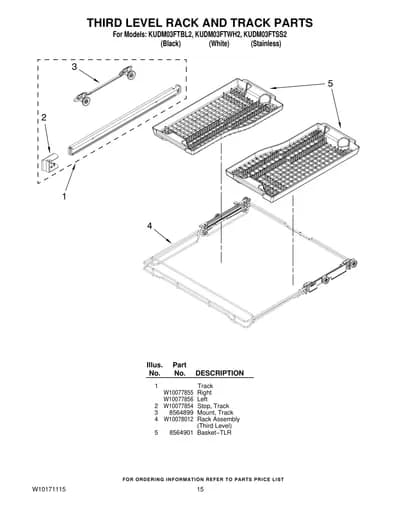

Diagram

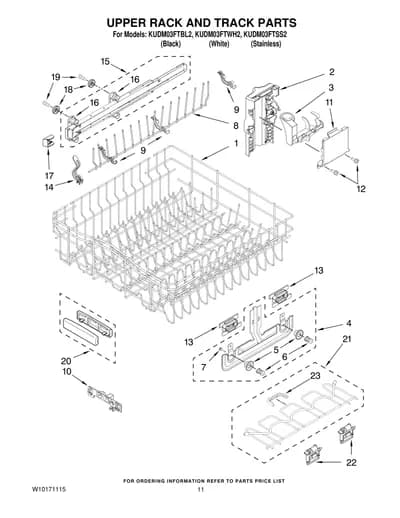

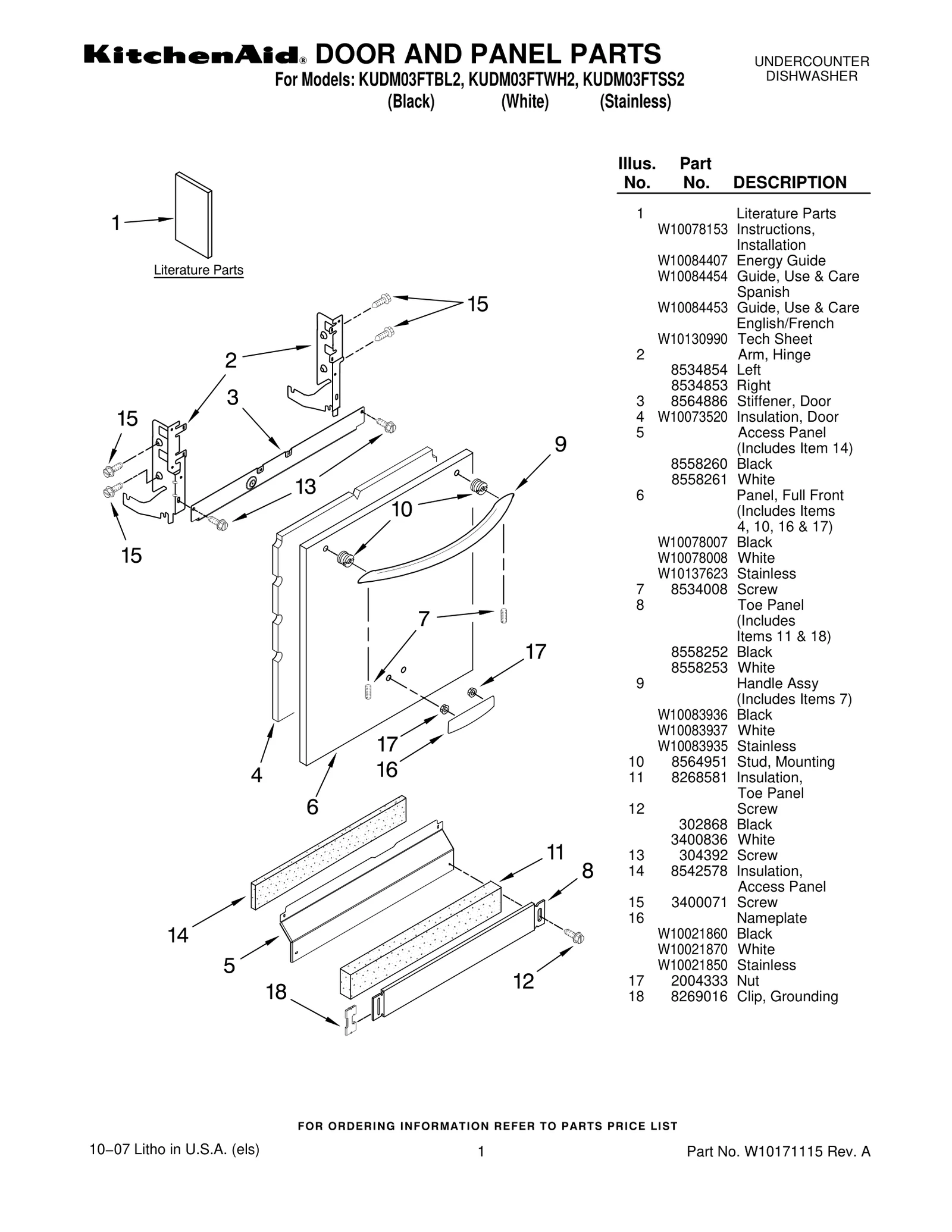

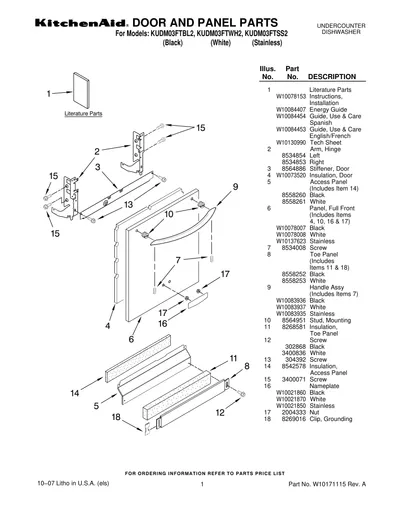

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10078153 Instructions, Installation | - |
| 1 | – | W10084407 Energy Guide | - |
| 1 | – | W10084454 Guide, Use & Care Spanish | - |
| 1 | – | W10084453 Guide, Use & Care English/French | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 | | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 5 |  | W11763736replaces 8558260 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 | | W10078007NLA Panel, Full Front (Includes Items 4, 10, 16 & 17) — Black | Discontinued |
| 6 | | W10078008NLA Panel, Full Front (Includes Items 4, 10, 16 & 17) — White | Discontinued |
| 6 | | W10137623NLA Panel, Full Front (Includes Items 4, 10, 16 & 17) — Stainless | Discontinued |
| 7 |  | WP8534008replaces 8534008 Screw | $2.20 Part Advantage |
| 8 |  | W10871196replaces 8558252 Toe Panel (Includes Items 11 & 18) — Black | $66.43 Amazon |
| 8 |  | WPW10586591replaces 8558253 Toe Panel (Includes Items 11 & 18) — White | $154.38 RepairClinic |
| 9 | | W10083936NLA Handle Assy — Black | Discontinued |
| 9 | | W10083937NLA Handle Assy — White | Discontinued |
| 9 |  | W10195738Areplaces W10083935 Handle Assy — Stainless | $27.33 Parts Dr |
| 10 |  | WP8564951replaces 8564951 Stud, Mounting | $8.70 Parts Dr |
| 11 |  | W10831329replaces 8268581 Insulation, Toe Panel | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 12 |  | WP3400836replaces 3400836 Screw — White | $2.30 Part Advantage |
| 13 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 14 | | W10831329replaces 8542578 Insulation, Access Panel | $15.72 Part Advantage |
| 15 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 16 |  | Nameplate — Black | - |
| 16 | | Nameplate — White | - |
| 16 |  | Nameplate — Stainless | - |
| 17 | | WP2004333replaces 2004333 Nut | - |
| 18 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
