Model
KitchenAid KUDT03FTPA3
Undercounter Dishwasher
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDT03FTPA3Undercounter Dishwasher
13 diagrams195 parts

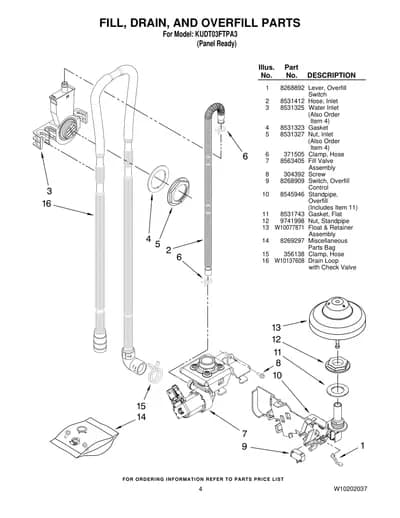

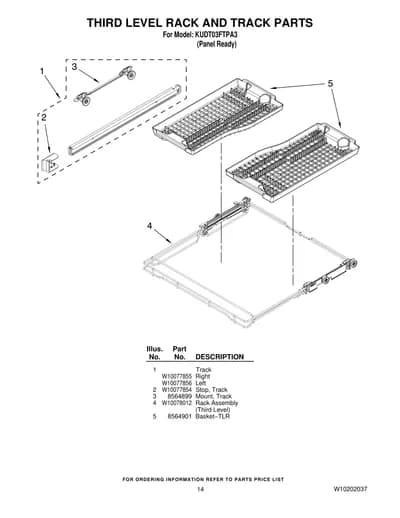

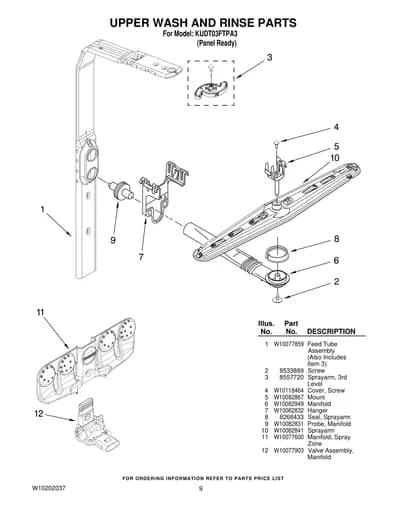

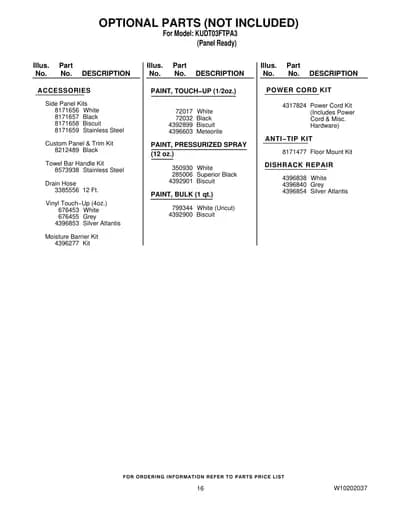

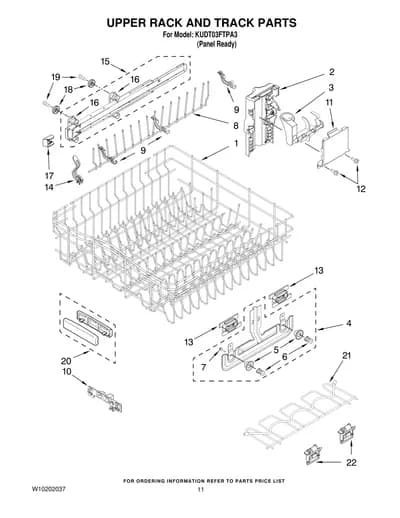

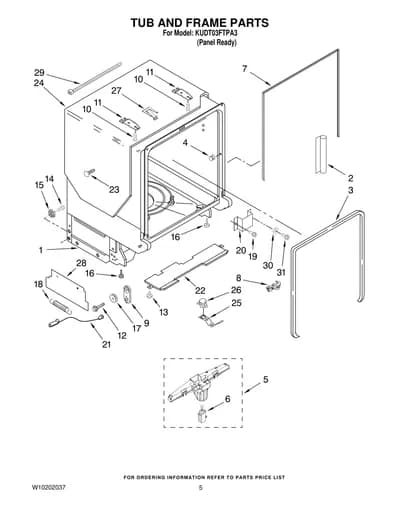

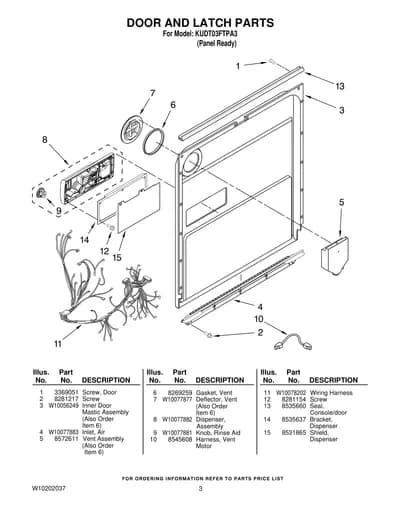

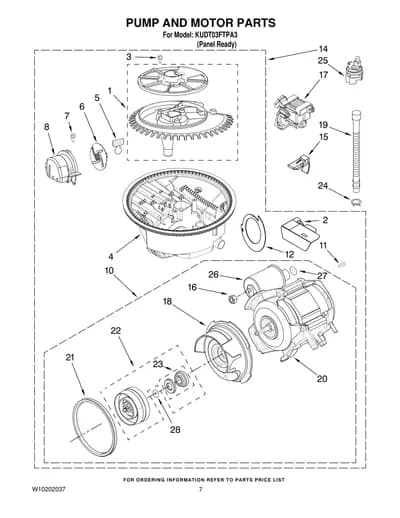

Parts Sections (13)

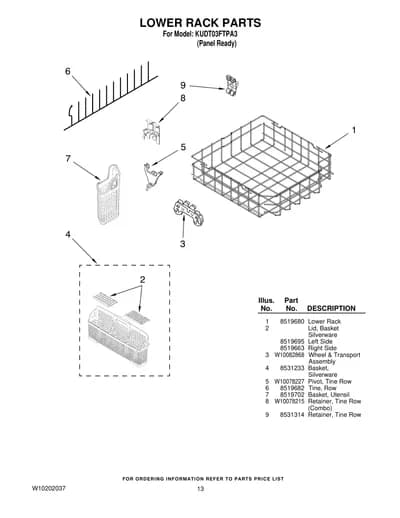

Diagram

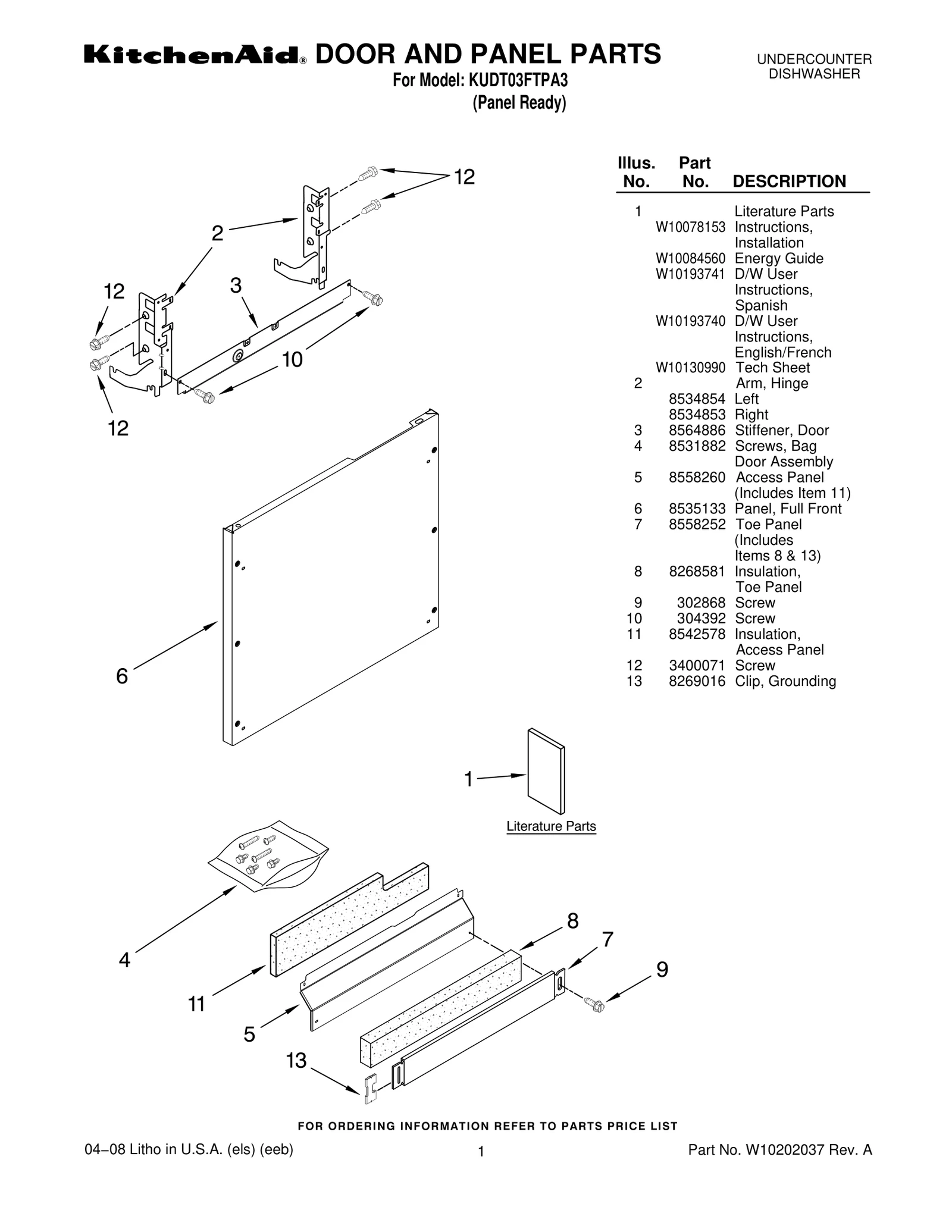

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10078153 Instructions, Installation | - |
| 1 | – | W10084560 Energy Guide | - |
| 1 | – | W10193741 D/W User Instructions, Spanish | - |
| 1 | – | W10193740 D/W User Instructions, English/French | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 | | 8564886NLA Stiffener, Door | Discontinued |
| 4 | | 8531882NLA Screws, Bag Door Assembly | Discontinued |
| 5 |  | W11763736replaces 8558260 Access Panel | $16.47 Part Advantage |
| 6 |  | W11113792replaces 8535133 Panel, Full Front | $131.42 PartSelect |
| 7 |  | W10871196replaces 8558252 Toe Panel (Includes Items 8 & 13) | $66.43 Amazon |
| 8 |  | W10831329replaces 8268581 Insulation, Toe Panel | $15.72 Part Advantage |
| 9 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 10 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 11 | | W10831329replaces 8542578 Insulation, Access Panel | $15.72 Part Advantage |
| 12 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 13 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
