Model
KitchenAid KUDU02VSPA4
Undercounter Dishwasher
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUDU02VSPA4Undercounter Dishwasher
13 diagrams200 parts

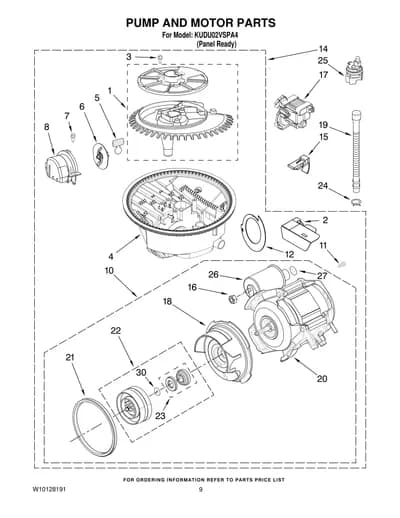

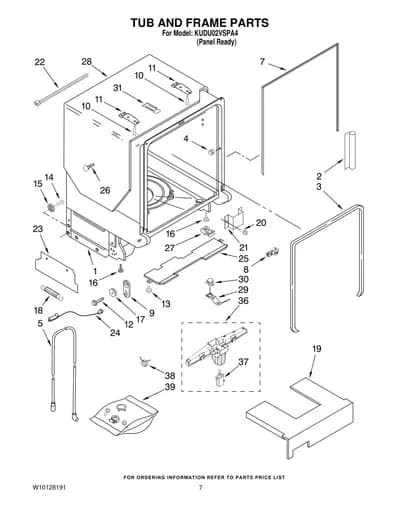

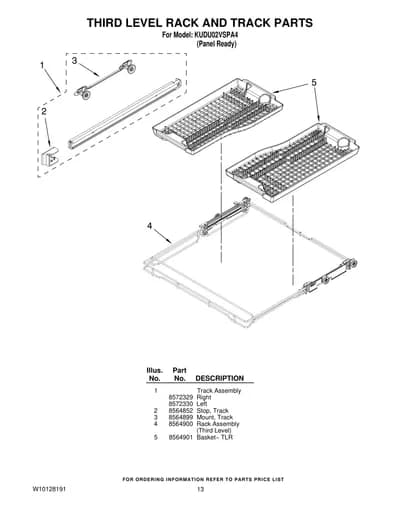

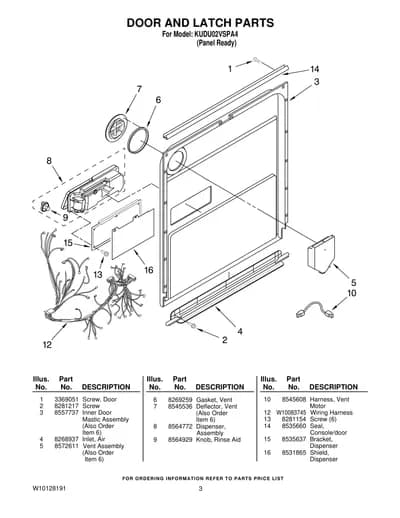

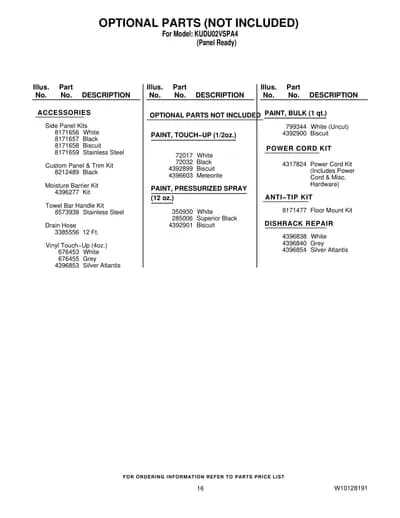

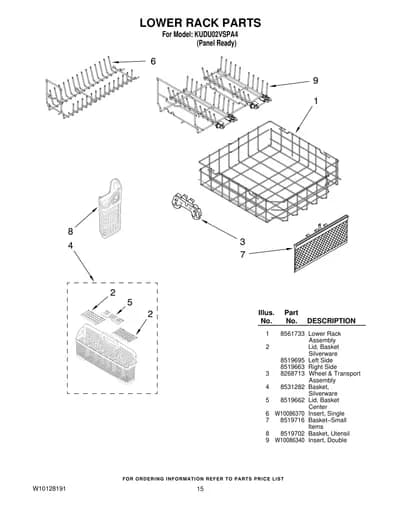

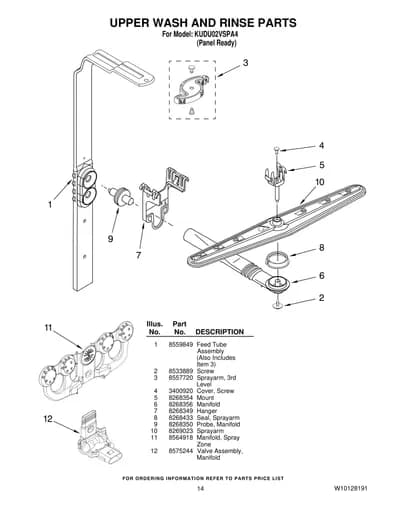

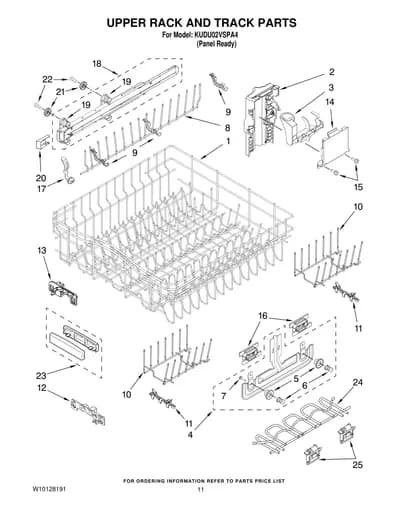

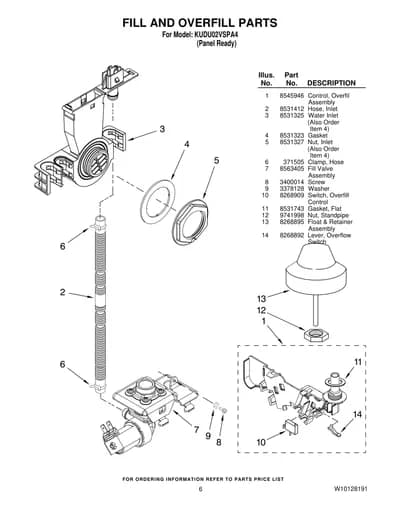

Parts Sections (13)
Diagram

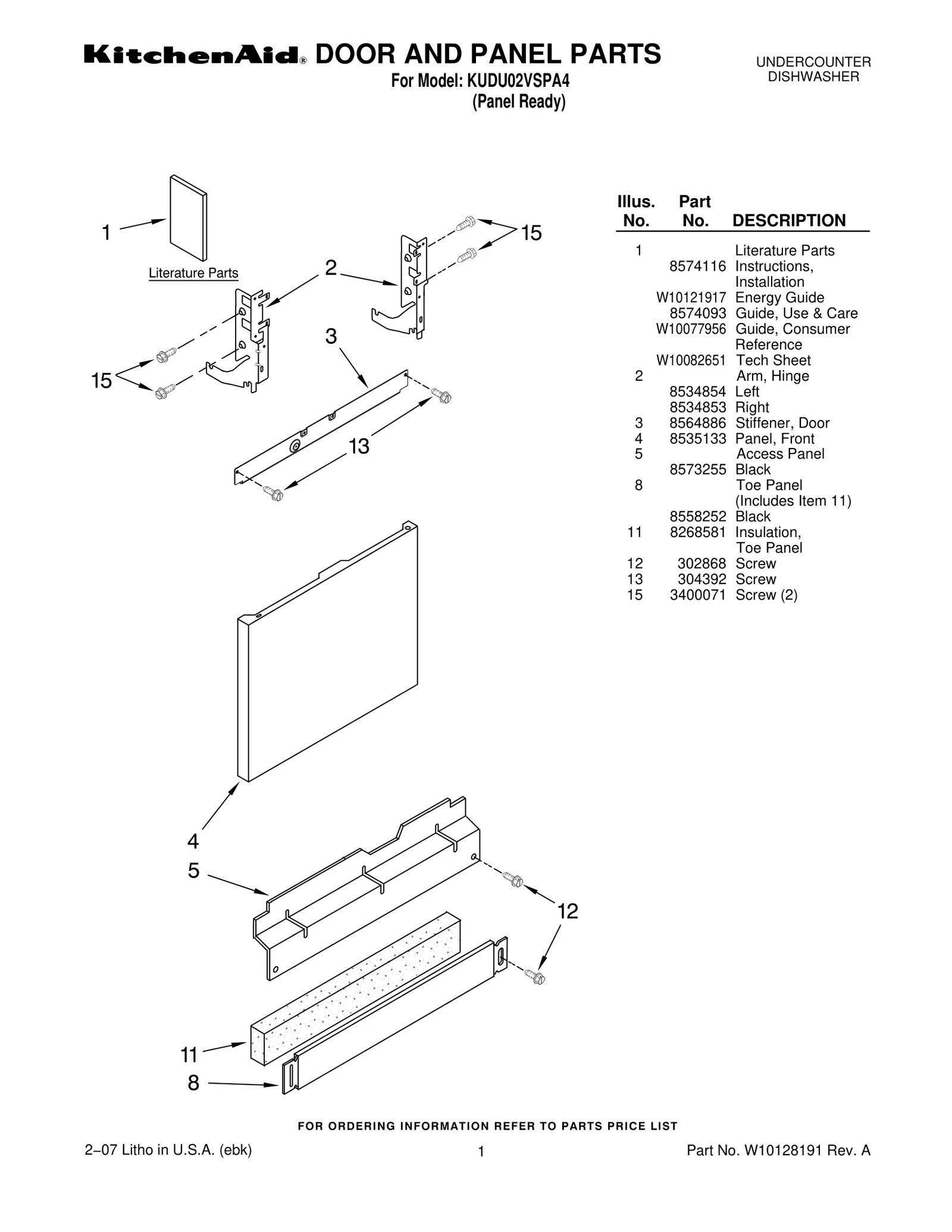

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8574116 Instructions, Installation | - |
| 1 | – | W10121917 Energy Guide | - |
| 1 | – | 8574093 Guide, Use & Care | - |
| 1 | – | W10077956 Guide, Consumer Reference | - |
| 1 | – | W10082651 Tech Sheet | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 |  | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | W11113792replaces 8535133 Panel, Front | $131.42 PartSelect |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 8 |  | W10871196replaces 8558252 Toe Panel — Black | $66.43 Amazon |
| 11 |  | W10831329replaces 8268581 Insulation, Toe Panel | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 13 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 15 |  | WP3400071replaces 3400071 Screw (2) | $2.30 Part Advantage |
