Model
KitchenAid KUIC15PLTS1
Ice Cube Maker
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KUIC15PLTS1Ice Cube Maker
6 diagrams143 parts
Parts Sections (6)

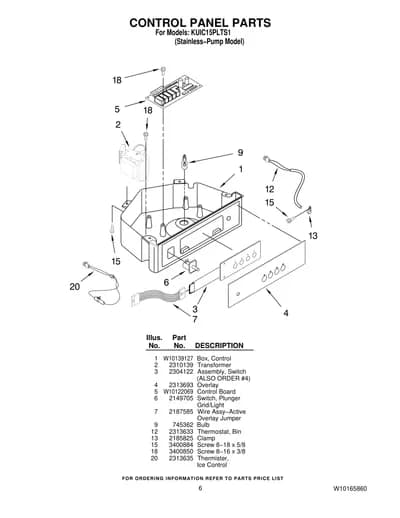

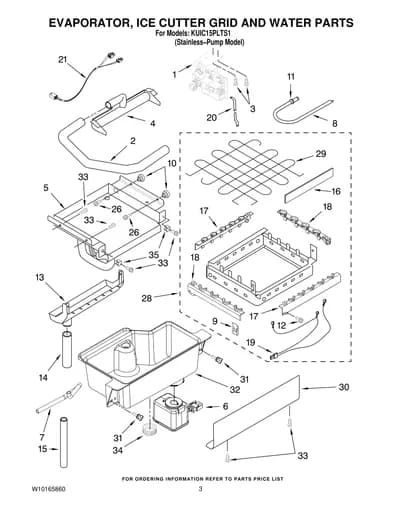

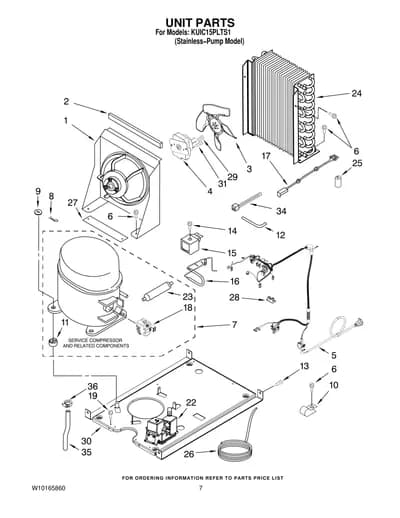

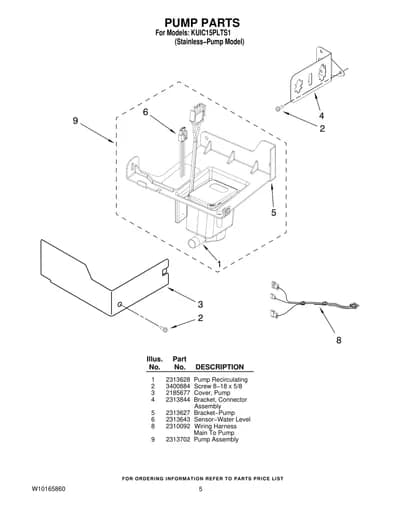

Diagram

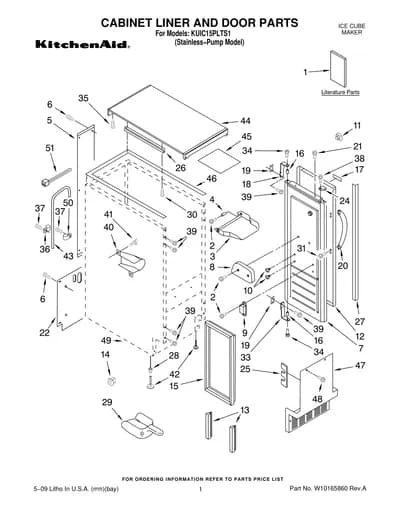

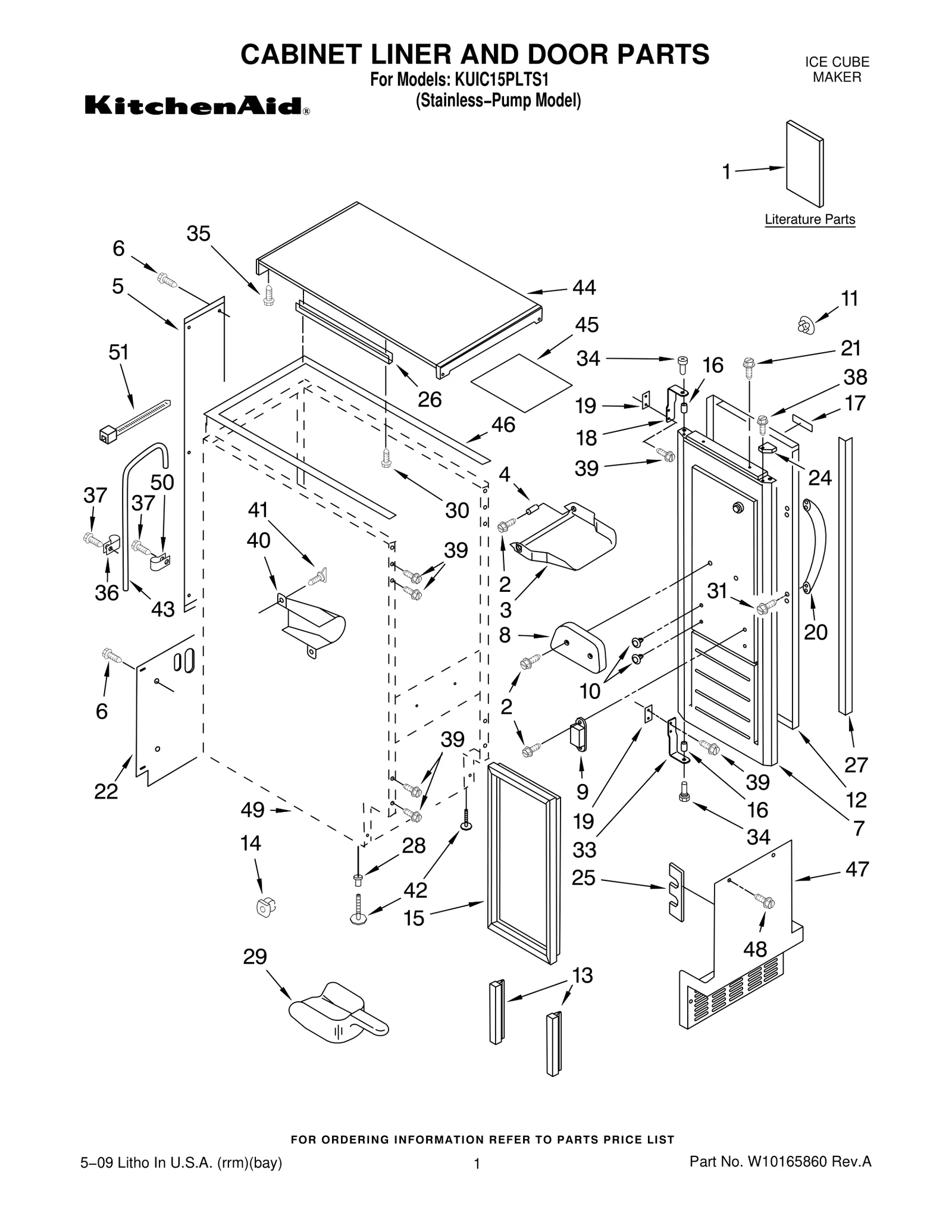

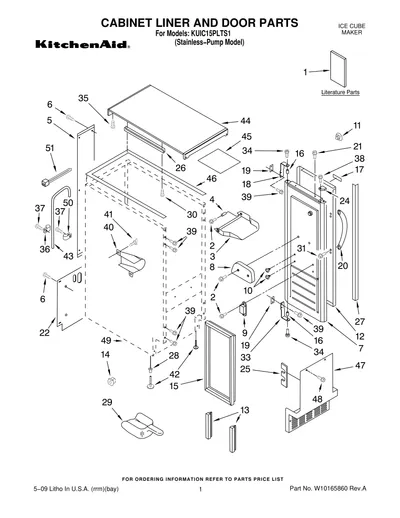

CABINET LINER AND DOOR PARTS
Parts in CABINET LINER AND DOOR PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2313814 Use & Care Guide | - |
| 1 | – | 2324311 Service & Wiring Sheet | - |
| 2 |  | WP3400886replaces 3400886 Screw 8−18 x 1 1/4 | $4.83 Parts Dr |
| 3 |  | 2185742NLA Bin, Door | Discontinued |
| 4 |  | Spacer | - |
| 5 |  | Cover, Wiring | - |
| 6 |  | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 7 | – | 2932803B Door | - |
| 8 |  | Cam, Door | $21.41 RepairClinic |
| 9 |  | W11223751replaces 2217393 Assembly, Magnetic Catch | $37.42 Parts Dr |
| 10 |  | WP941839replaces 941839 Plug, Hole | $3.38 Part Advantage |
| 11 |  | WP2189000replaces 2189000 Hole Plug, Handle | $4.94 Parts Dr |
| 12 | | 2313816NLA Wrap, Door | Discontinued |
| 13 |  | Gasket, Bottom | $51.62 ApplianceParts Pro |
| 14 |  | WP692400replaces 692400 Nut, Push−In | $3.38 Part Advantage |
| 15 |  | WP2217294replaces 2217294 Gasket, Door | $119.78 Parts Dr |
| 16 | | Sleeve, Hinge | - |
| 17 | | Nameplate | Discontinued |
| 18 |  | Hinge, Top | - |
| 19 | | Shim, Hinge | - |
| 20 |  | WP9872207Sreplaces 9872207S Handle, Door | - |
| 21 | | WP8281186replaces 8281186 Screw | - |
| 22 |  | WPW10136199replaces W10136199 Assembly, Unit Cover | $69.91 PartSelect |
| 24 | | Filler, Endcap — Left Side | - |
| 24 | | Filler, Endcap — Right Side | $8.69 RepairClinic |
| 25 |  | W10532250replaces 2185756 Pad, Foam | - |
| 26 | | Channel, Wiring | - |
| 27 |  | Grommet, Edge Guard (2) | - |
| 28 |  | Nut, Leg Leveler | - |
| 29 |  | W11420408replaces 585158 Scoop | $6.64 Part Advantage |
| 30 |  | WP3400884replaces 3400884 Screw 8−18 x 5/8 | $5.95 ApplianceParts Pro |
| 31 |  | WP3400237replaces 3400237 Screw 10−32 x 3/8 | - |
| 33 |  | Hinge, Bottom | - |
| 34 |  | Pin, Hinge | - |
| 35 | | WP250830replaces 489048 Screw, Ground 8−32 x 1/2 | $4.95 ApplianceParts Pro |
| 36 | | WP2208367replaces 2208367 Clamp | - |
| 37 |  | WP489464replaces 8281265 Screw | $9.62 PartSelect |
| 38 | | Screw 8−18 x 3/4 | $17.99 RepairClinic |
| 39 |  | WP999367replaces 489423 Screw | $3.60 Parts Dr |
| 40 |  | Holder, Scoop | - |
| 41 | – | 8281228 Thumbscrew | - |
| 42 |  | 8193716replaces 3374849 Leg, Leveler(4) | $32.19 Parts Dr |
| 43 | – | 2217467 Tube, Air Vent | - |
| 44 | | 2929700BNLA Top | Discontinued |
| 45 |  | Shield, Electrical | - |
| 46 |  | W11624957replaces 2217293 Gasket, Top Panel | - |
| 47 |  | WP2185571Breplaces 2185571B Grill, Front | $75.63 Parts Dr |
| 48 |  | WP489474replaces 489474 Screw 8−18 x 1 | $5.11 RepairClinic |
| 49 | – | N/S Cabinet & Liner | - |
| 50 |  | W10861184replaces 489505 Clamp | $27.23 Part Advantage |
| 51 |  | WPW10339879replaces 2155774 Strap | $2.30 Part Advantage |
