Model
KitchenAid KURO24LSBX01
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KURO24LSBX01Refrigerator
4 diagrams95 parts

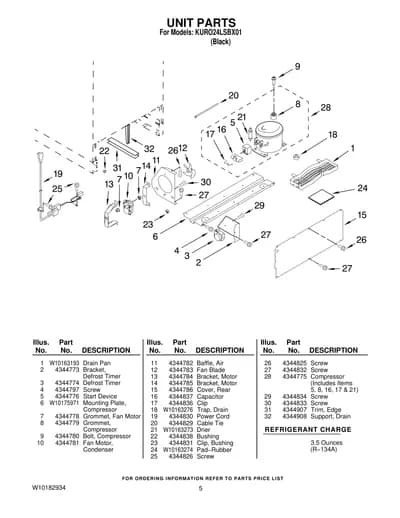

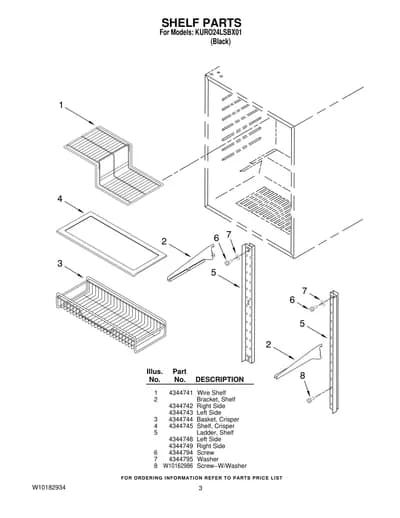

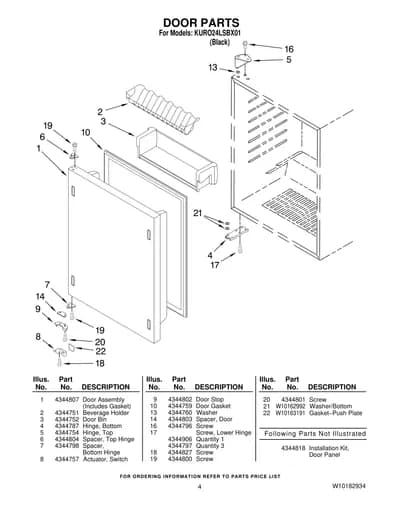

Parts Sections (4)
Diagram

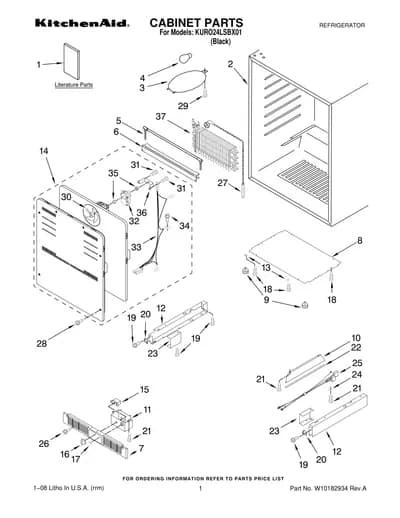

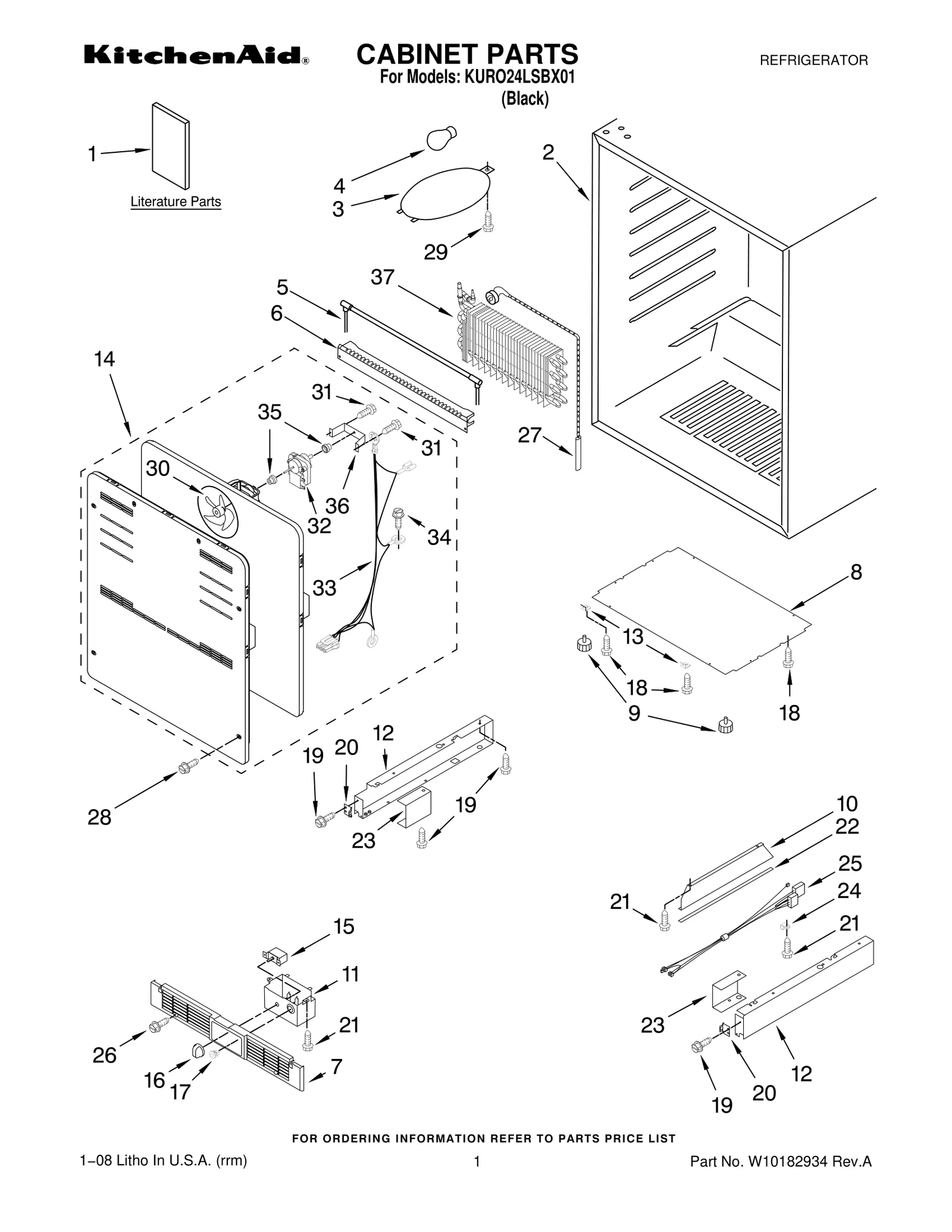

CABINET PARTS
Parts in CABINET PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 4344903 Energy Guide | - |
| 1 | – | 2300275 Use & Care Guide | - |
| 1 | – | 4344902 Wiring Diagram | - |
| 2 | – | N/S Cabinet (Not A Service Part) | - |
| 3 |  | Lens, Light | - |
| 4 |  | WP22002263replaces 4344740 Bulb, Light | $7.60 Part Advantage |
| 5 |  | W11230119replaces 4344746 Heater, Defrost | $75.13 PartSelect |
| 6 |  | Heat Shield | - |
| 7 | | 4344761NLA Grille | Discontinued |
| 8 | | Plate, Bottom | - |
| 9 |  | W11106296replaces 4344763 Foot, Leveling | - |
| 10 | | Brace, Support | - |
| 11 | | Control Box | - |
| 12 | | Frame, Side — Left Side | - |
| 12 | | Frame, Side — Right Side | - |
| 13 | | Bracket, Grille | - |
| 14 | | Evaporator Fan Assembly | - |
| 15 |  | W11176247replaces 4344766 Thermostat | $88.73 Parts Dr |
| 16 |  | WP3402573replaces 4344768 Knob, Thermostat | $38.95 Part Advantage |
| 17 |  | WP4344767replaces 4344767 Switch, Plunger | $25.17 Parts Dr |
| 18 |  | Screw | $10.70 ApplianceParts Pro |
| 19 | | Screw | - |
| 20 | – | 4344819 Clip, Grille | - |
| 21 | | Screw | - |
| 22 |  | Seal | $49.51 ApplianceParts Pro |
| 23 |  | Frame, Support — Right | - |
| 23 |  | Frame, Support — Left | - |
| 24 |  | W11456069replaces 4344824 Clip, Harness | $7.19 RepairClinic |
| 25 | | Harness, Wire | - |
| 26 | – | 4344827 Screw | - |
| 27 |  | Thermal Fuse | $61.55 PartSelect |
| 28 | | Screw | - |
| 29 | | Screw | Discontinued |
| 30 |  | Fan Blade | Discontinued |
| 31 | – | 4344878 Screw | - |
| 32 | | Evaporator Fan Motor | Discontinued |
| 33 |  | Harness, Wire | - |
| 34 |  | W11380570replaces 4344832 Screw, Ground | $10.98 Parts Dr |
| 35 | – | 4344778 Grommet, Fan Motor | - |
| 36 | | Bracket, Motor | - |
| 37 | – | N/S Evaporator | - |
