Model
KitchenAid KWCU405SBL0
30" Canopy Hood
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KWCU405SBL030" Canopy Hood
2 diagrams59 parts
Parts Sections (2)
Diagram

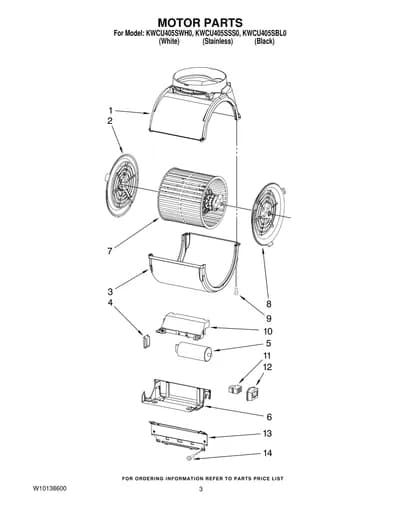

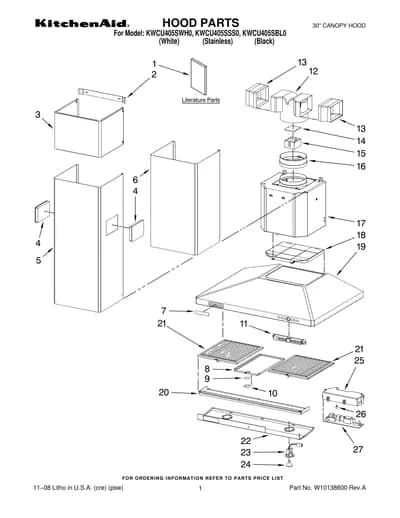

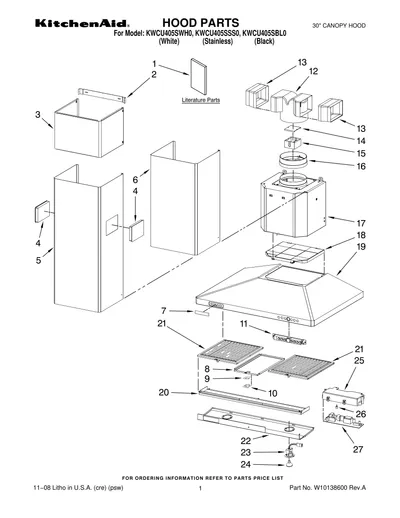

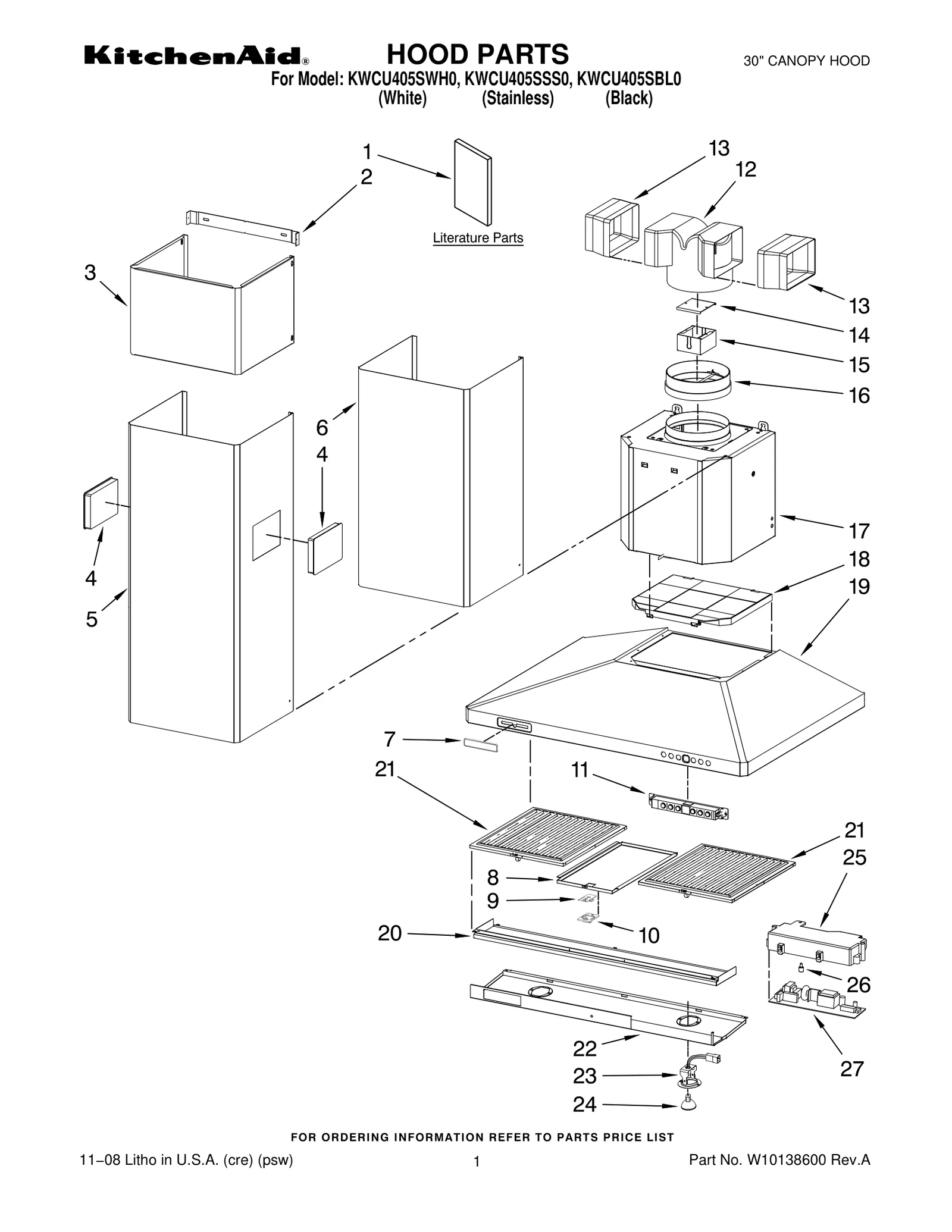

HOOD PARTS
Parts in HOOD PARTS
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10029780 Use & Care Guide | - |
| 2 |  | 8190354NLA Bracket, Upper | Discontinued |
| 3 | – | W10138366 Pipe, Fitting — White | - |
| 3 | – | W10138368 Pipe, Fitting — Black | - |
| 3 | – | W10138369 Pipe, Fitting — S.Steel | - |
| 4 | – | 4360316 Air−Outlet — LH White | - |
| 4 | – | W10138373 Air−Outlet — LH Black | - |
| 4 | | 4360330NLA Air−Outlet — LH S.Steel | Discontinued |
| 4 | – | 4360323 Air−Outlet — RH White | - |
| 4 | – | W10138372 Air−Outlet — RH Black | - |
| 4 | | 4360332NLA Air−Outlet — RH S.Steel | Discontinued |
| 5 | – | W10138374 Pipe Fitting — White | - |
| 5 | – | W10138375 Pipe Fitting — Black | - |
| 5 | | W10138376NLA Pipe Fitting — S.Steel | Discontinued |
| 6 | – | W10138377 Pipe Fitting — White | - |
| 6 | – | W10138378 Pipe Fitting — Black | - |
| 6 | | W10138379NLA Pipe Fitting — S.Steel | Discontinued |
| 7 | | W10021870replaces W10138380 Nameplate — White | - |
| 7 |  | W10021860replaces W10138381 Nameplate — Black | - |
| 7 |  | W10021850replaces W10138382 Nameplate — S.Steel | - |
| 8 | – | W10138383 Spacer, Filter | - |
| 9 | | Bolt | - |
| 10 | | Filter, Latch | - |
| 11 | | W10138386NLA Board, Control | Discontinued |
| 12 | | Duct, Air | - |
| 13 | | 8190356NLA Duct, Air Spacer | Discontinued |
| 14 | – | 8190359 Cover, Terminal | - |
| 15 | – | 8190360 Box, Terminal | - |
| 16 | – | 8190358 Damper, Hood | - |
| 17 | – | N/S Casing, Motor | - |
| 18 | – | N/S Hood, Upper | - |
| 19 | | Hood — White | - |
| 19 | – | W10138362 Hood — Black | - |
| 19 | | Hood — S.Steel | - |
| 20 | – | W10138358 Support, Filter — White | - |
| 20 | – | W10138359 Support, Filter — Black | - |
| 20 | – | W10138360 Support, Filter — S.Steel | - |
| 21 |  | WPW10252087replaces 8189594 Filter | $211.39 Parts Dr |
| 22 | – | W10138355 Support, Light — White | - |
| 22 | – | W10138356 Support, Light — Black | - |
| 22 | – | W10138357 Support, Light — S.Steel | - |
| 23 | | W10138354NLA Socket, Light | Discontinued |
| 24 |  | WPW10252088replaces W10114395 Bulb, Light | $72.35 Parts Dr |
| 25 | | W10138395NLA Box, Control | Discontinued |
| 26 | – | W10138394 Knob, Control | - |
| 27 | | W10138496NLA Control, Motor | Discontinued |
