Model
Maytag MB2216PUAW11
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MB2216PUAW11Refrigerator
8 diagrams190 parts
Parts Sections (8)
Diagram

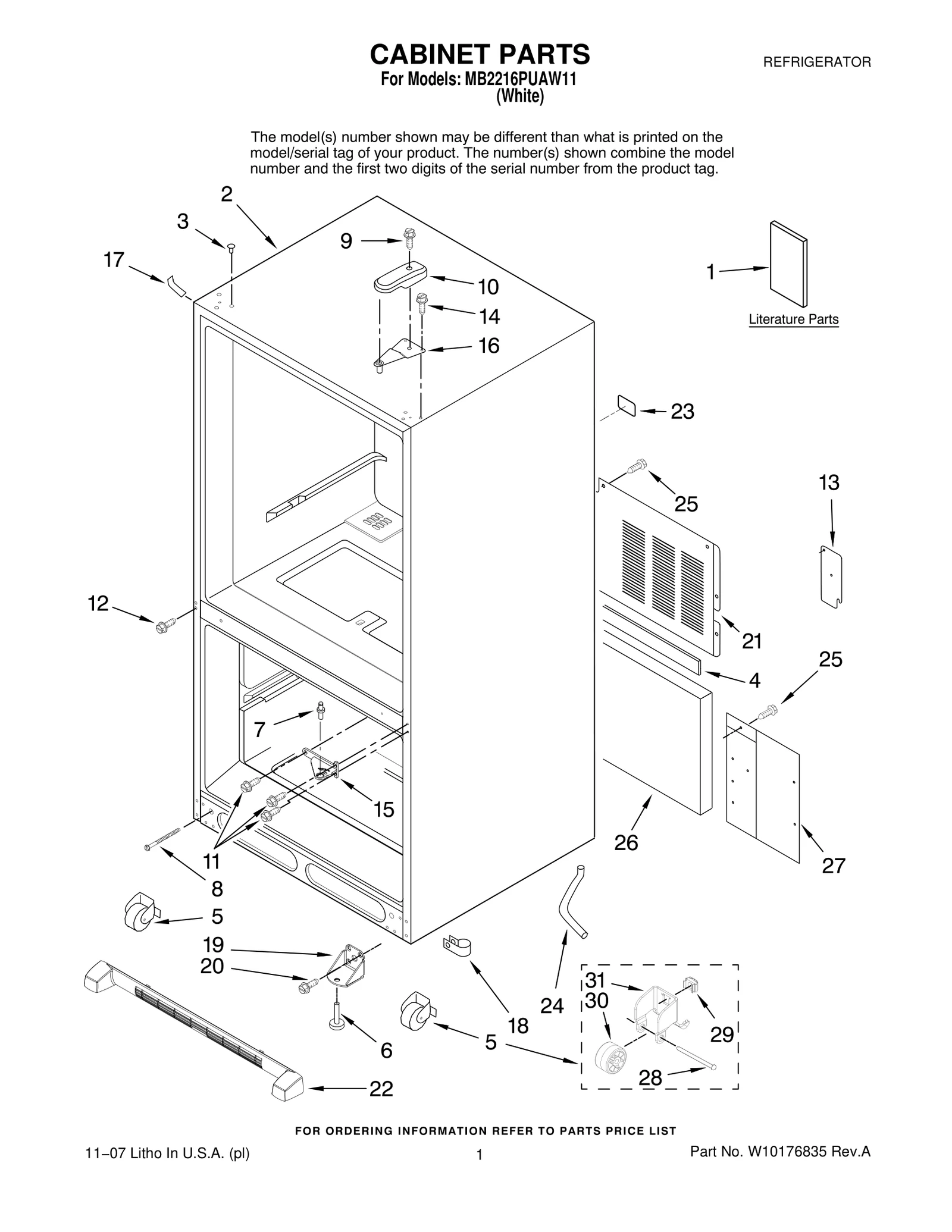

CABINET PARTS
Parts in CABINET PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137641 Use & Care Guide | - |
| 1 | – | W10123817 Energy Guide | - |
| 1 | – | W10165418 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP67001130replaces M0310729 Plug, Button (3) — White | $5.00 RepairClinic |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 67006118 Roller AssY. (2) | - |
| 6 |  | W11177593replaces 67003868 Foot, Brake | $6.48 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Cover, Hinge — White | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | Plate, Cover | - |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 | | W11689473replaces 67006960 Hinge, Center — White | $44.23 PartSelect |
| 16 |  | WP12566606EDreplaces 12566604ED Hinge, Top | $18.97 Parts Dr |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 18 | | Clip, Drain | $6.95 ApplianceParts Pro |
| 19 |  | 12906303WDreplaces 67007174 Bracket, Foot (2) | $27.27 Parts Dr |
| 20 |  | Screw (4) | $3.74 Parts Dr |
| 21 |  | Cover, Unit | - |
| 22 |  | WPW10534161replaces 67007004 Grille, Toe — White | $68.86 PartSelect |
| 23 | | W11685757replaces 67005064 Label, Fill Tube | $3.95 ApplianceParts Pro |
| 24 | | 67001066NLA Tube, Drain | Discontinued |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | | Cover, Water Valve | - |
| 28 | – | M1205302 Rivet | - |
| 29 |  | Nut, Speed | $19.88 RepairClinic |
| 30 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
| 31 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
