Model
Maytag MBR1956HES14
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MBR1956HES14Refrigerator
9 diagrams201 parts
Parts Sections (9)
Diagram

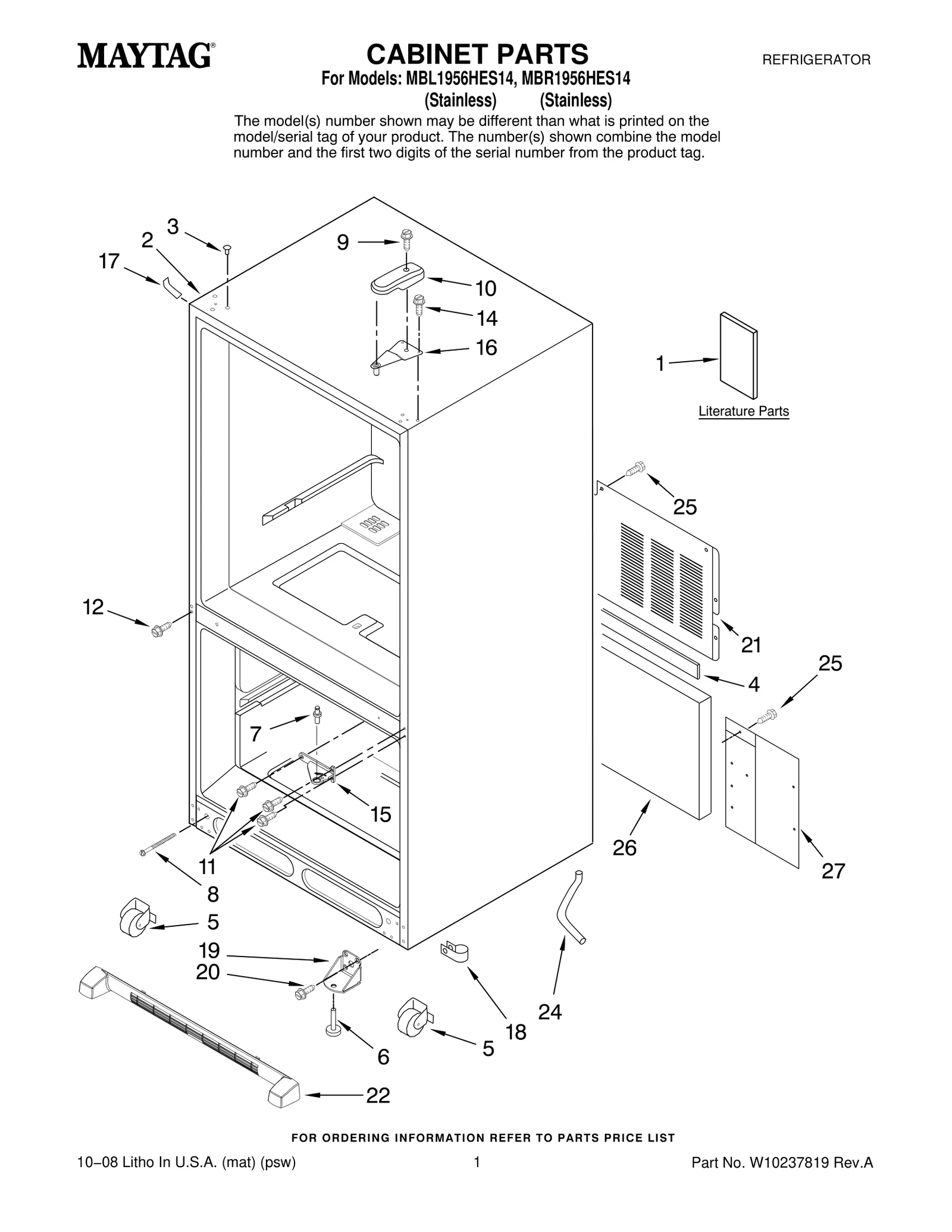

CABINET PARTS
Parts in CABINET PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175446 Use & Care Guide | - |
| 1 | – | W10183277 Energy Guide | - |
| 1 | – | W10165418 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP12246608replaces M0310731 Plug, Button (3) — Black | $3.38 Part Advantage |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 12580304KVF Roller Assy. (2) | - |
| 6 |  | W11177593replaces 67003868 Foot, Brake | $6.48 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Cover, Hinge — Black | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 |  | WP12607104EDreplaces 12607104ED Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | WP12566606EDreplaces 12566606ED Hinge, Top | $18.97 Parts Dr |
| 17 |  | Cover, Corner — Black | - |
| 18 | – | W10157973 Clip, Drain | - |
| 19 |  | 12906303WDreplaces W10208641 Bracket, Foot (2) | $27.27 Parts Dr |
| 20 |  | Screw (4) | $3.74 Parts Dr |
| 21 | – | 67006102 Cover, Unit | - |
| 22 |  | WPW10534167replaces 67006886 Grille, Toe — Black | $57.19 RepairClinic |
| 24 |  | Tube, Drain | - |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | – | 67001173 Cover, Water Valve | - |
