Model
Maytag MDB3601BWB0
Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MDB3601BWB0Undercounter Dishwasher
7 diagrams170 parts

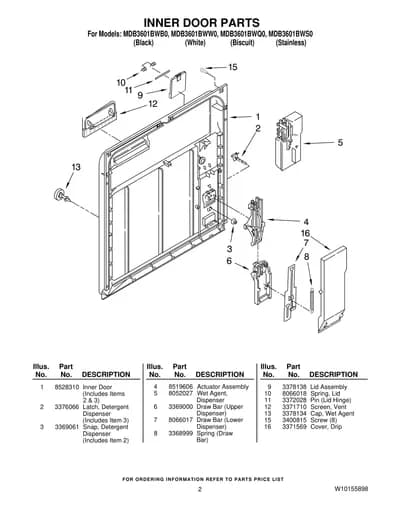

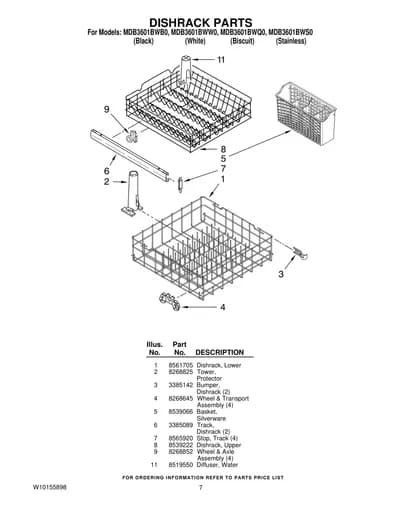

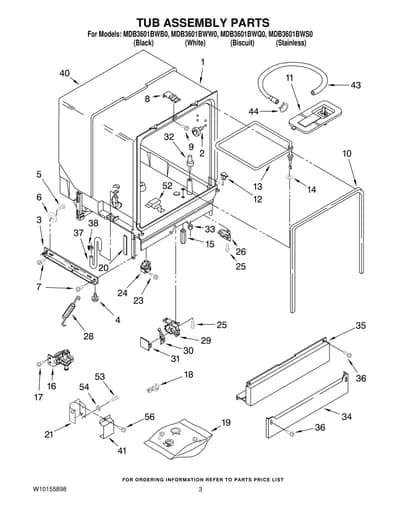

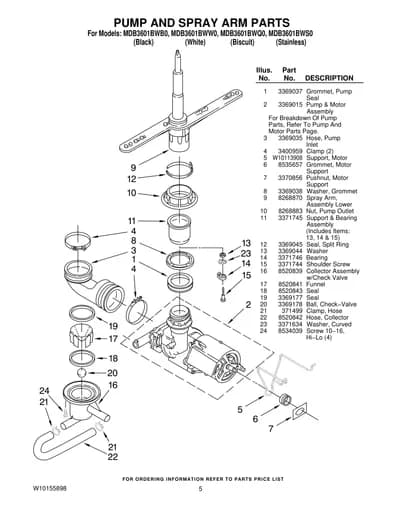

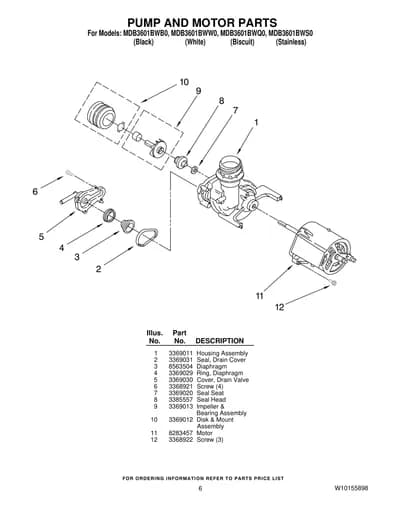

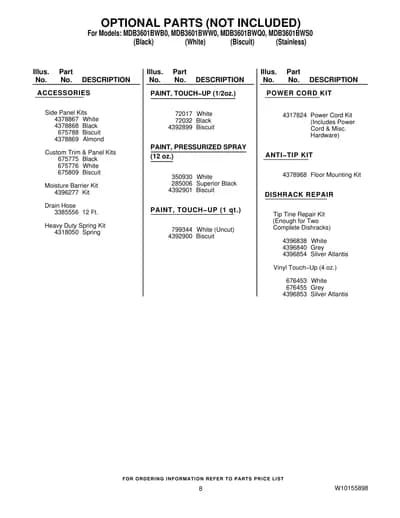

Parts Sections (7)
Diagram

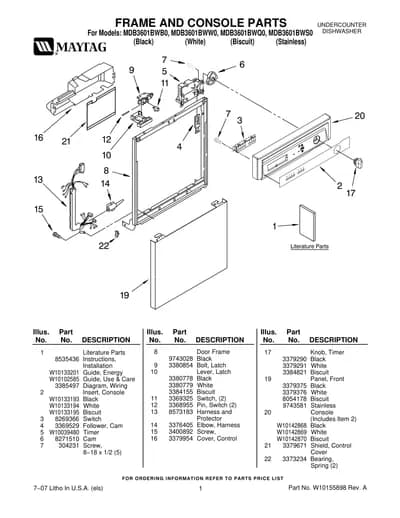

FRAME AND CONSOLE PARTS
Parts in FRAME AND CONSOLE PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8535436 Instructions, Installation | - |
| 1 | – | W10133201 Guide, Energy | - |
| 1 | – | W10102585 Guide, Use & Care | - |
| 1 | – | 3385497 Diagram, Wiring | - |
| 2 |  | Insert, Console — Black | $93.29 ApplianceParts Pro |
| 2 | – | W10133194 Insert, Console — White | - |
| 2 | | Insert, Console — Biscuit | - |
| 3 |  | Switch | - |
| 4 | | WP3369529replaces 3369529 Follower, Cam | $30.59 Parts Dr |
| 5 |  | WPW10199587replaces W10039480 Timer | $167.15 Parts Dr |
| 6 |  | WP8271510replaces 8271510 Cam | $1.68 RepairClinic |
| 7 |  | WP304231replaces 304231 Screw, 8−18 x 1/2 (5) | $5.00 RepairClinic |
| 8 |  | WP9743028replaces 9743028 Door Frame — Black | - |
| 9 |  | WP3380854replaces 3380854 Bolt, Latch | $32.72 Part Advantage |
| 10 | | 3380778NLA Lever, Latch — Black | Discontinued |
| 10 | | 3380779NLA Lever, Latch — White | Discontinued |
| 10 | | 3384155NLA Lever, Latch — Biscuit | Discontinued |
| 11 |  | Switch, (2) | Discontinued |
| 12 | | Pin, Switch (2) | Discontinued |
| 13 | | Harness and Protector | - |
| 14 |  | Elbow, Harness | $12.95 ApplianceParts Pro |
| 15 |  | WP3400892replaces 3400892 Screw, | $3.72 Parts Dr |
| 16 | | Cover, Control | - |
| 17 |  | Knob, Timer — Black | $33.11 Parts Dr |
| 17 | | 3379290replaces 3379291 Knob, Timer — White | $33.11 Parts Dr |
| 17 |  | Knob, Timer — Biscuit | - |
| 19 | | 3379375NLA Panel, Front — Black | Discontinued |
| 19 | | 3379376NLA Panel, Front — White | Discontinued |
| 19 | | 8054178NLA Panel, Front — Biscuit | Discontinued |
| 19 | | 9743581NLA Panel, Front — Stainless | Discontinued |
| 20 | – | W10142868 Console — Black | - |
| 20 | | Console — White | - |
| 20 | – | W10142870 Console — Biscuit | - |
| 21 | | Shield, Control Cover | - |
| 22 |  | WP3373234replaces 3373234 Bearing, Spring (2) | $6.95 ApplianceParts Pro |
