Model
Maytag MDB8601AWB41
Undercounter Dishwasher
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MDB8601AWB41Undercounter Dishwasher
11 diagrams129 parts
Parts Sections (11)

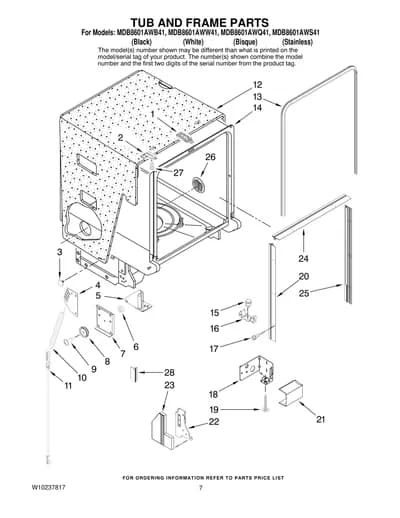

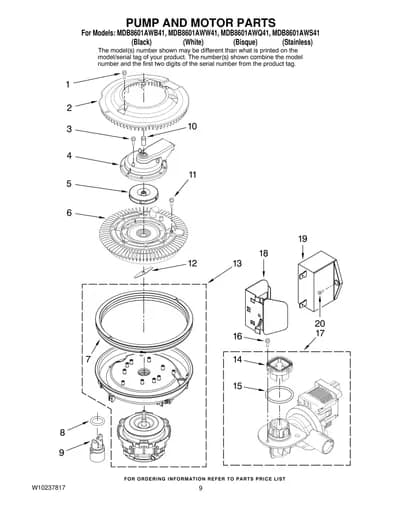

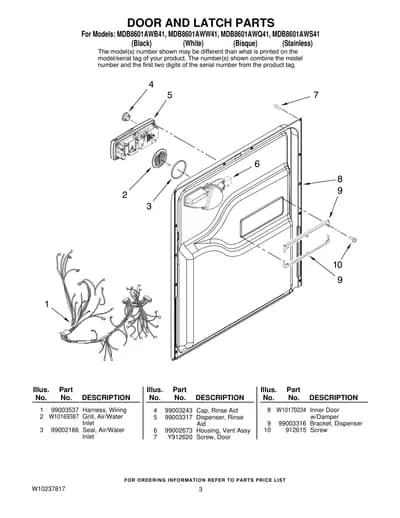

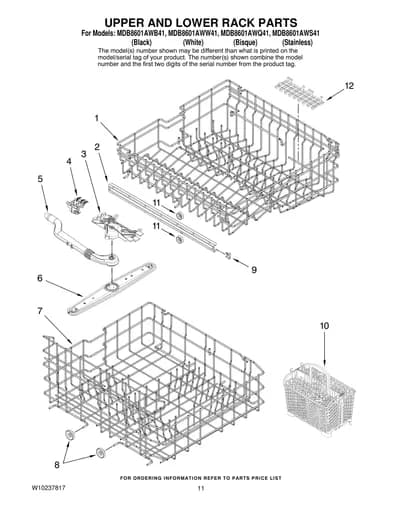

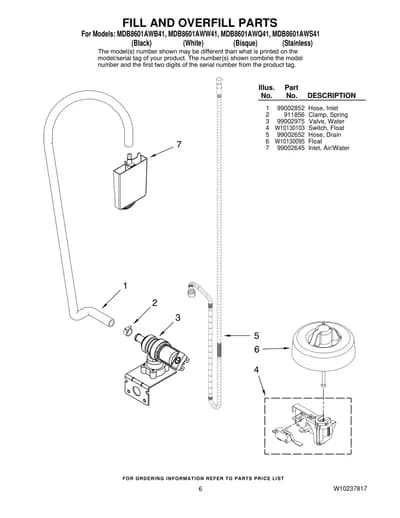

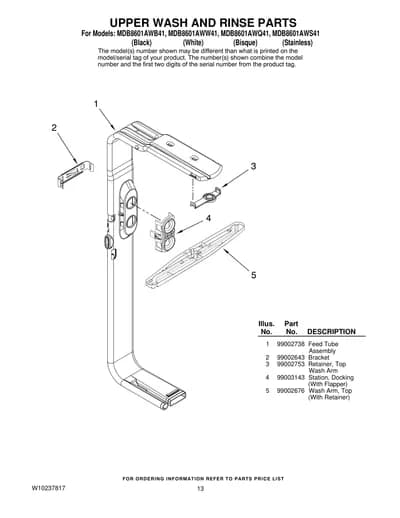

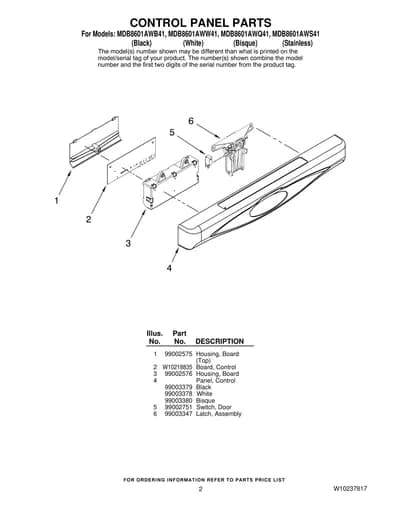

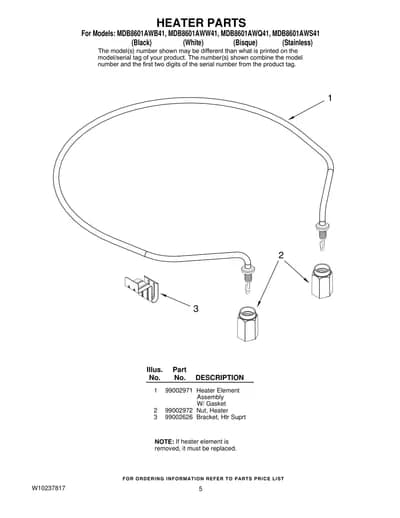

Diagram

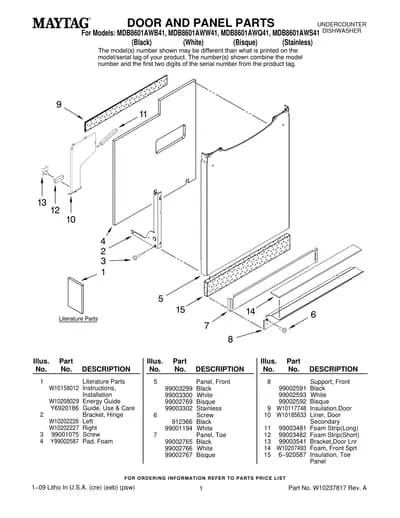

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10208029 Energy Guide | - |
| 1 |  | Y6920186NLA Guide, Use & Care | Discontinued |
| 2 | | W10202226NLA Bracket, Hinge — Left | Discontinued |
| 2 |  | WPW10118637replaces W10202227 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 3 | | 99001075NLA Screw | Discontinued |
| 4 | – | Y99002587 Pad, Foam | - |
| 5 | | 99003299NLA Panel, Front — Black | Discontinued |
| 5 | | 99003300NLA Panel, Front — White | Discontinued |
| 5 | – | 99002769 Panel, Front — Bisque | - |
| 5 | | 99003302NLA Panel, Front — Stainless | Discontinued |
| 6 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 6 | – | 99001194 Screw — White | - |
| 7 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 7 | – | 99002766 Panel, Toe — White | - |
| 7 | – | 99002767 Panel, Toe — Bisque | - |
| 8 | | Support, Front — Black | - |
| 8 | – | 99002593 Support, Front — White | - |
| 8 | – | 99002592 Support, Front — Bisque | - |
| 9 |  | WPW10117748replaces W10117748 Insulation,Door | - |
| 10 | | Liner, Door Secondary | - |
| 11 | | Foam Strip(Long) | - |
| 12 | | 99003482NLA Foam Strip(Short) | Discontinued |
| 13 | | 99003541NLA Bracket,Door Lnr | Discontinued |
| 14 | | Foam, Front Sprt | - |
| 15 | – | N/S 6−920587 Insulation, Toe Panel | - |
