Model
Maytag MDB8951BWQ10
Undercounter Dishwasher
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MDB8951BWQ10Undercounter Dishwasher
11 diagrams158 parts
Parts Sections (11)
Diagram

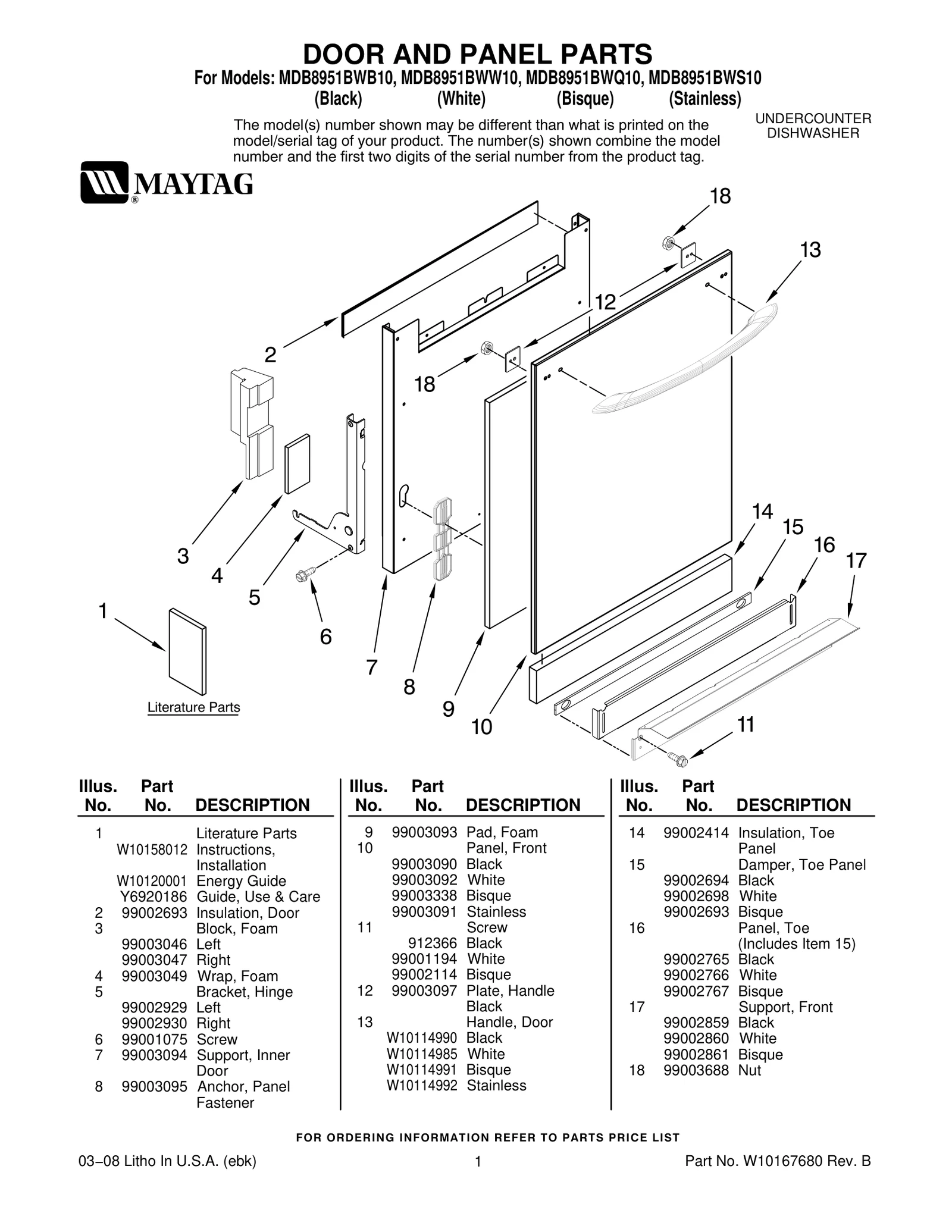

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10120001 Energy Guide | - |
| 1 |  | Y6920186NLA Guide, Use & Care | Discontinued |
| 2 | – | 99002693 Insulation, Door | - |
| 3 | – | 99003046 Block, Foam — Left | - |
| 3 | – | 99003047 Block, Foam — Right | - |
| 4 | – | 99003049 Wrap, Foam | - |
| 5 | | WPW10118638replaces 99002929 Bracket, Hinge — Left | - |
| 5 |  | WPW10118637replaces 99002930 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 6 | | 99001075NLA Screw | Discontinued |
| 7 | – | 99003094 Support, Inner Door | - |
| 8 | – | 99003095 Anchor, Panel Fastener | - |
| 9 | | 99003093NLA Pad, Foam | Discontinued |
| 10 | – | 99003090 Panel, Front — Black | - |
| 10 | – | 99003092 Panel, Front — White | - |
| 10 | – | 99003338 Panel, Front — Bisque | - |
| 10 | – | 99003091 Panel, Front — Stainless | - |
| 11 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 11 | – | 99001194 Screw — White | - |
| 11 | – | 99002114 Screw — Bisque | - |
| 12 |  | W10167659replaces 99003097 Plate, Handle Black | - |
| 13 | | W10114990NLA Handle, Door — Black | Discontinued |
| 13 | | W10114985NLA Handle, Door — White | Discontinued |
| 13 | – | W10114991 Handle, Door — Bisque | - |
| 13 | | Handle, Door — Stainless | - |
| 14 |  | WP6-920587replaces 99002414 Insulation, Toe Panel | $4.73 ApplianceParts Pro |
| 15 | | 99002694NLA Damper, Toe Panel — Black | Discontinued |
| 15 | – | 99002698 Damper, Toe Panel — White | - |
| 15 | – | 99002693 Damper, Toe Panel — Bisque | - |
| 16 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 16 | – | 99002766 Panel, Toe — White | - |
| 16 | – | 99002767 Panel, Toe — Bisque | - |
| 17 | – | 99002859 Support, Front — Black | - |
| 17 | – | 99002860 Support, Front — White | - |
| 17 | – | 99002861 Support, Front — Bisque | - |
| 18 | | 99003688NLA Nut | Discontinued |
