Model
Maytag MDB9750BWB10
Undercounter Dishwasher
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MDB9750BWB10Undercounter Dishwasher
13 diagrams167 parts

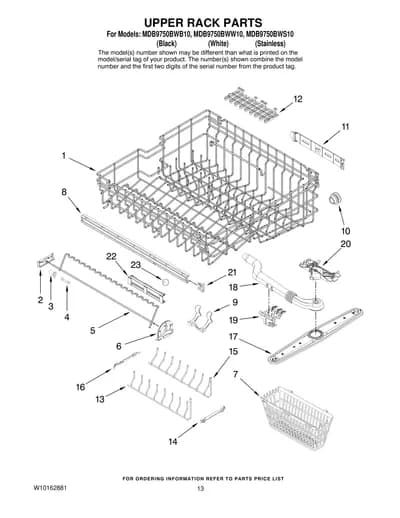

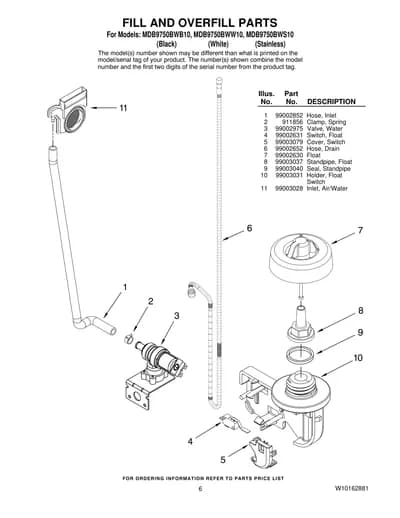

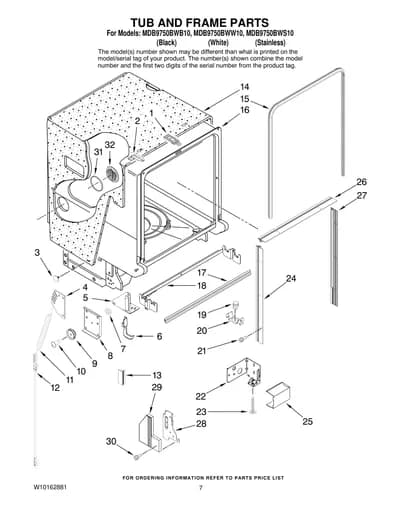

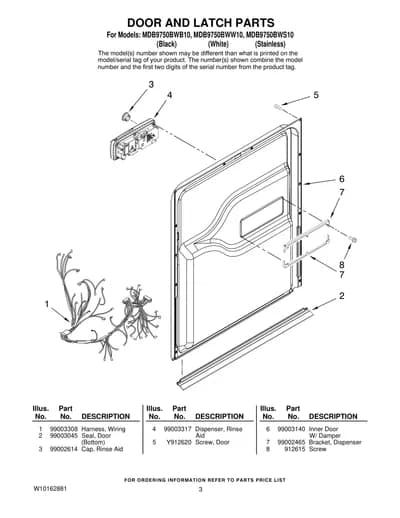

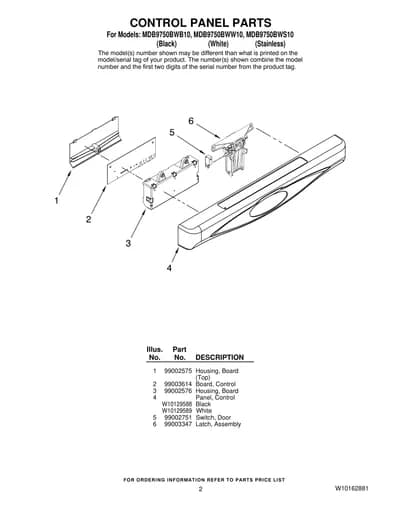

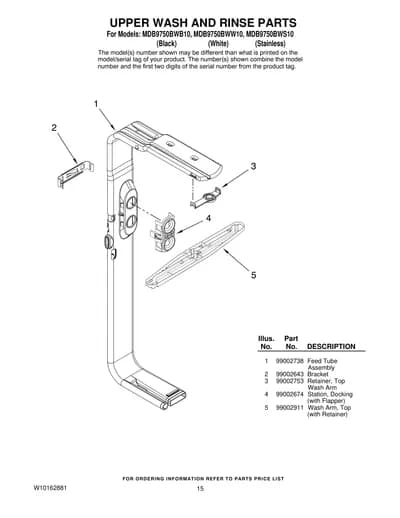

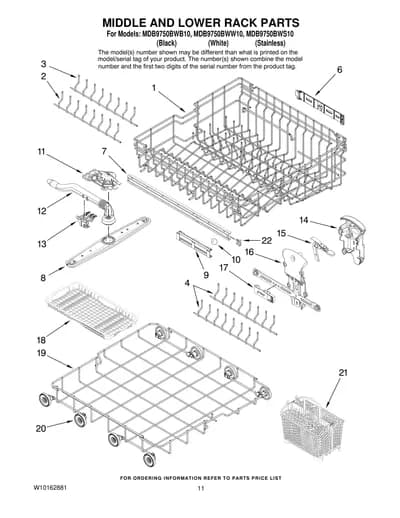

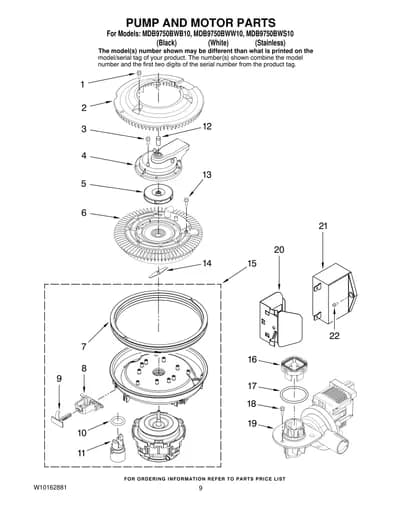

Parts Sections (13)
Diagram

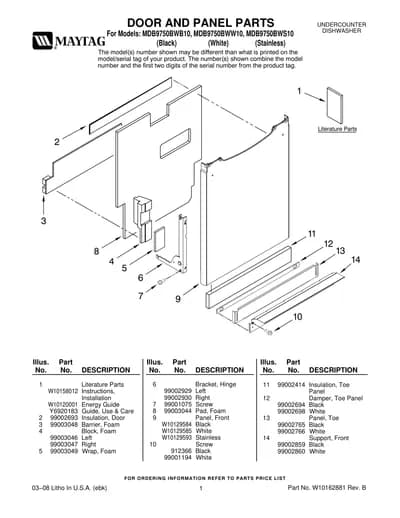

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10120001 Energy Guide | - |
| 1 | – | Y6920183 Guide, Use & Care | - |
| 2 | – | 99002693 Insulation, Door | - |
| 3 | – | 99003048 Barrier, Foam | - |
| 4 | – | 99003046 Block, Foam — Left | - |
| 4 | – | 99003047 Block, Foam — Right | - |
| 5 | – | 99003049 Wrap, Foam | - |
| 6 |  | WPW10118638replaces 99002929 Bracket, Hinge — Left | - |
| 6 |  | WPW10118637replaces 99002930 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 7 | | 99001075NLA Screw | Discontinued |
| 8 | – | 99003044 Pad, Foam | - |
| 9 | | Panel, Front — Black | - |
| 9 | – | W10129585 Panel, Front — White | - |
| 9 | – | W10129593 Panel, Front — Stainless | - |
| 10 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 10 | – | 99001194 Screw — White | - |
| 11 |  | WP6-920587replaces 99002414 Insulation, Toe Panel | $4.73 ApplianceParts Pro |
| 12 | | 99002694NLA Damper, Toe Panel — Black | Discontinued |
| 12 | – | 99002698 Damper, Toe Panel — White | - |
| 13 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 13 | – | 99002766 Panel, Toe — White | - |
| 14 | – | 99002859 Support, Front — Black | - |
| 14 | – | 99002860 Support, Front — White | - |
