Model
Maytag MED5730TQ0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MED5730TQ029" Electric Dryer
4 diagrams123 parts
Parts Sections (4)

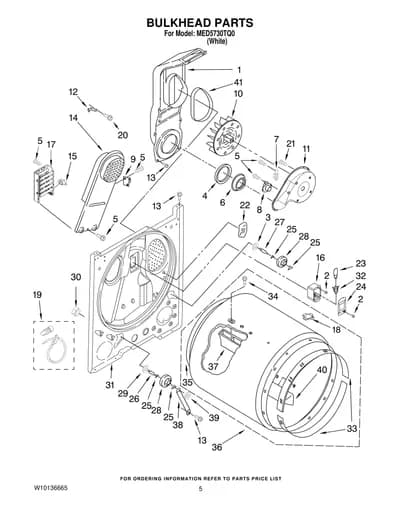

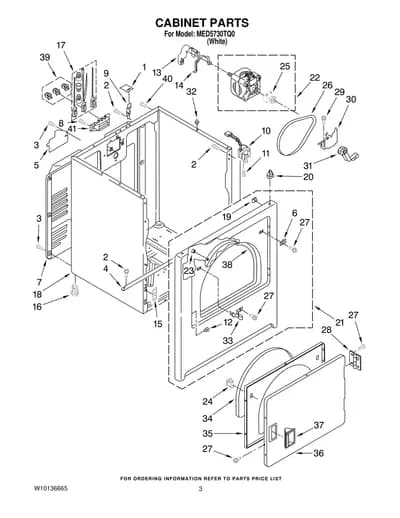

Diagram

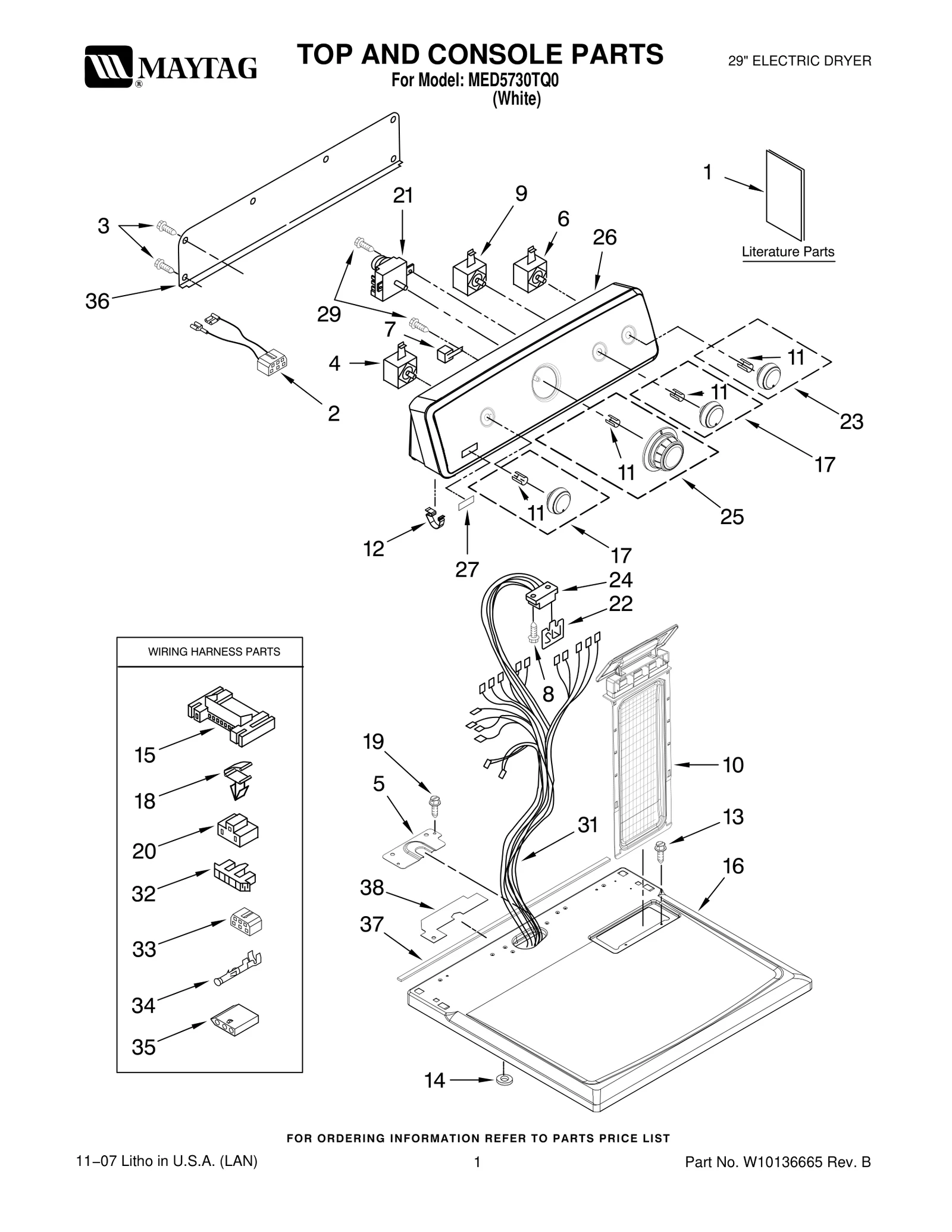

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10150648 Sheet, Cycle Feature | - |
| 1 | – | W10151609 Use & Care Guide | - |
| 1 | – | 8576803 Wiring Diagram | - |
| 2 |  | Wire, Jumper | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 |  | Foam Seal Console Bracket | - |
| 5 |  | WP90767replaces 8533971 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 6 | | Panel, Rear Console | - |
| 7 |  | W11106324replaces 3405155 Switch, Temperature | $88.33 Parts Dr |
| 8 |  | WPW10117655replaces W10117655 Switch, Push−To−Start | $41.00 Part Advantage |
| 9 |  | WP3406725replaces 3406725 Timer Assembly 60 HZ. | $126.08 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 | – | 237446 Washer (Top/chute) | - |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | W10112599NLA Top | Discontinued |
| 17 |  | WPW10110029replaces W10110029 Knob, Control (2) | $31.36 Part Advantage |
| 18 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 19 |  | WP33001882replaces 337686 Screw, 8−18 x 3/4 | $27.07 ApplianceParts Pro |
| 20 |  | Connector, | - |
| 21 |  | WP8566184replaces 8566184 Timer, 60 Hz. | $119.08 Part Advantage |
| 22 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 23 | – | W10110031 Knob, Push−To−Start | - |
| 24 |  | Connector, Edge | - |
| 25 |  | Timer Knob Assembly | Discontinued |
| 26 | – | W10086727 Console & Control Panel Assembly (Includes | - |
| 27 |  | W10203949replaces W10112569 Badge, Assembly | - |
| 29 | | WP90767replaces 8533971 Screw, Mounting | $2.30 Part Advantage |
| 31 | | Harness, Wiring | - |
| 32 |  | Connector | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 35 |  | Connector | - |
| 36 | | Panel, Rear Console | - |
| 37 | | Foam−Seal Console Bracket | - |
| 38 | – | W10118608 Seal, Harness | - |
