Model
Maytag MED6600TQ0
29"Electric Dryer

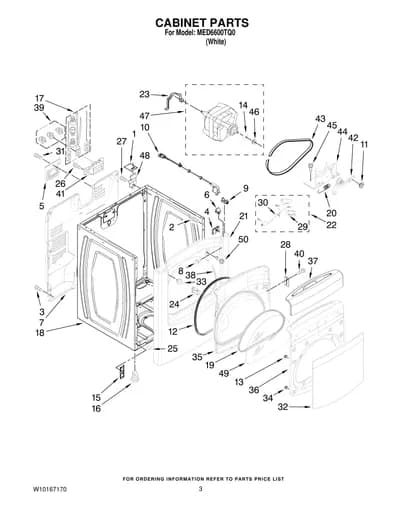

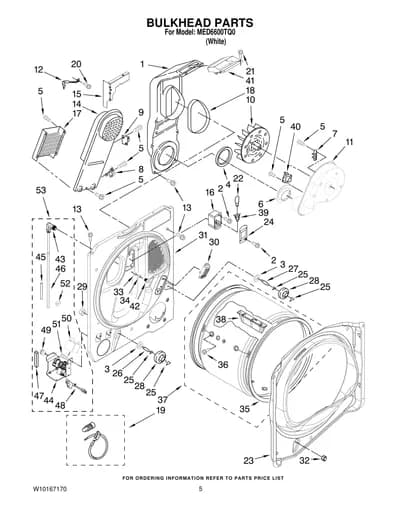

Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MED6600TQ029"Electric Dryer
4 diagrams142 parts
Parts Sections (4)
Diagram

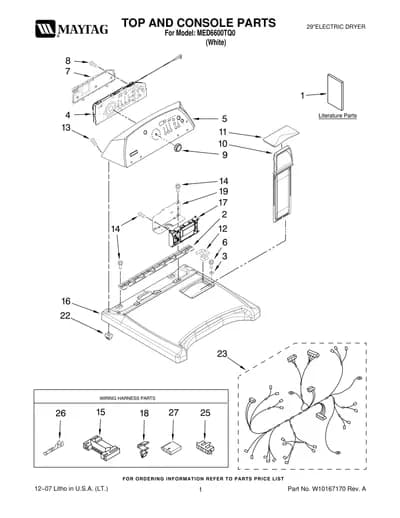

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10156040 Tech Sheet | - |
| 1 | – | W10160249 Guide, Quick Start | - |
| 1 | – | W10160250 Use & Care Guide | - |
| 1 | – | W10160247 Tip Sheet | - |
| 1 | – | W10165147 Sheet, Steam Tip | - |
| 2 |  | Bracket, Console | - |
| 3 | – | 237446 Washer (Top/Chute) | - |
| 4 | | W10051167NLA User Interface | Discontinued |
| 5 | | Panel, Console | - |
| 6 |  | WP3196557replaces 3196537 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 7 |  | Cover, Rear | - |
| 8 |  | WP4449745replaces W10003770 Screw, 6−19 x 3/64 | - |
| 9 | | Knob, Assembly | - |
| 10 |  | WP8572270replaces 8572270 Assembly, Lint Screen | $45.40 Part Advantage |
| 11 | | W10044320NLA Cover, Lint Screen | Discontinued |
| 12 |  | WPW10044470replaces W10044470 Hinge, R.H. | $3.38 Part Advantage |
| 12 |  | WPW10044480replaces W10044480 Hinge, L.H. | $3.38 Part Advantage |
| 13 | – | W10001580 Screw | - |
| 14 |  | WP33001882replaces 337686 Screw | $27.07 ApplianceParts Pro |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | Top | - |
| 17 | | W10111614NLA Control, Electronic | Discontinued |
| 18 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 19 | | Bracket, Machine Controller | - |
| 22 | | Grommet | - |
| 23 |  | Harness Wiring | $94.38 RepairClinic |
| 25 |  | Connector | - |
| 26 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 27 |  | Connector, Timer | - |
