Maytag MEDB700VQ0
27" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MEDB700VQ027" Electric Dryer
4 diagrams141 parts

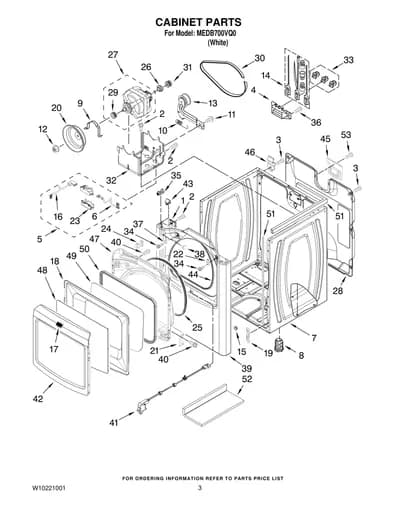

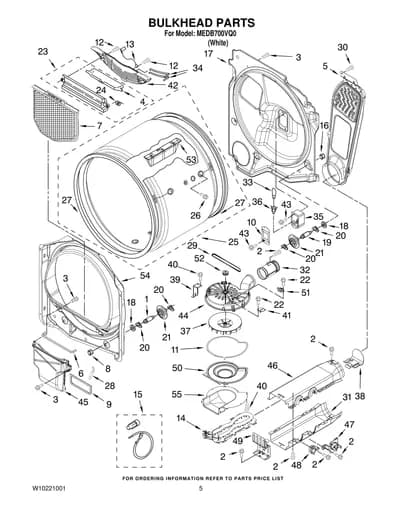

Parts Sections (4)
Diagram

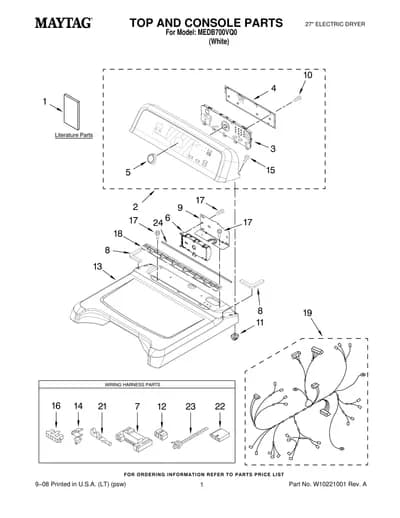

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10134980 Installation, Diagnostic Guide | - |
| 1 | – | W10200965 Performance Tip Sheet | - |
| 1 | – | W10201170 Guide, Quick Start | - |
| 1 | – | W10201174 Guide, Use & Care | - |
| 1 | – | W10156733 Tech, Sheet | - |
| 2 |  | W10110297NLA Panel, Console | Discontinued |
| 3 | – | W10051115 User Interface | - |
| 4 | | Cover, Rear | - |
| 5 |  | WPW10051126replaces W10051126 Knob Assembly | - |
| 6 | | W10111621NLA Control Electronic | Discontinued |
| 7 |  | Connector | $40.40 ApplianceParts Pro |
| 8 | – | W10180858 Foam−Top — Left−Side | - |
| 8 | | W10219694replaces W10180206 Foam−Top — Right−Side | $21.41 RepairClinic |
| 9 | | Bracket−Machine Controller | - |
| 10 |  | WP4449745replaces W10003770 Screw | - |
| 11 |  | Screw, Grommet (3) | - |
| 12 | | 3347243NLA Connector, 6−Circuit | Discontinued |
| 13 | | W10111848NLA Top (Includes Item. 8 ) | Discontinued |
| 14 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 15 |  | Screw (3) | - |
| 16 |  | Connector, Timer | - |
| 17 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 18 | – | W10110295 Bracket, Console | - |
| 19 |  | W10319798replaces W10111054 Harness, Electric | - |
| 21 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 22 |  | Connector | - |
| 23 |  | WP3391018replaces 3391018 Tie, Cable | - |
| 24 | – | W10216185 Seal, Foam | - |
