Model
Maytag MEDC700VW0
27" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MEDC700VW027" Electric Dryer
4 diagrams162 parts

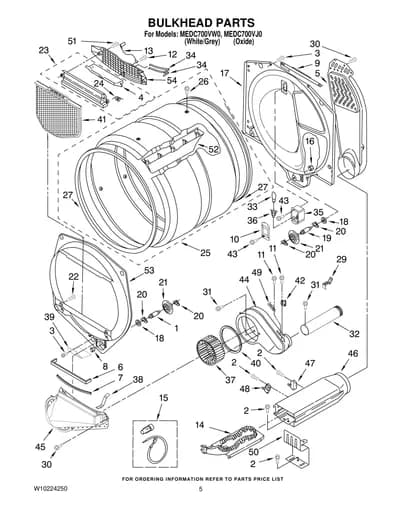

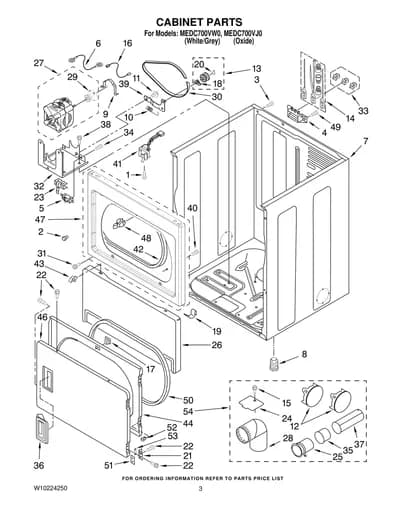

Parts Sections (4)
Diagram

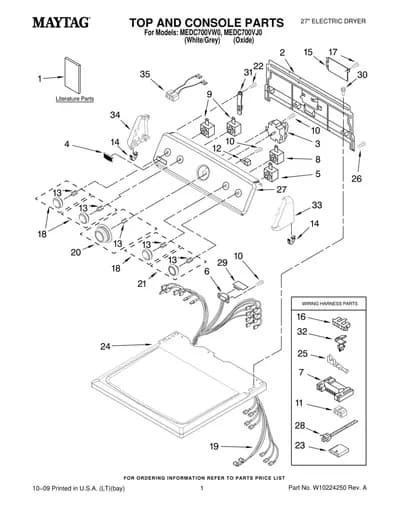

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10151000 Wiring Diagram | - |
| 1 | – | W10088973 Installation, Instruction | - |
| 1 | – | W10089180 Dryer Cycle Sheet | - |
| 1 | – | W10088780 Guide, Use & Care | - |
| 2 |  | 285909replaces 8317305 Panel, Rear Console | - |
| 3 |  | WP8566184replaces 8566184 Timer, 60 Hz. | $119.08 Part Advantage |
| 4 | | Badge Assembly — White | - |
| 4 | – | W10103431 Badge Assembly — Oxide | - |
| 5 |  | WP3398094replaces 3398094 Switch, Push−To−Start | $40.61 Part Advantage |
| 6 |  | Connector, Edge | - |
| 7 |  | Connector | $40.40 ApplianceParts Pro |
| 8 |  | WP8578352replaces 8578352 Switch, Rotary Temperature | $103.71 PartSelect |
| 9 |  | WP3405156replaces 3405156 Switch, Rotary | $69.95 ApplianceParts Pro |
| 10 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 11 | | 3347243NLA Connector, 6−Circuit | Discontinued |
| 12 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 13 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 14 |  | WP8312709replaces 8312709 Clip, Console | $7.96 Part Advantage |
| 15 |  | WPW10119283replaces 8576583 Cover, Terminal Block | - |
| 16 |  | Connector, Timer | - |
| 17 | | WP90767replaces 3390814 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 18 |  | WPW10180218replaces W10180218 Knob, Control (3) — White | - |
| 18 | | Knob, Control (3) — Oxide | - |
| 19 | | Harness, Electric | - |
| 20 |  | WPW10180219replaces W10180219 Knob, Timer Assembly — White | - |
| 20 |  | Knob, Timer Assembly — Oxide | - |
| 21 | | WPW10180220replaces W10180220 Knob Assembly Push−To−Start — White | - |
| 21 | | Knob Assembly Push−To−Start — Oxide | - |
| 22 | | WP90767replaces 90767 Screw, Ground | $2.30 Part Advantage |
| 23 |  | Connector | - |
| 24 | | Top — White | - |
| 24 | – | W10212718 Top — Oxide | - |
| 25 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 26 |  | WP693995replaces 693995 Screw, 8−18 x 3/8 | $1.73 Part Advantage |
| 27 | | W10086738NLA Console & Bracket Assembly (Includes Items. 4 & 14) — White | Discontinued |
| 27 | | Console & Bracket Assembly (Includes Items. 4 & 14) — Oxide | - |
| 28 |  | W10740218replaces 3391018 Tie, Cable | $146.39 Part Advantage |
| 29 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 30 |  | WP488729replaces 3390647 Screw, 8−18 1/2 | $2.41 Part Advantage |
| 31 |  | WP8568314replaces 8568314 Strap, Console | $9.57 ApplianceParts Pro |
| 32 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 33 |  | WPW10193821replaces W10193821 Cap, End (R.H.) — White | - |
| 33 | – | W10101397 Cap, End (R.H.) — Oxide | - |
| 34 |  | WPW10193824replaces W10193824 Cap, End (L.H.) — White | $37.79 Parts Dr |
| 34 | – | W10101398 Cap, End (L.H.) — Oxide | - |
| 35 | – | W10124166 Harness, Buzzer (On/Off) | - |
