Model
Maytag MEDZ600TK2
27" Electric Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MEDZ600TK227" Electric Dryer
5 diagrams163 parts
Parts Sections (5)

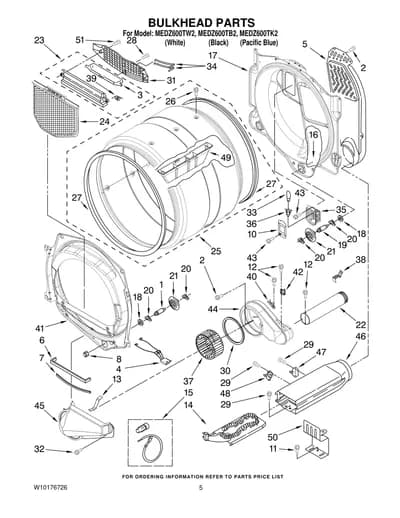

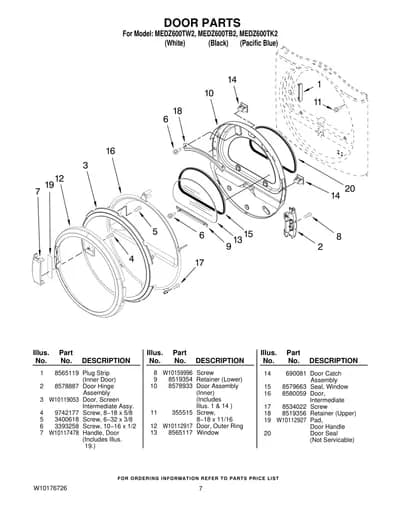

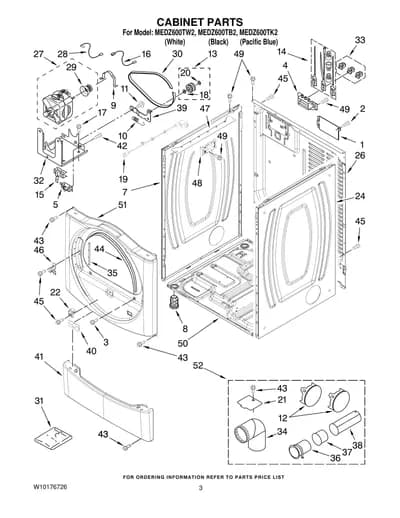

Diagram

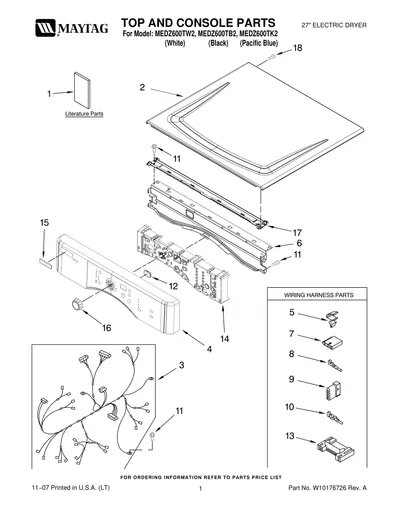

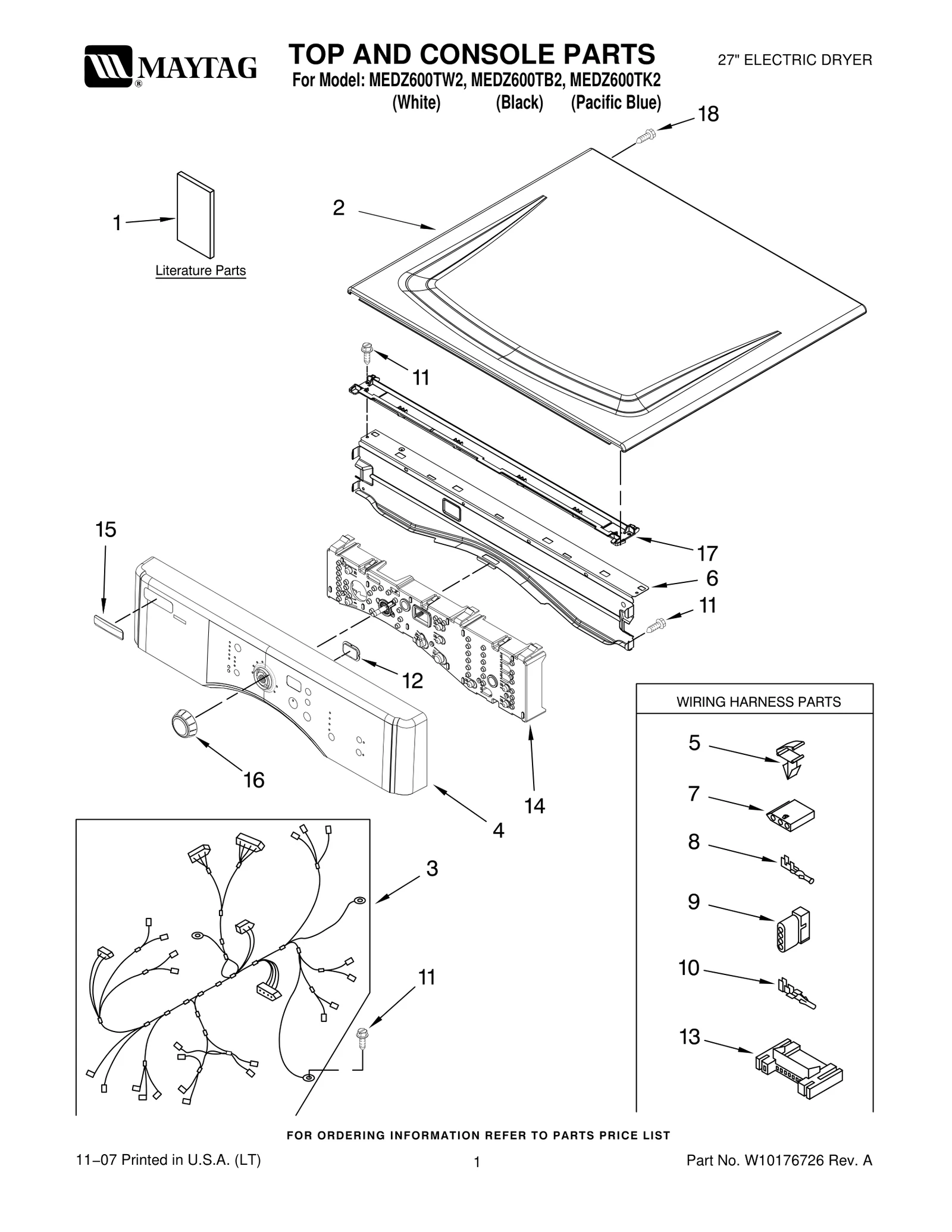

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10112937 Use & Care Guide | - |
| 1 | – | W10117402 Tech Sheet | - |
| 1 | – | W10117403 Guide, Quick Start | - |
| 2 |  | WPW10336080replaces 8563730 Top — White | $152.95 RepairClinic |
| 2 |  | W10129703NLA Top — Black | Discontinued |
| 2 | – | W10140767 Top — Pacific Blue | - |
| 3 | | Harness, Main | - |
| 4 | | W10117389NLA Panel, Console (Includes Illus. 15.) — White | Discontinued |
| 4 | | W10117393NLA Panel, Console (Includes Illus. 15.) — Black | Discontinued |
| 4 | | W10119034NLA Panel, Console (Includes Illus. 15.) — Pacific Blue | Discontinued |
| 5 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 6 |  | WP8565237replaces 8565237 Bracket, Console | $72.86 Part Advantage |
| 7 |  | Connector, Sensor | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 | | Lens, Display | - |
| 13 |  | Connector, | $40.40 ApplianceParts Pro |
| 14 | | W10117417NLA Assembly, User Interface | Discontinued |
| 15 |  | W10203949replaces W10112569 Badge | - |
| 16 |  | WPW10119050replaces W10119050 Knob, Assembly | - |
| 17 |  | WPW10266747replaces 8574968 Channel, Water | - |
| 18 | – | 3400238 Screw, 2−28 x 1/2 | - |
