Model
Maytag MERH865RAB13
30" Free Standing Electric Range Convection
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MERH865RAB1330" Free Standing Electric Range Convection
6 diagrams161 parts
Parts Sections (6)

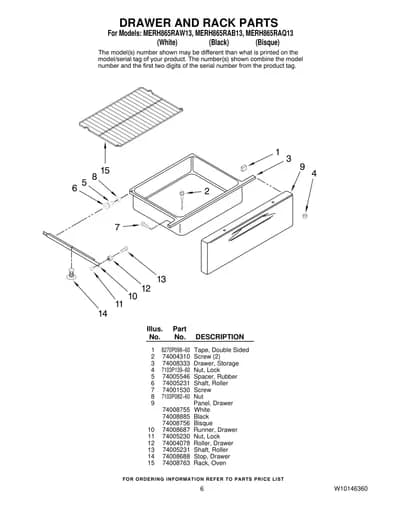

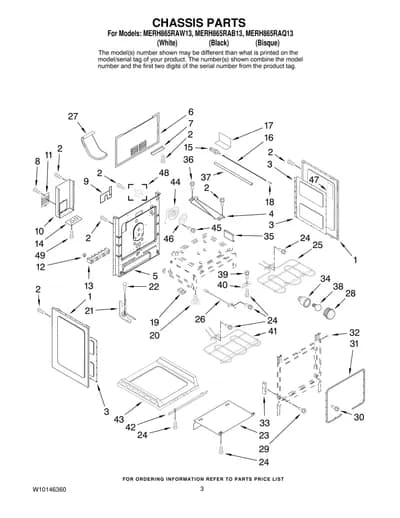

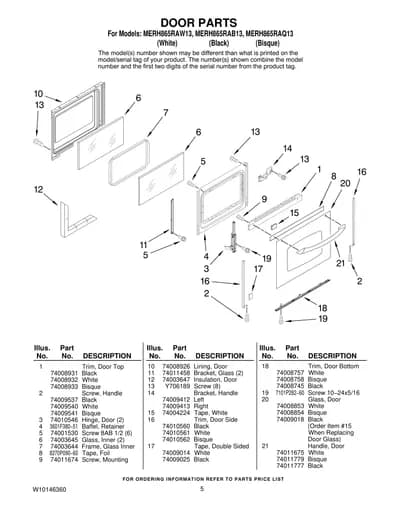

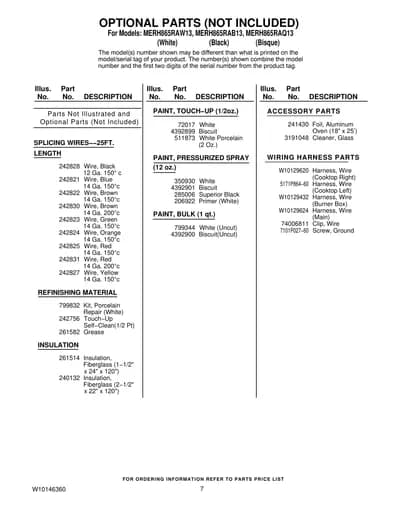

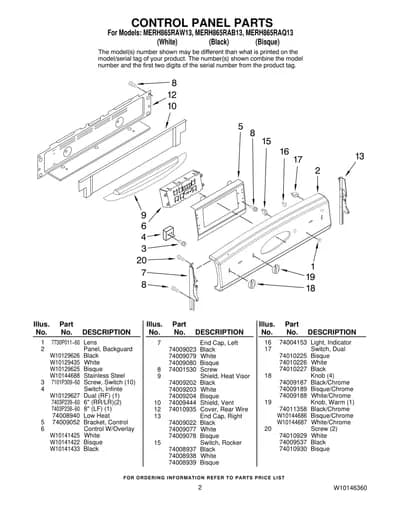

Diagram

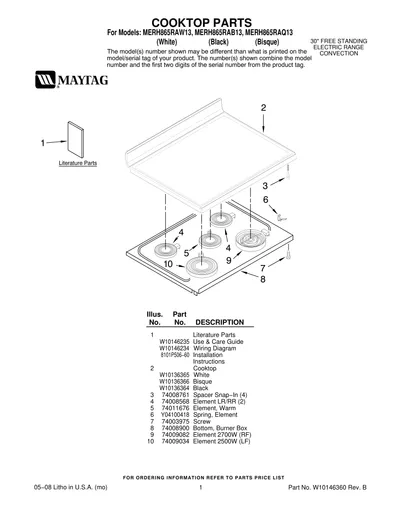

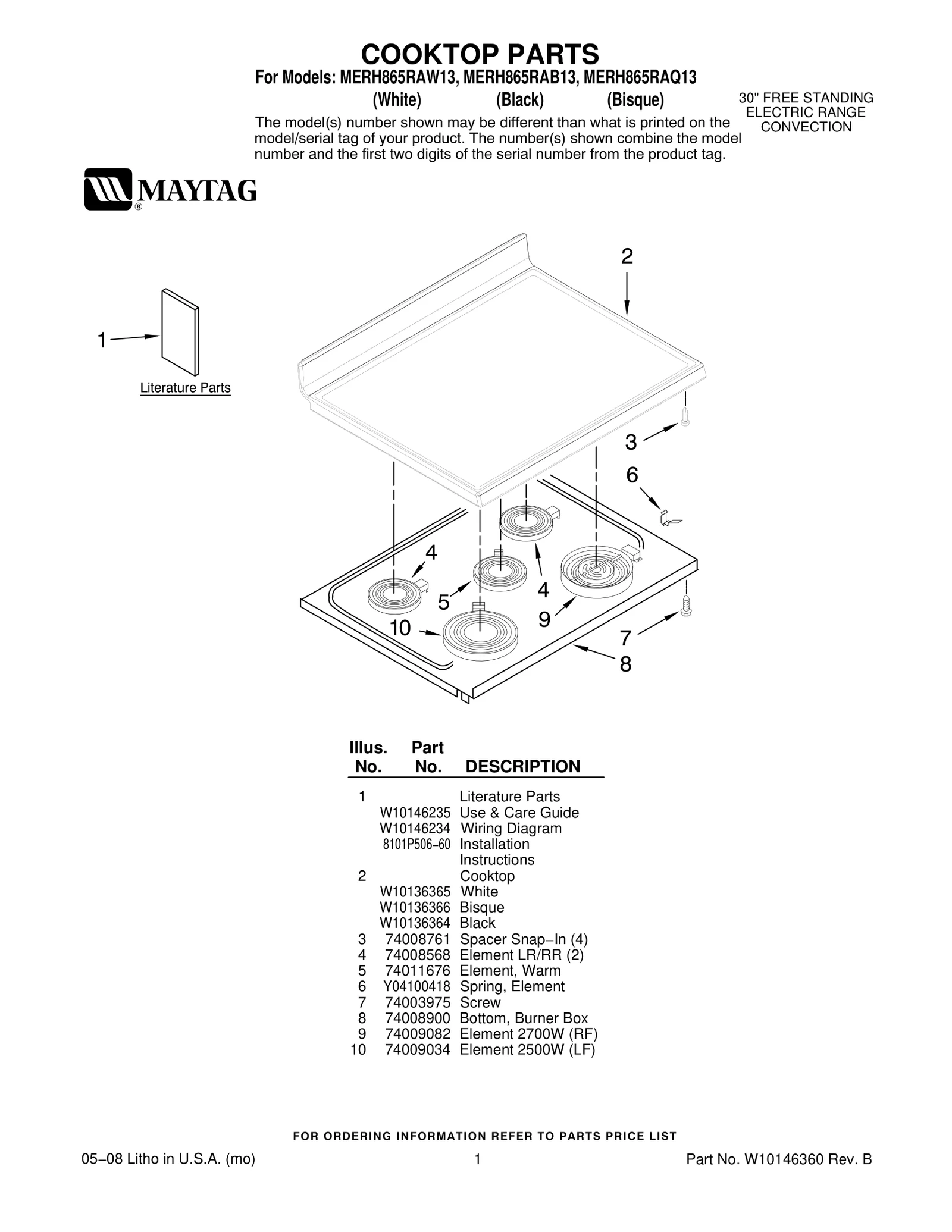

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10146235 Use & Care Guide | - |
| 1 | – | W10146234 Wiring Diagram 8101P506−60 Installation Instructions | - |
| 2 |  | W10136365NLA Cooktop — White | Discontinued |
| 2 | | W10136366NLA Cooktop — Bisque | Discontinued |
| 2 | | Cooktop — Black | - |
| 3 |  | Spacer Snap−In (4) | - |
| 4 |  | W10823711replaces 74008568 Element LR/RR (2) | $92.55 Part Advantage |
| 5 | | Element, Warm | - |
| 6 |  | 74007134replaces Y04100418 Spring, Element | $3.44 RepairClinic |
| 7 |  | Screw | $10.70 Parts Dr |
| 8 | – | 74008900 Bottom, Burner Box | - |
| 9 | | Element 2700W (RF) | Discontinued |
| 10 |  | W10823696replaces 74009034 Element 2500W (LF) | $87.70 Amazon |
