Model
Maytag MERH865RAW1
30" Free Standing Electric Range Convection
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MERH865RAW130" Free Standing Electric Range Convection
6 diagrams41 parts
Parts Sections (6)
Diagram

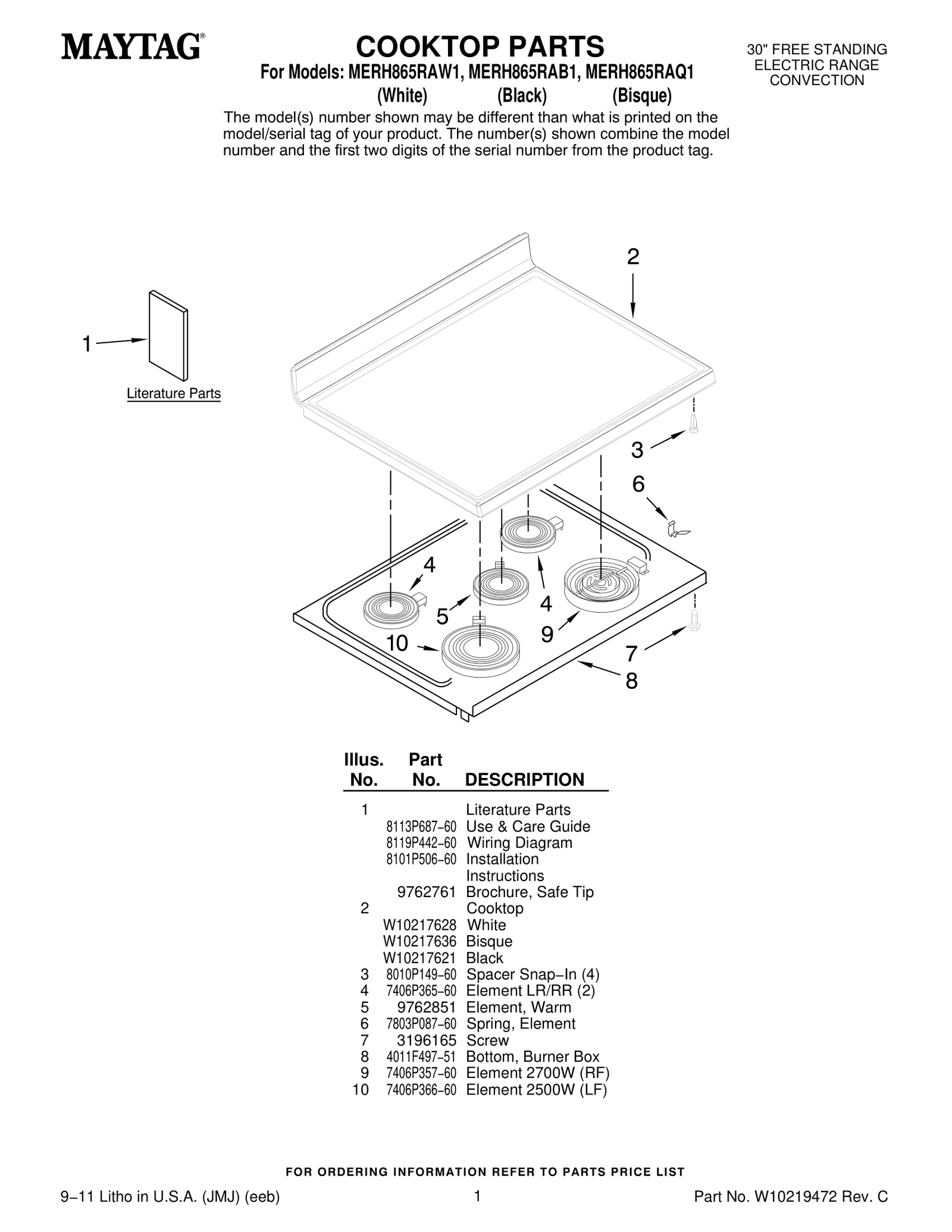

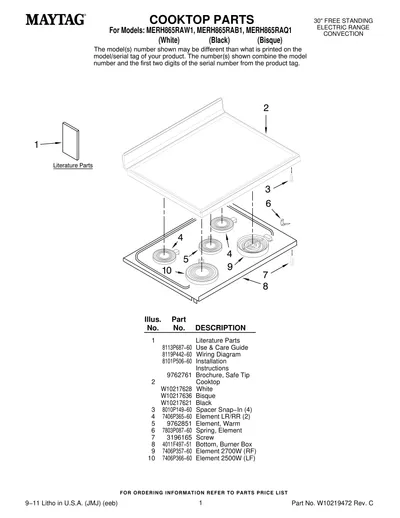

COOKTOP PARTS
Parts in COOKTOP PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762761 Brochure, Safe Tip | - |
| 2 | – | W10217628 Cooktop — White | - |
| 2 | – | W10217636 Cooktop — Bisque | - |
| 2 | – | W10217621 Cooktop — Black | - |
| 3 | – | N/S 8010P149−60 Spacer Snap−In (4) | - |
| 4 | – | N/S 7406P365−60 Element LR/RR (2) | - |
| 5 |  | WP9762851replaces 9762851 Element, Warm | - |
| 6 | – | N/S 7803P087−60 Spring, Element | - |
| 7 |  | WP3196175replaces 3196165 Screw | $2.30 Part Advantage |
| 8 | – | N/S 4011F497−51 Bottom, Burner Box | - |
| 9 | – | N/S 7406P357−60 Element 2700W (RF) | - |
| 10 | – | N/S 7406P366−60 Element 2500W (LF) | - |
