Model
Maytag MFW9700SB0
Automatic Washer
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MFW9700SB0Automatic Washer
7 diagrams183 parts

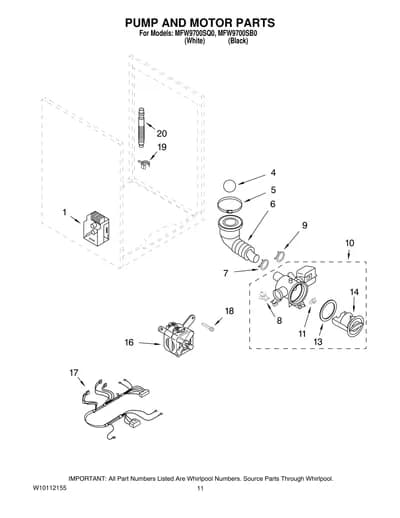

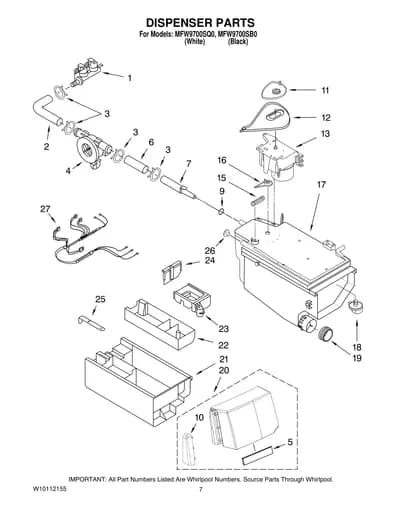

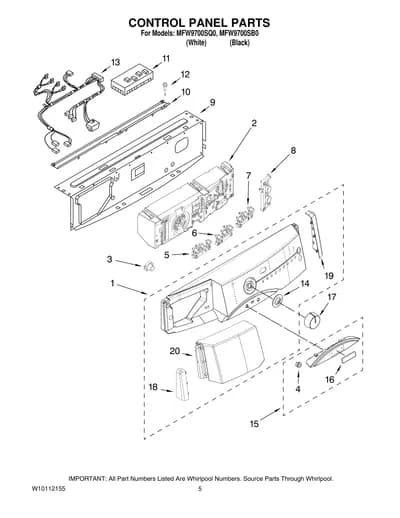

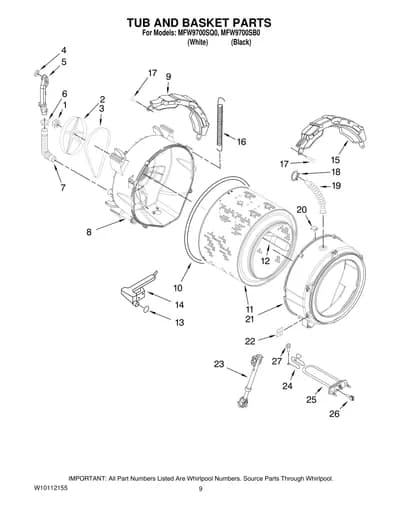

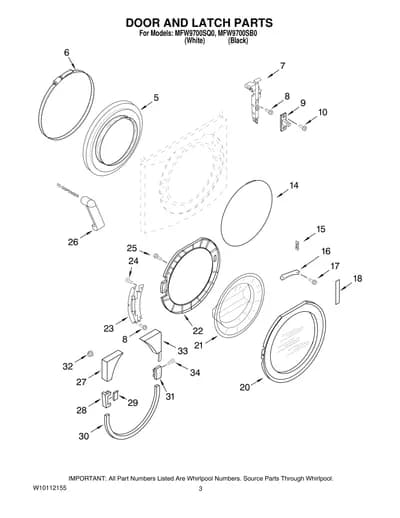

Parts Sections (7)
Diagram

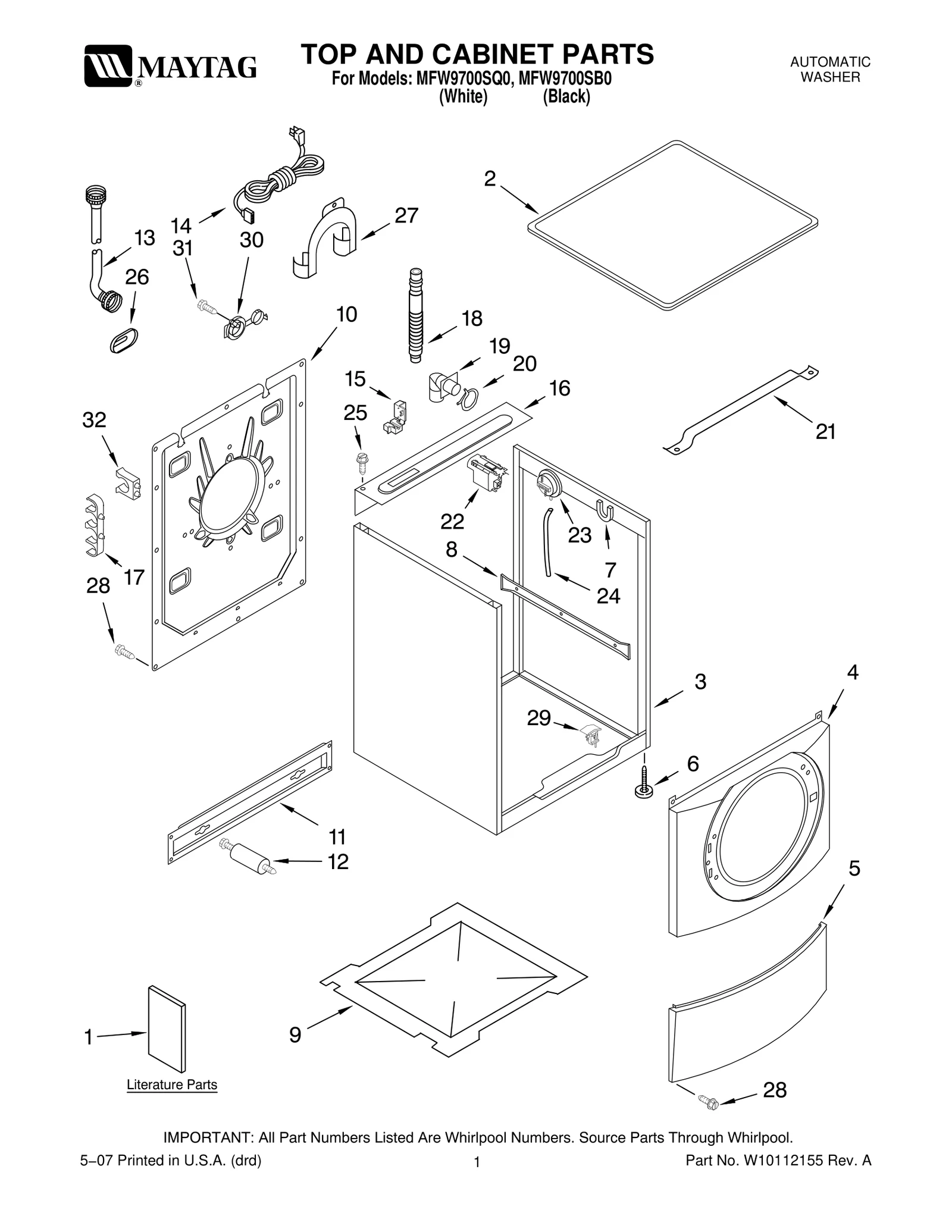

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8182969 Use & Care Guide | - |
| 1 | – | 8182658 Quick Start Guide | - |
| 1 | – | 8182208 Tech Sheet | - |
| 2 |  | Top — White | - |
| 2 | | Top — Black | - |
| 3 | | 8182609NLA Cabinet — White | Discontinued |
| 3 | – | 8183060 Cabinet — Black | - |
| 4 | | Panel, Front — White | - |
| 4 | | 8183062NLA Panel, Front — Black | Discontinued |
| 5 | | Toe Panel — White | - |
| 5 | | 8183063NLA Toe Panel — Black | Discontinued |
| 6 | | 8181636NLA Foot, Leveling | Discontinued |
| 7 |  | WP8181763replaces 8181763 Bracket, Spring | $50.57 ApplianceParts Pro |
| 8 | – | 8183008 Brace, Side Panel | - |
| 9 | | Pan, Bottom | - |
| 10 | | 8182698NLA Panel, Rear | Discontinued |
| 11 |  | WPW10003040replaces 8182661 Brace, Transport | - |
| 12 |  | W10289554Areplaces 8182797 Bolt, Shipping — Upper | $37.67 Part Advantage |
| 12 | | W10289554Areplaces 8182798 Bolt, Shipping — Lower | $37.67 Part Advantage |
| 13 |  | WP89503replaces 8182795 Hose, Water Inlet — Blue Coupler | $4.59 Part Advantage |
| 13 | | WP89503replaces 8182792 Hose, Water Inlet — Red Coupler | $4.59 Part Advantage |
| 14 |  | WP8183009replaces 8183009 Cord, Power | - |
| 15 |  | 8182635replaces 8181690 Strain Relief | - |
| 16 | | 8182607NLA Brace, Rear | Discontinued |
| 17 | | Clip, Drain Hose | - |
| 18 |  | WP8181737replaces 8181737 Hose, Drain | $29.33 Part Advantage |
| 19 | | W11757170replaces 8181738 Connector, Drain Hose | $3.50 Parts Dr |
| 20 |  | WP3367052replaces 8181752 Clamp, Hose | $5.00 Parts Dr |
| 21 | | Brace, Top | - |
| 22 |  | WPW10367632replaces 8183019 Filter, Interference | $42.47 Part Advantage |
| 23 |  | WPW10514214replaces 8181695 Switch, Pressure | $63.75 Part Advantage |
| 24 |  | WPW10004260replaces 8181739 Hose, Pressure Switch | $3.66 Part Advantage |
| 25 | | 8181691NLA Screw | Discontinued |
| 26 |  | WP8540268replaces 8182700 Cover, Transport | $5.00 RepairClinic |
| 27 |  | WPW10280024replaces 8181768 Storage, Hose | $31.82 Parts Dr |
| 28 |  | WP488729replaces 8181828 Screw | $2.41 Part Advantage |
| 29 |  | WPW10085220replaces 8182830 Microswitch (2) | $21.33 RepairClinic |
| 30 | | W11116978replaces 8182699 Grommet, Cord Support (2) | $15.24 ApplianceParts Pro |
| 31 |  | Screw, 3 x 8 mm | - |
| 32 | | Clip, Outer Hose Holder Following Parts Not Illustrated | - |
| 32 | | 8182109NLA Harness Channel | Discontinued |
