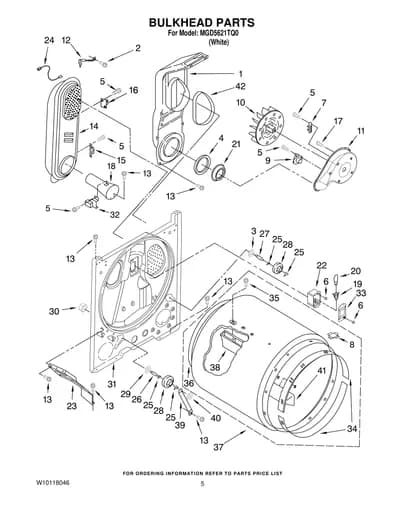

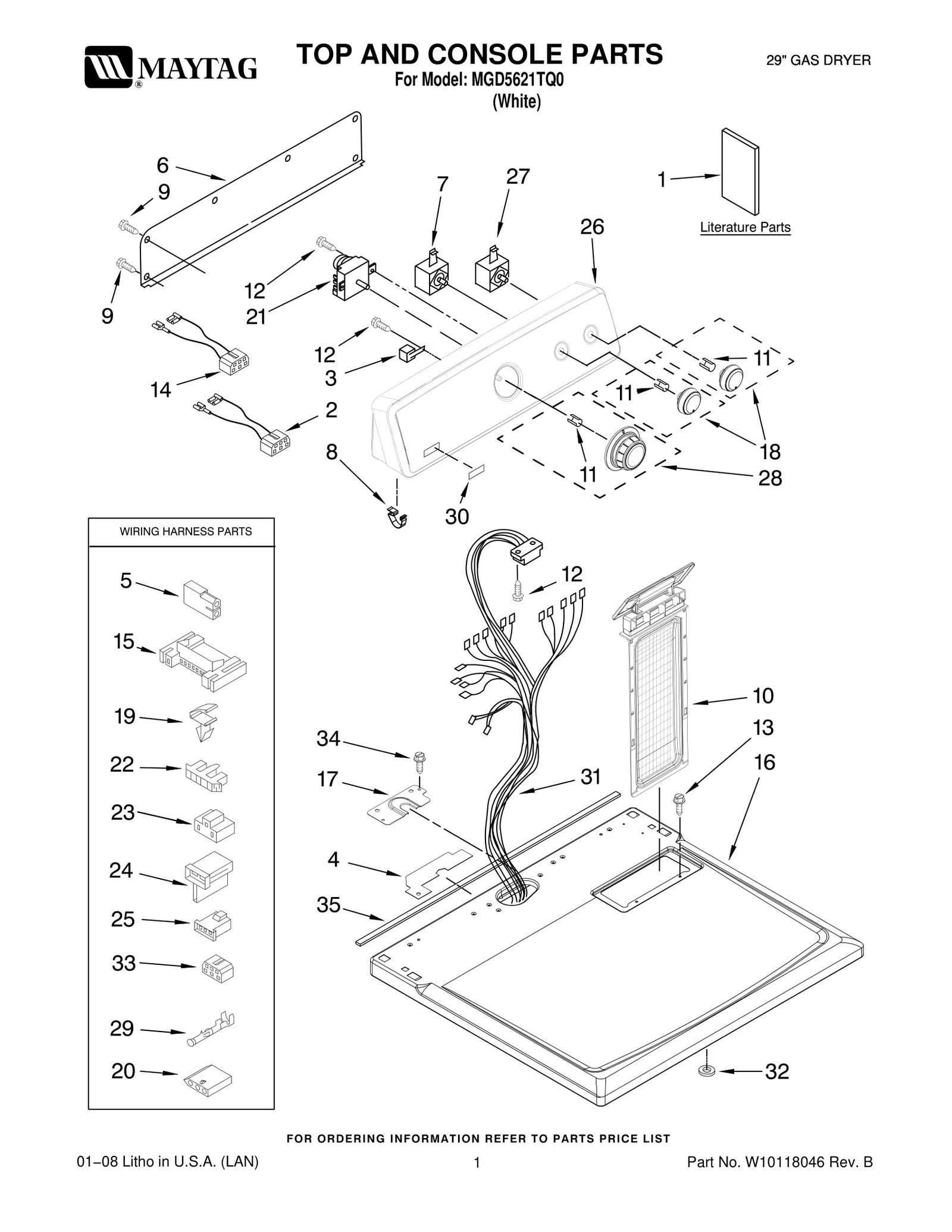

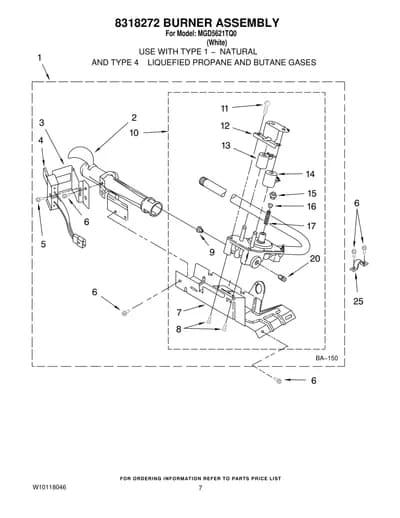

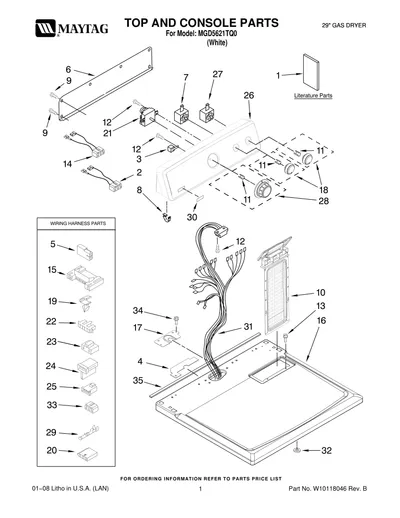

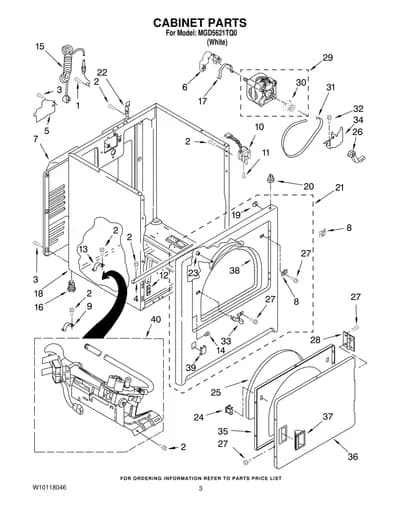

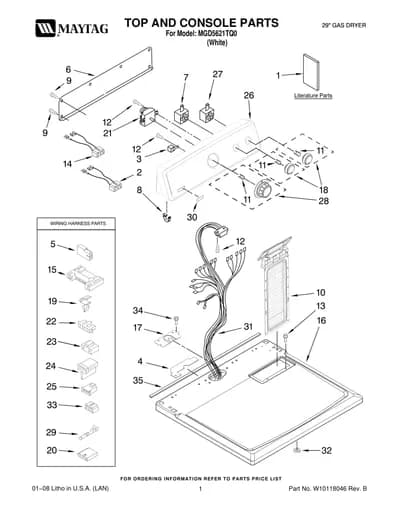

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10151609 Use & Care Guide — English | - |
| 1 | – | W10151610 Use & Care Guide — Spanish | - |
| 1 | – | 8576817 Use & Care Guide — Wiring Diagram | - |
| 1 | – | W10150652 Use & Care Guide — English | - |
| 1 | – | W10150653 Use & Care Guide — Spanish | - |
| 2 |  | Wire, Jumper Mini−Buzzer | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 | – | W10118608 Seal, Harness | - |
| 5 | | 717252NLA Plug, 2−Way Terminal | Discontinued |
| 6 | | Panel, Rear Console | - |
| 7 |  | WP3399640replaces 3399640 Switch, Temperature | $44.03 Part Advantage |
| 8 |  | WP8312709replaces 8312709 Clip−Console (2) | $7.96 Part Advantage |
| 9 |  | WP693995replaces 693995 Screw, Hex Washer Head | $1.73 Part Advantage |
| 10 |  | W11778253replaces 8565972 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 | – | W10113107 Wire, Jumper | - |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | – | W10112597 Top | - |
| 17 | – | 8565981 Bracket, Harness | - |
| 18 |  | WPW10110029replaces W10110029 Knob, Control (2) | $31.36 Part Advantage |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | Connector | - |
| 21 |  | WP8299765replaces 8299765 Timer Assembly | $169.20 Part Advantage |
| 22 |  | Connector−Timer | - |
| 23 |  | Connector, | - |
| 24 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 25 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 26 | – | W10086706 Console & Control Panel Assembly (Includes Item: 8 & 30) | - |
| 27 |  | WPW10117655replaces W10117655 Switch, Push−To−Start | $41.00 Part Advantage |
| 28 |  | Timer−Knob Assembly | Discontinued |
| 29 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 30 |  | W10203949replaces W10112569 Badge−Assembly | - |
| 31 | – | W10110866 Harness, Wiring | - |
| 32 | – | 237446 Washer (Top/Chute) | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | WP33001882replaces 337686 Screw, 8−18 x 7/16 | $27.07 ApplianceParts Pro |
| 35 |  | Foam Seal | - |
