Model
Maytag MGD5707TQ1
29" Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGD5707TQ129" Gas Dryer
5 diagrams155 parts
Parts Sections (5)

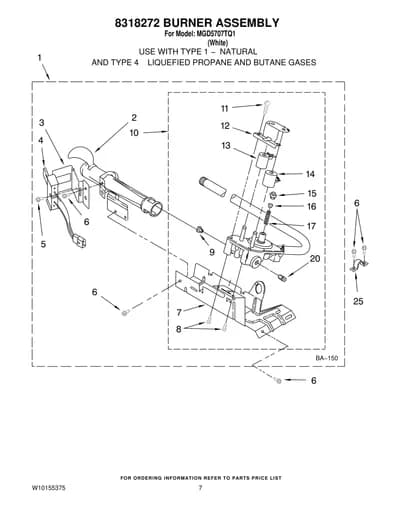

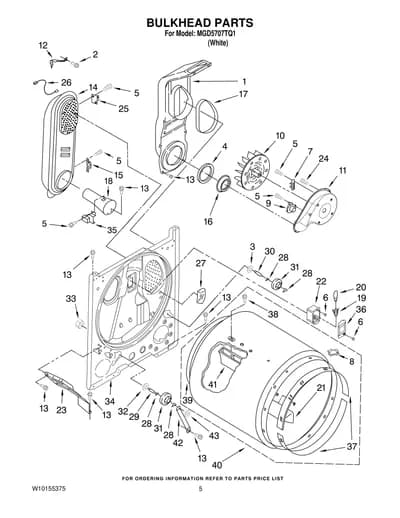

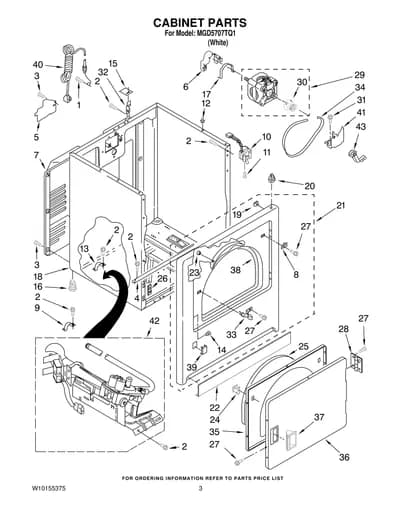

Diagram

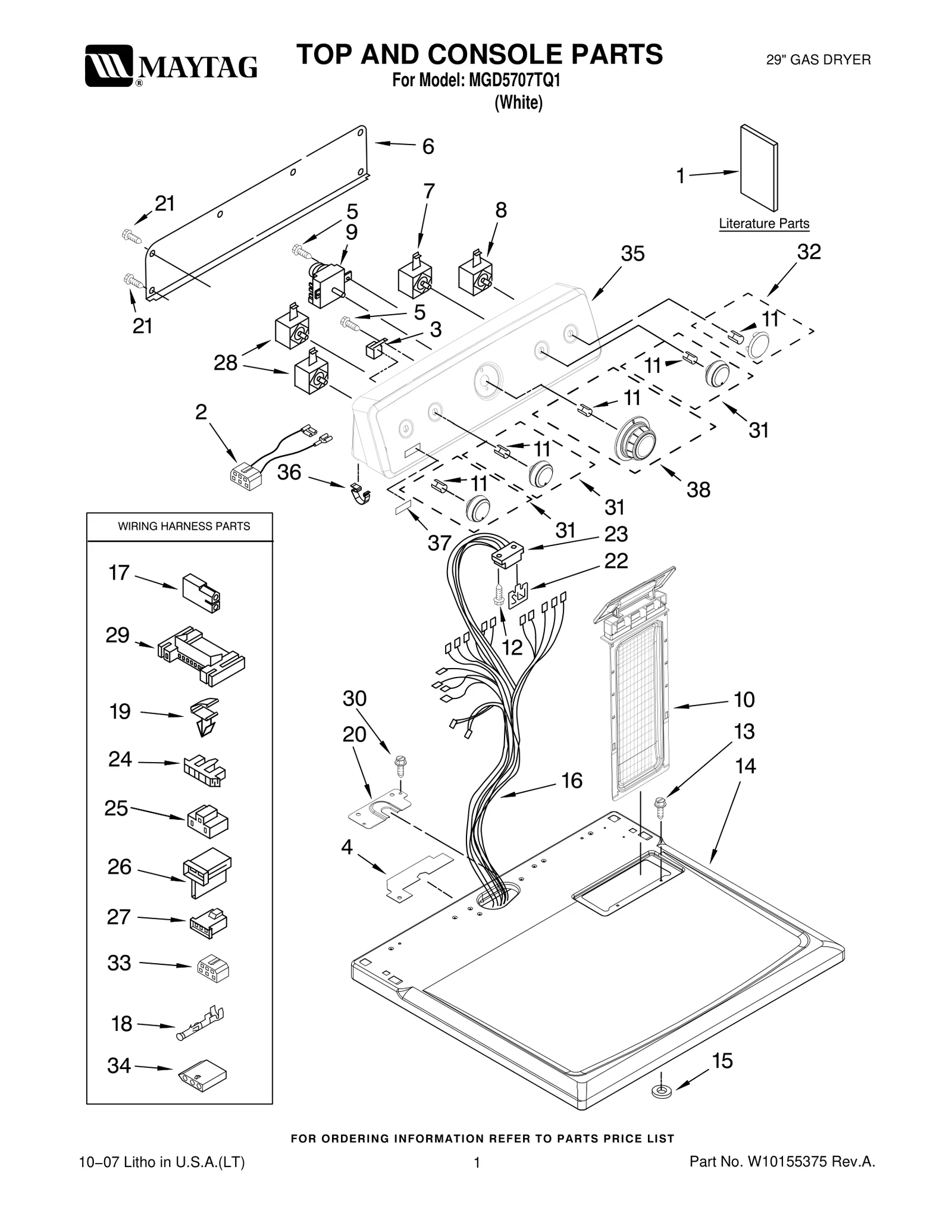

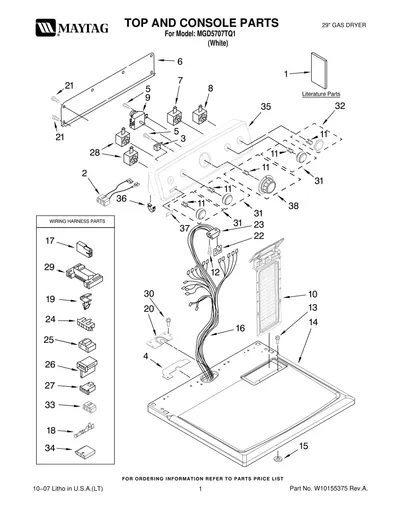

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10089177 Sheet, Cycle Feature | - |
| 1 | – | W10088775 Use & Care Guide | - |
| 1 | – | W10124167 Wiring Diagram | - |
| 2 | – | W10124166 Wire, Jumper | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 | – | W10112603 Seal−Harness | - |
| 5 |  | WP90767replaces 8533971 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 6 | – | W10112577 Panel, Rear Console | - |
| 7 |  | Switch, Temperature | - |
| 8 |  | WP3398094replaces 3398094 Switch, Push−To−Start | $40.61 Part Advantage |
| 9 |  | WP8566184replaces 8566184 Timer Assembly 60 HZ. | $119.08 Part Advantage |
| 10 |  | W11778253replaces 8565972 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | W11693756replaces 359625 Screw, 8−18 x 1/2 | $9.83 Parts Dr |
| 13 | | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | W10112599NLA Top | Discontinued |
| 15 | – | 237446 Washer (Top/chute) | - |
| 16 | – | W10111000 Harness, Wiring | - |
| 17 | | 717252NLA Plug, 2−way | Discontinued |
| 18 |  | WP94614replaces 94614 Terminal Female | $4.95 ApplianceParts Pro |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 | – | W10112578 Bracket−Harness | - |
| 21 |  | WP489069replaces 693995 Screw, Hex Washer Head | $2.30 Part Advantage |
| 22 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 23 |  | Connector, Edge | - |
| 24 |  | Connector−Timer | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 |  | WP3405156replaces 3405156 Switch Rotary | $69.95 ApplianceParts Pro |
| 29 |  | Connector, Motor | $40.40 ApplianceParts Pro |
| 30 |  | WP33001882replaces 337686 Screw, 8−18 x 3/4 | $27.07 ApplianceParts Pro |
| 31 | | Knob, Control (3) | - |
| 32 | | Knob, Push−To−Start | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | Connector | - |
| 35 | | Console & Control Panel Assembly (Includes: Item: 36 & 37.) | - |
| 36 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 37 | – | W10112588 Badge Assembly | - |
| 38 |  | Knob, Timer Assembly | - |
