Model
Maytag MGD5840TW0
29" Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGD5840TW029" Gas Dryer
5 diagrams151 parts

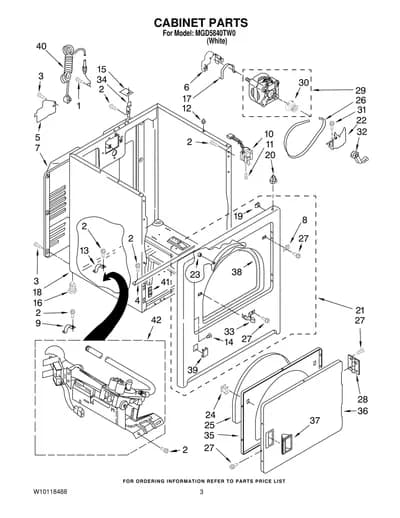

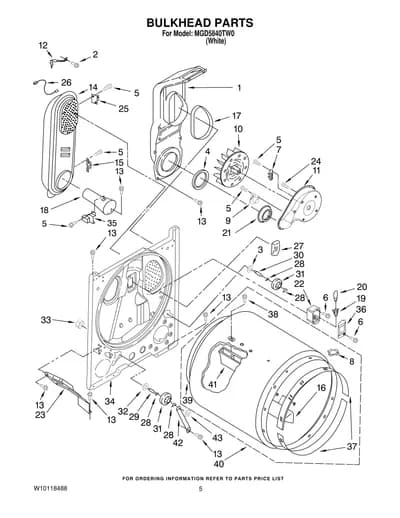

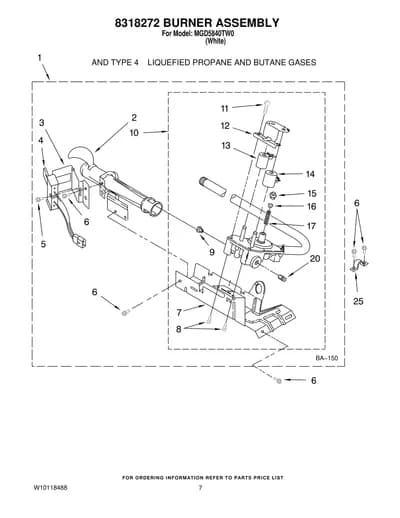

Parts Sections (5)
Diagram

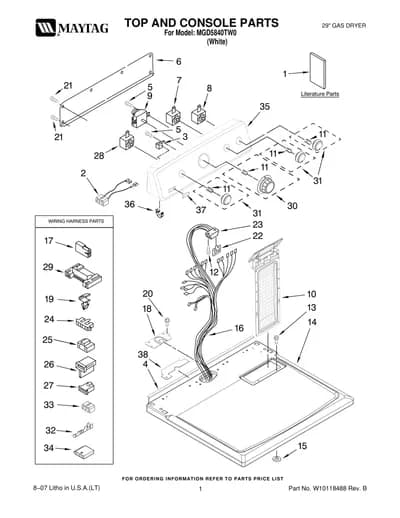

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10089171 Sheet, Cycle Feature | - |
| 1 | – | W10088775 Use & Care Guide | - |
| 1 | – | 3406668 Wiring Diagram | - |
| 2 |  | Wire, Jumper | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 |  | Foam−Seal Console Bracket | - |
| 5 |  | WP90767replaces 8533971 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 6 | | Panel, Rear Console | - |
| 7 |  | W11106324replaces 3405155 Switch, Temperature | $88.33 Parts Dr |
| 8 |  | WPW10117655replaces W10117655 Switch, Push−To−Start | $41.00 Part Advantage |
| 9 |  | WP3406725replaces 3406725 Timer Assembly 60 HZ. | $137.04 Part Advantage |
| 10 |  | W11778253replaces 8565972 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | W11693756replaces 359625 Screw, 8−18 x 1/2 | $9.83 Parts Dr |
| 13 | | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 | | W10112599NLA Top | Discontinued |
| 15 | – | 237446 Washer (Top/chute) | - |
| 16 | – | W10113073 Harness, Wiring | - |
| 17 | | 717252NLA Plug, 2−way | Discontinued |
| 18 | – | 8565981 Bracket−Harness | - |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | WP33001882replaces 337686 Screw, 8−18 x 3/4 | $27.07 ApplianceParts Pro |
| 21 |  | WP489069replaces 693995 Screw, Hex Washer Head | $2.30 Part Advantage |
| 22 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 23 |  | Connector, Edge | - |
| 24 |  | Connector−Timer | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 |  | Switch Rotary | $37.20 RepairClinic |
| 29 |  | Connector, Motor | $40.40 ApplianceParts Pro |
| 30 |  | WPW10110036replaces W10110036 Timer Knob Assembly | $40.05 Parts Dr |
| 31 |  | WPW10110035replaces W10110035 Control Knob (3) | $45.24 ApplianceParts Pro |
| 32 |  | WP94614replaces 94614 Terminal Female | $4.95 ApplianceParts Pro |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | Connector | - |
| 35 | | Console & Control Panel Assembly (Includes Item 36 & 37) | - |
| 36 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 37 |  | W10203949replaces W10112569 Badge Assembly | - |
| 38 | – | W10118608 Seal, Harness | - |
