Model
Maytag MGD5900TW0
29"Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MGD5900TW029"Gas Dryer
5 diagrams156 parts

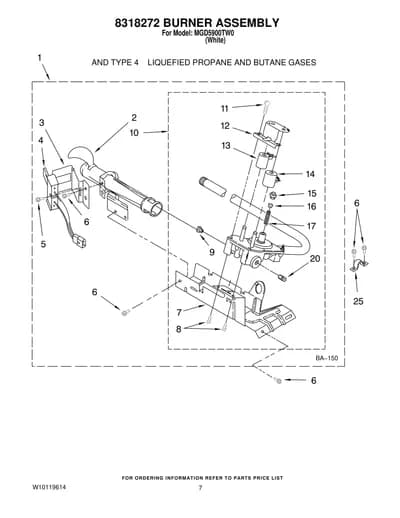

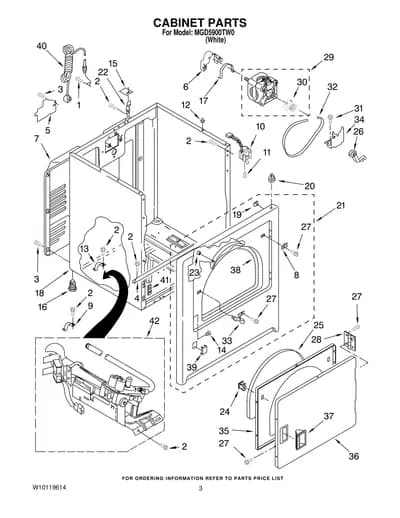

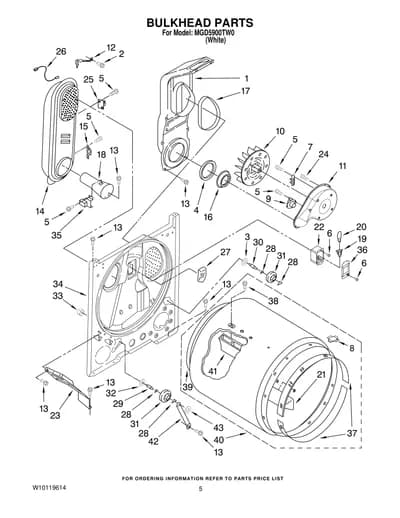

Parts Sections (5)
Diagram

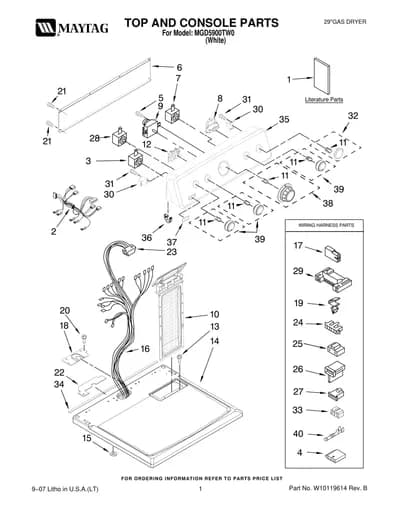

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10112989 Sheet, Cycle Feature | - |
| 1 | – | W10088775 Use & Care Guide | - |
| 1 | – | W10089172 Dryer, Cycle Sheet | - |
| 2 | – | W10111088 Harness, Center Control | - |
| 3 |  | Switch, End of Cycle | - |
| 4 |  | Connector | - |
| 5 |  | WP90767replaces 8533971 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 6 |  | Panel, Rear Console | - |
| 7 |  | Switch, Temperature | - |
| 8 | | Switch, Push−To−Start | - |
| 9 |  | WP8299771replaces 8299771 Timer Assembly 60 HZ. | $114.34 Part Advantage |
| 10 |  | W11778253replaces 8565972 Screen, Lint — White | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 | | W10111812NLA Control−Assembly | Discontinued |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 | | W10112599NLA Top | Discontinued |
| 15 | – | 237446 Washer (Top/chute) | - |
| 16 | – | W10110878 Harness, Wiring | - |
| 17 | | 717252NLA Plug, 2−way | Discontinued |
| 18 | – | 8565981 Bracket−Harness | - |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | WP33001882replaces 337686 Screw, 8−18 x 3/4 | $27.07 ApplianceParts Pro |
| 21 |  | WP693995replaces 693995 Screw, Hex | $1.73 Part Advantage |
| 22 | – | W10118608 Seal−Harness Washer Head | - |
| 23 |  | Connector, Edge | - |
| 24 |  | Connector−Timer | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 |  | Switch, Wrinkle Gaurd | - |
| 29 |  | Connector, Motor | $40.40 ApplianceParts Pro |
| 30 |  | WP3405281replaces 3405281 Power Relay | $17.66 Part Advantage |
| 31 |  | WP3388228replaces 3388228 Screw, 6−20 x 1/32 | $2.30 Part Advantage |
| 32 | – | W10110037 Knob, Push−To−Start | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | Foam Seal Console Bracket | - |
| 35 | | Console & Control Panel Assembly (Includes Items. 36 & 37) | - |
| 36 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 37 |  | W10203949replaces W10112569 Badge Assembly | - |
| 38 |  | WPW10110036replaces W10110036 Timer Knob Assembly | $40.05 Parts Dr |
| 39 |  | WPW10110035replaces W10110035 Knob, Control (3) | $45.24 ApplianceParts Pro |
| 40 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
